ITT Cannon, Trident Female Connector Housing, 5.08mm Pitch, 36 Way, 4 Row
- RS Stock No.:
- 475-410
- Mfr. Part No.:
- TST36RA00 / 192923-6050
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 pack of 10 units)*
£74.83
(exc. VAT)
£89.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 60 unit(s) shipping from 22 October 2025
- Plus 30 unit(s) shipping from 29 October 2025
- Plus 180 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 190 | £7.483 | £74.83 |
| 200 - 390 | £6.735 | £67.35 |
| 400 + | £6.061 | £60.61 |
*price indicative
- RS Stock No.:
- 475-410
- Mfr. Part No.:
- TST36RA00 / 192923-6050
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Number of Contacts | 36 | |
| Number of Rows | 4 | |
| Pitch | 5.08mm | |
| Gender | Female | |
| Series | Trident | |
| For Use With | Cannon Trident Connector | |
| Body Orientation | Straight | |
| Length | 29mm | |
| Width | 54.2mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Number of Contacts 36 | ||
Number of Rows 4 | ||
Pitch 5.08mm | ||
Gender Female | ||
Series Trident | ||
For Use With Cannon Trident Connector | ||
Body Orientation Straight | ||
Length 29mm | ||
Width 54.2mm | ||
Housing Material Nylon | ||
Panel shells type B
ITT Canon's Trident Snap Together Connectors are a series of moulded latches and connectors for cost-effective installation. Type B panel shells directly correspond with their Type A counterparts, for a straight-forward and easy to use connection system. Trident Snap Together Connectors are available in 2 to 32 way variants.
QM Range Plastic Rectangular

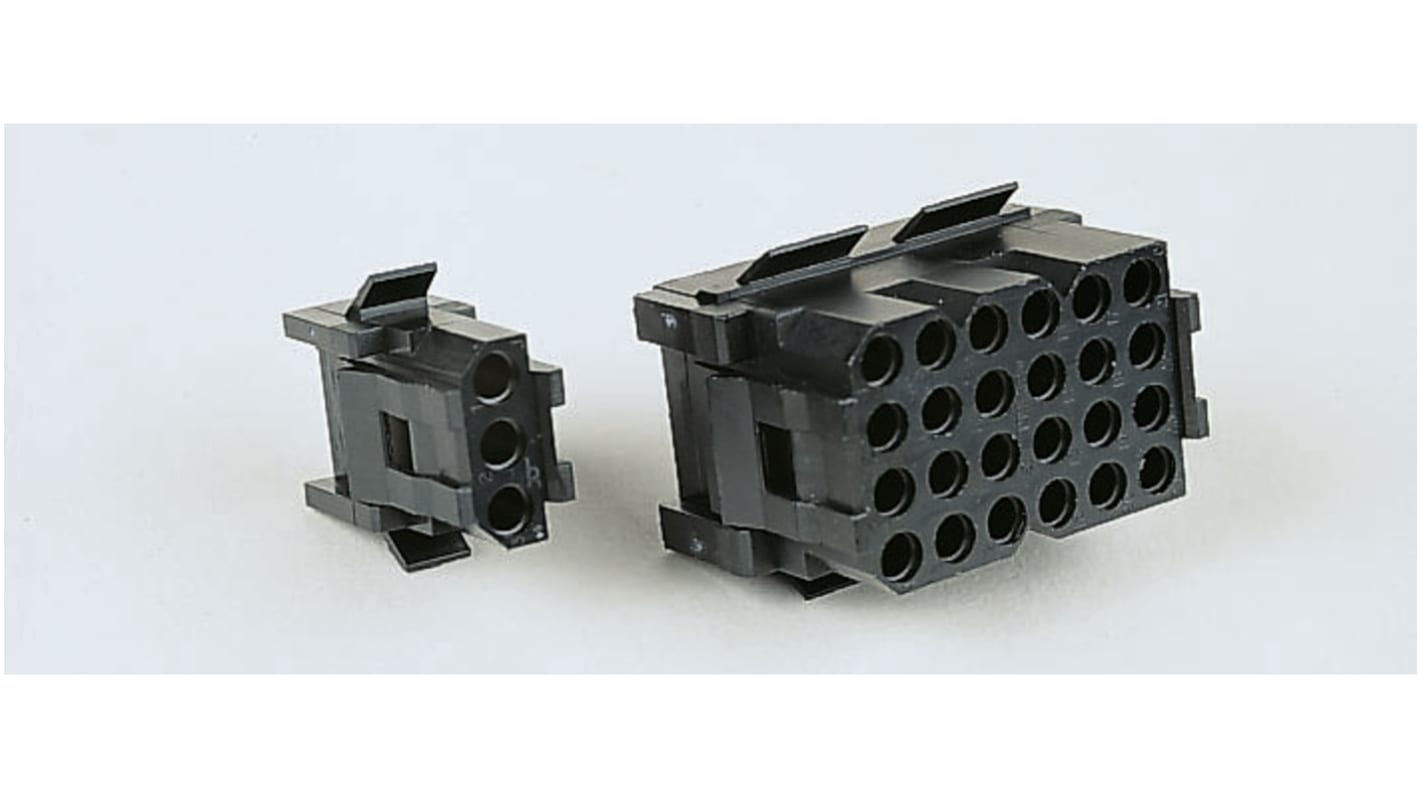

Connector shells in nylon, with type A and type B locking together and are shaped to ensure correct orientation before engagement. Type A is cable mounting. Type B, whilst basically snap-in chassis mounting, may also be cable mounted if an in-line connection is required. Both will accept pin or socket inserts, which fit easily into the shells without the use of special tools. The inserts may be soldered or crimped and are available in three wire entry sizes.,Use hole cutter stock no. 543-709 for 24 way. Contacts must be ordered separately - see Range 'Contacts and Tooling.' (for example Crimp Single Piece Contact 466-804 Solder Cup Contact 329-8660 Crimp Tool 531-403)
