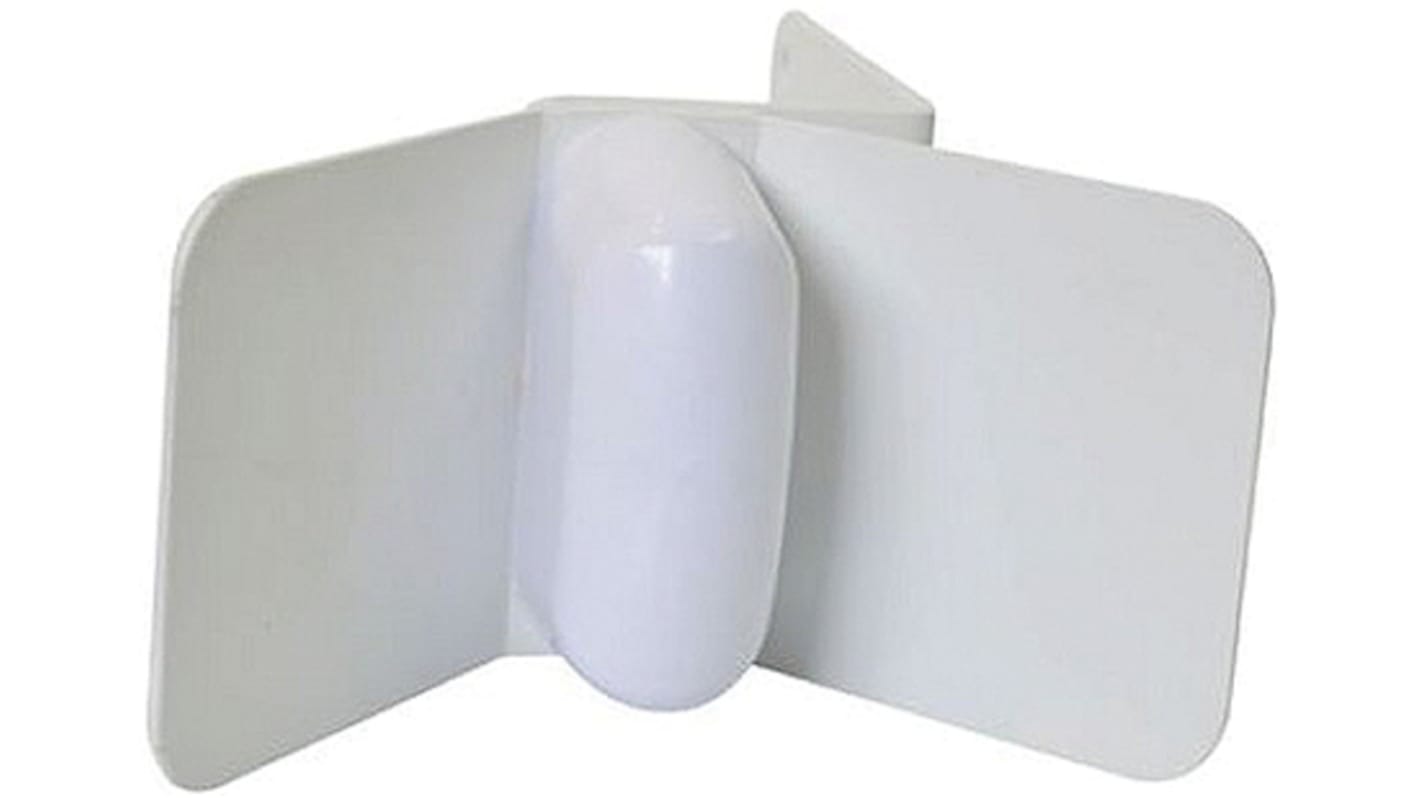

Mobilemark SCR-2400/5500-WHT WiFi Antenna with N Type Connector, WiFi (Dual Band)

Image representative of range

View all WiFi Antennas
Bulk discount available

Subtotal (1 unit)*

£143.06

(exc. VAT)

£171.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£143.06
5 - 9£130.04
10 +£119.17

*price indicative

RS Stock No.:
793-2068
Mfr. Part No.:
SCR-2400/5500-WHT
Brand:
Mobilemark
Find similar products by selecting one or more attributes.
Select all

Brand

Mobilemark

RF Protocols

WiFi (Dual Band)

Internal/External

External

Frequency Range

2.4 GHz, 5 GHz

Antenna Mounting Type

Wall/Pole

Connector Type

N Type

Gain

9dBi

Connector Gender

Female

Antenna Directivity

Omnidirectional

Series

SCR Corner Reflector

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
GB

Antenna - WiFi,Corner Reflector


Mobile Mark’s SCR series WiFi directional Corner Reflector antennas have point-to-point and point-to-multipoint coverage. The antenna offers high performance gain with no effect on the bandwidth. Consisting of a half-wave element and a split balun feed design. The dual band SCR-2400/5500-WHT corner reflector can also be used for public safety at 4.9 GHz. Easy to use and works on heavy duty applications including surveillance/mesh networks and remote monitoring.

SCR-2400/5500-WHT: 9 dBi ; 2.4-2.5 GHz and 12 dBi ; 4.9-6 GHz
SCR10-5250-WHT: 10 dBi ; 5.15-5.35 GHz

VSWR: 2:1 max over band

SCR10-5250, SCR-2400/5500: Compact dimensions
· Aperture 76 mm x 140 mm
· Panel Size 76 mm x 76 mm
· Weight 0.5 kg

Note

Horizontal and vertical mounting of the antenna via the mounting bracket supplied.
