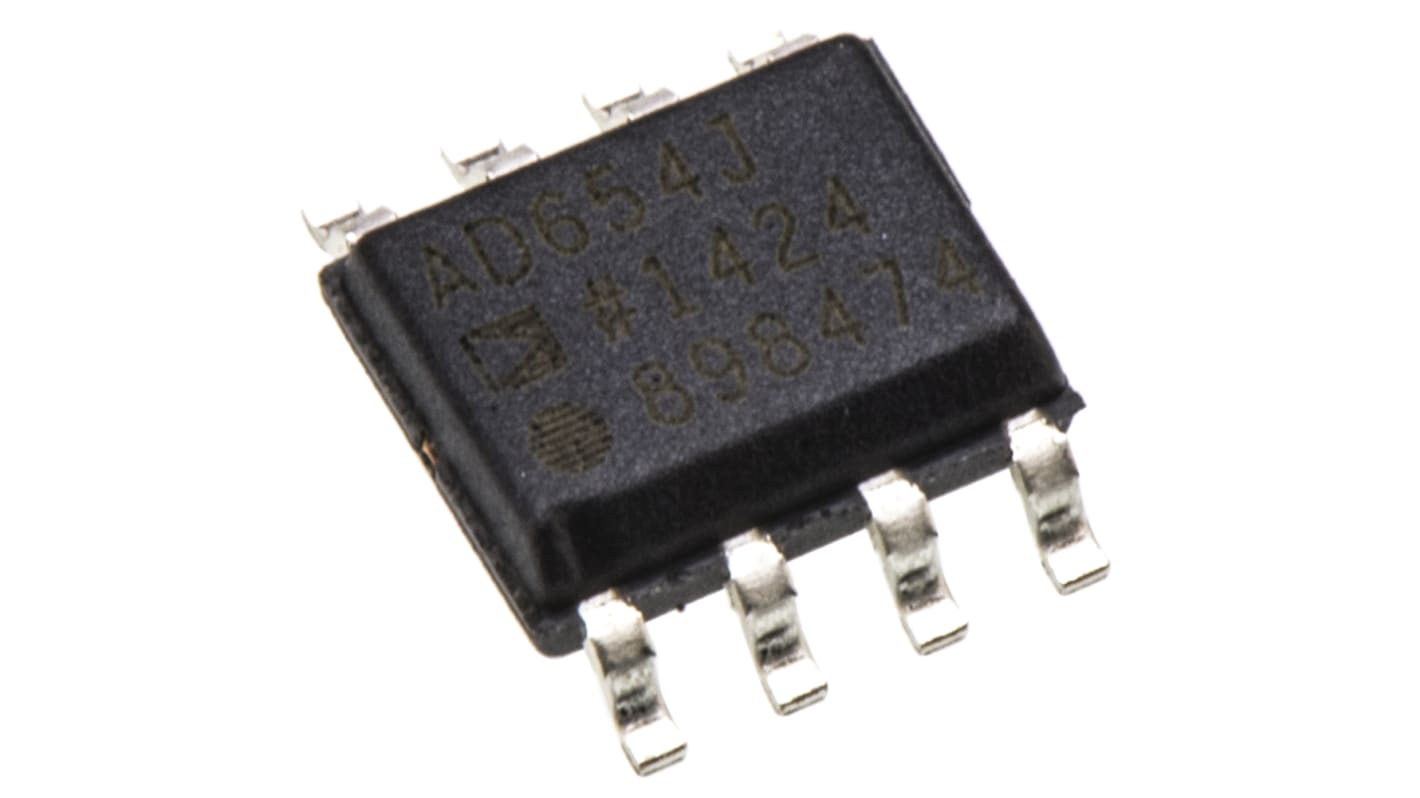

AD654JRZ, Voltage to Frequency Converter, Non-Synchronous, 500kHz ±0.4%FSR, 8-Pin SOIC
- RS Stock No.:
- 522-8225P
- Mfr. Part No.:
- AD654JRZ
- Brand:
- Analog Devices
Bulk discount available
Subtotal 10 units (supplied in a tube)*
£120.80
(exc. VAT)
£145.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 31 unit(s), ready to ship
Units | Per unit |
|---|---|
| 10 - 24 | £12.08 |
| 25 - 49 | £11.58 |
| 50 - 99 | £11.23 |
| 100 + | £9.67 |
*price indicative
- RS Stock No.:
- 522-8225P
- Mfr. Part No.:
- AD654JRZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Converter Function | VFC | |
| Converter Type | Non-Synchronous | |
| Full Scale Frequency | 500kHz | |
| Linearity Error | ±0.4%FSR | |
| Power Supply Type | Dual, Single | |
| Typical Single Supply Voltage | 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V | |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±9 V | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Dimensions | 5 x 4 x 1.5mm | |
| Height | 1.5mm | |
| Length | 5mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Converter Function VFC | ||
Converter Type Non-Synchronous | ||
Full Scale Frequency 500kHz | ||
Linearity Error ±0.4%FSR | ||
Power Supply Type Dual, Single | ||
Typical Single Supply Voltage 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V | ||
Typical Dual Supply Voltage ±12 V, ±15 V, ±9 V | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 8 | ||
Dimensions 5 x 4 x 1.5mm | ||
Height 1.5mm | ||
Length 5mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 4mm | ||
Voltage/Frequency Converters, Analog Devices
This economic Voltage to Frequency converter has minimal power supply requirements while offering a broad Full-Scale Frequency range. With excellent temperature characteristics and stability.
