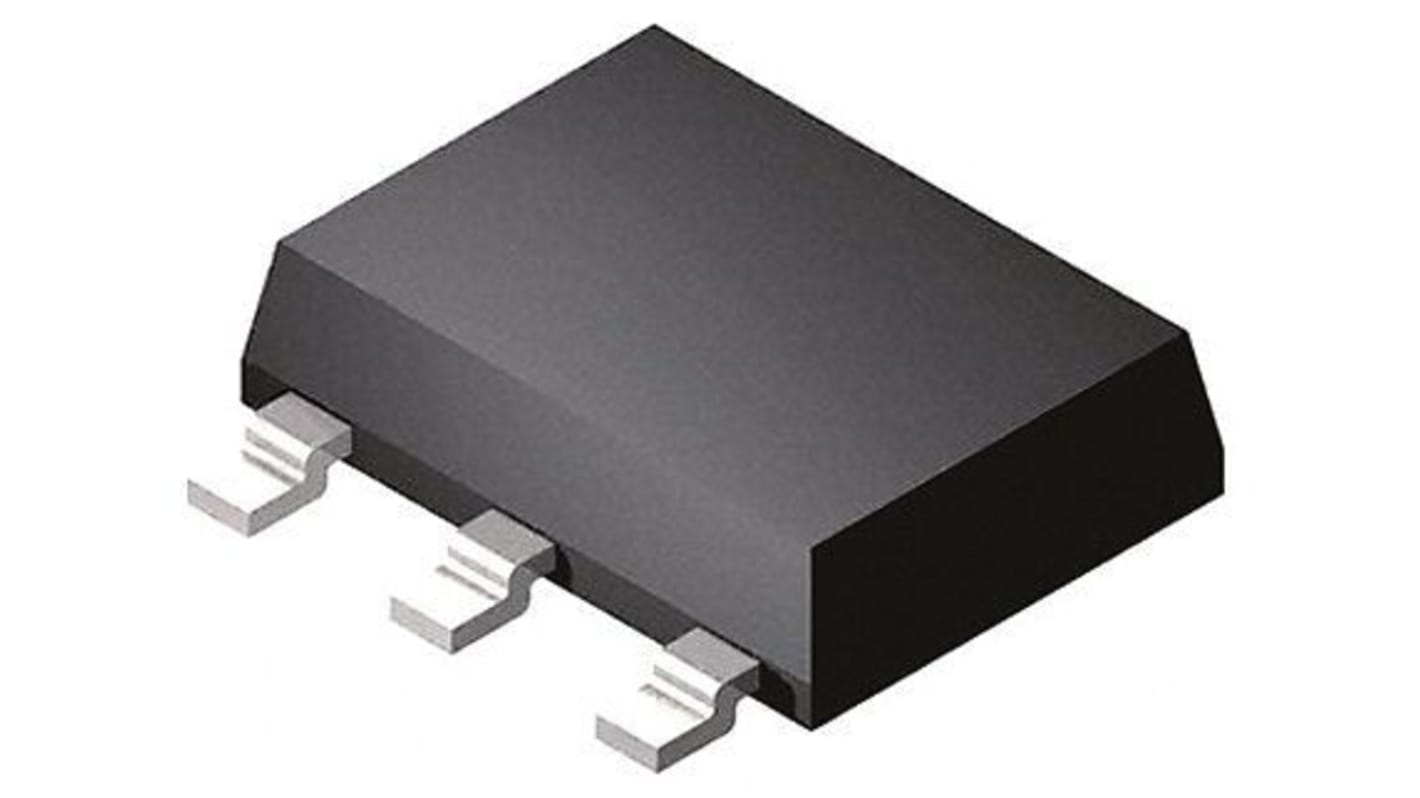

Microchip MCP1703T-3302E/DB, 1 Low Dropout Voltage, Voltage Regulator 200mA, 3.3 V 3+Tab-Pin, SOT-223

RS Stock No.:: 911-5530
Mfr. Part No.:: MCP1703T-3302E/DB
Brand:: Microchip

Microchip MCP1703T-3302E/DB, 1 Low Dropout Voltage, Voltage Regulator 200mA, 3.3 V 3+Tab-Pin, SOT-223

Available to back order for despatch 18/06/2024

Price Each (On a Reel of 4000)

£0.504

(exc. VAT)

£0.605

(inc. VAT)

Units	Per unit	Per Reel*
4000 +	£0.504	£2,016.00
*price indicative

RS Stock No.:: 911-5530
Mfr. Part No.:: MCP1703T-3302E/DB
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

RS Stock No.:: 911-5530
Mfr. Part No.:: MCP1703T-3302E/DB
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Regulator Type	Low Dropout Voltage
Maximum Output Current	200mA
Number of Outputs	1
Output Voltage	3.3 V
Line Regulation	0.3 %/V
Load Regulation	2.5 %
Mounting Type	Surface Mount
Polarity	Positive
Package Type	SOT-223
Quiescent Current	5µA
Pin Count	3+Tab
Power Rating	1.35W
Output Type	Fixed
Dimensions	6.7 x 3.7 x 1.7mm
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	16 V
Minimum Input Voltage	2.7 V
Height	1.7mm
Width	3.7mm
Length	6.7mm

Attribute	Value
Regulator Type	Low Dropout Voltage
Maximum Output Current	200mA
Number of Outputs	1
Output Voltage	3.3 V
Line Regulation	0.3 %/V
Load Regulation	2.5 %
Mounting Type	Surface Mount
Polarity	Positive
Package Type	SOT-223
Quiescent Current	5µA
Pin Count	3+Tab
Power Rating	1.35W
Output Type	Fixed
Dimensions	6.7 x 3.7 x 1.7mm
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	16 V
Minimum Input Voltage	2.7 V
Height	1.7mm
Width	3.7mm
Length	6.7mm

Microchip MCP1703T-3302E/DB, 1 Low Dropout Voltage, Voltage Regulator 200mA, 3.3 V 3+Tab-Pin, SOT-223

MCP1703 Low Dropout Voltage Regulator

MCP1703 Low Dropout Voltage Regulator
