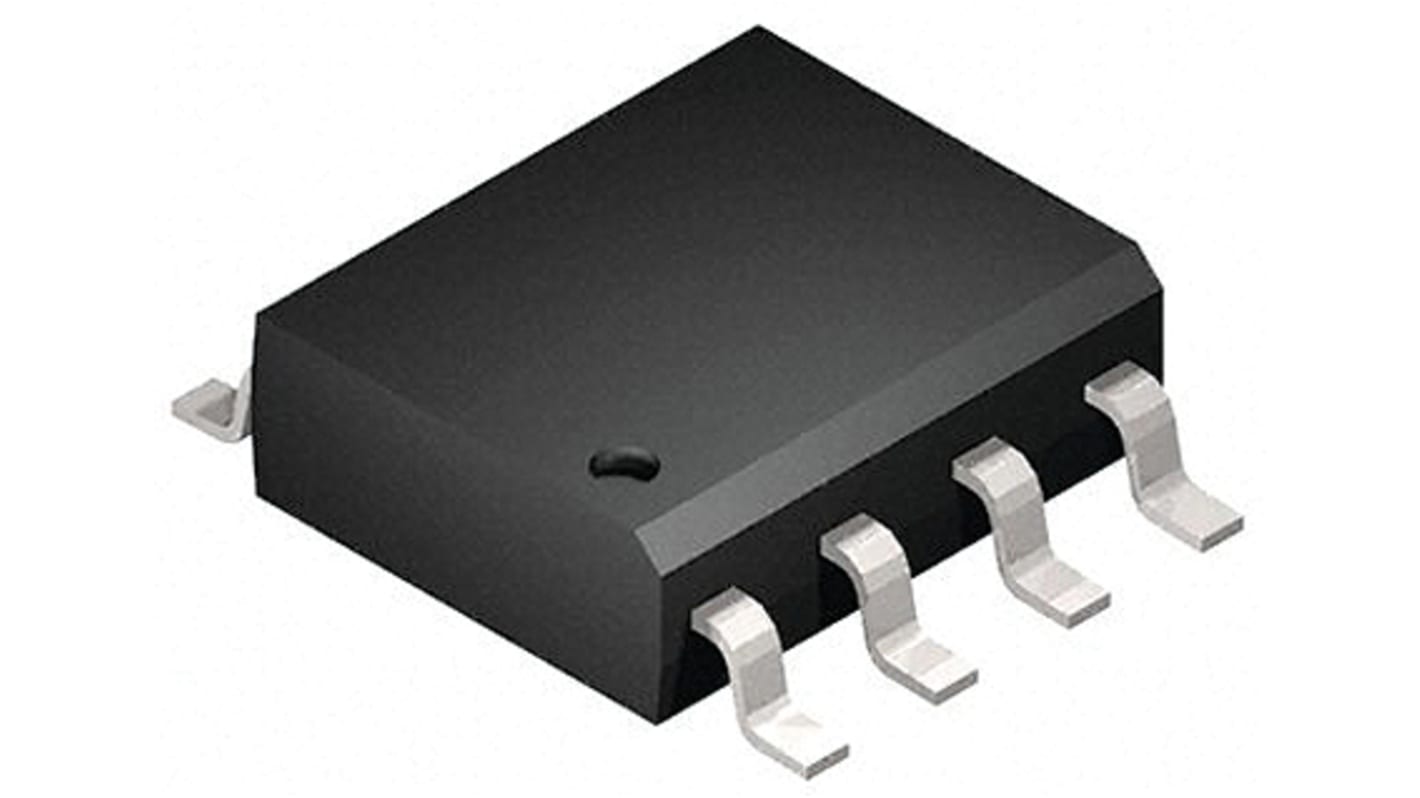

Infineon TLE42632ESXUMA1, 1 Low Dropout Voltage, Voltage Regulator 180mA, 5 V 8-Pin, DSO
- RS Stock No.:
- 906-2981
- Mfr. Part No.:
- TLE42632ESXUMA1
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 906-2981
- Mfr. Part No.:
- TLE42632ESXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Output Current | 180mA | |
| Regulator Type | Low Dropout Voltage | |
| Output Voltage | 5 V | |
| Number of Outputs | 1 | |
| Line Regulation | 25 mV | |
| Load Regulation | 25 mV | |
| Mounting Type | Surface Mount | |
| Polarity | Positive | |
| Package Type | DSO | |
| Pin Count | 8 | |
| Output Type | Fixed | |
| Dimensions | 4.9 x 3.9 x 1.6mm | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Input Voltage | -42 V | |
| Maximum Operating Temperature | +150 °C | |
| Height | 1.6mm | |
| Maximum Input Voltage | 45 V | |
| Length | 4.9mm | |
| Width | 3.9mm | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Output Current 180mA | ||
Regulator Type Low Dropout Voltage | ||
Output Voltage 5 V | ||
Number of Outputs 1 | ||
Line Regulation 25 mV | ||
Load Regulation 25 mV | ||
Mounting Type Surface Mount | ||
Polarity Positive | ||
Package Type DSO | ||
Pin Count 8 | ||
Output Type Fixed | ||
Dimensions 4.9 x 3.9 x 1.6mm | ||
Minimum Operating Temperature -40 °C | ||
Minimum Input Voltage -42 V | ||
Maximum Operating Temperature +150 °C | ||
Height 1.6mm | ||
Maximum Input Voltage 45 V | ||
Length 4.9mm | ||
Width 3.9mm | ||
TLE Series - LDO Regulator, Infineon
Infineon’s TLE product family of linear voltage regulators are designed for automotive applications. The monolithic integrated low-dropout voltage regulators have a fixed voltage output of 3.3V or 5V they are available in different package types. With input ranges up to 45V some LDO’s are capable of driving loads up to 450mA. Features may include short-circuit proof, integrated over temperature shutdown, watchdog circuit and reset signal.
Infineon TLE LDO Series:
Reverse polarity protection
Short-circuit proof
Early Warning
Power-on and undervoltage reset with Programmable Delay Time
Adjustable Reset Threshold
Output Current Limitation
Over temperature Protection
Wide Temperature Range
Green Product (RoHS compliant)
AEC Qualified
Reverse polarity protection
Short-circuit proof
Early Warning
Power-on and undervoltage reset with Programmable Delay Time
Adjustable Reset Threshold
Output Current Limitation
Over temperature Protection
Wide Temperature Range
Green Product (RoHS compliant)
AEC Qualified
Linear Voltage Regulators, Infineon
We have a wide range of linear voltage regulators. The Low dropout or LDO regulators can operate with a small input-output differential voltage. The linear voltage regulators offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
