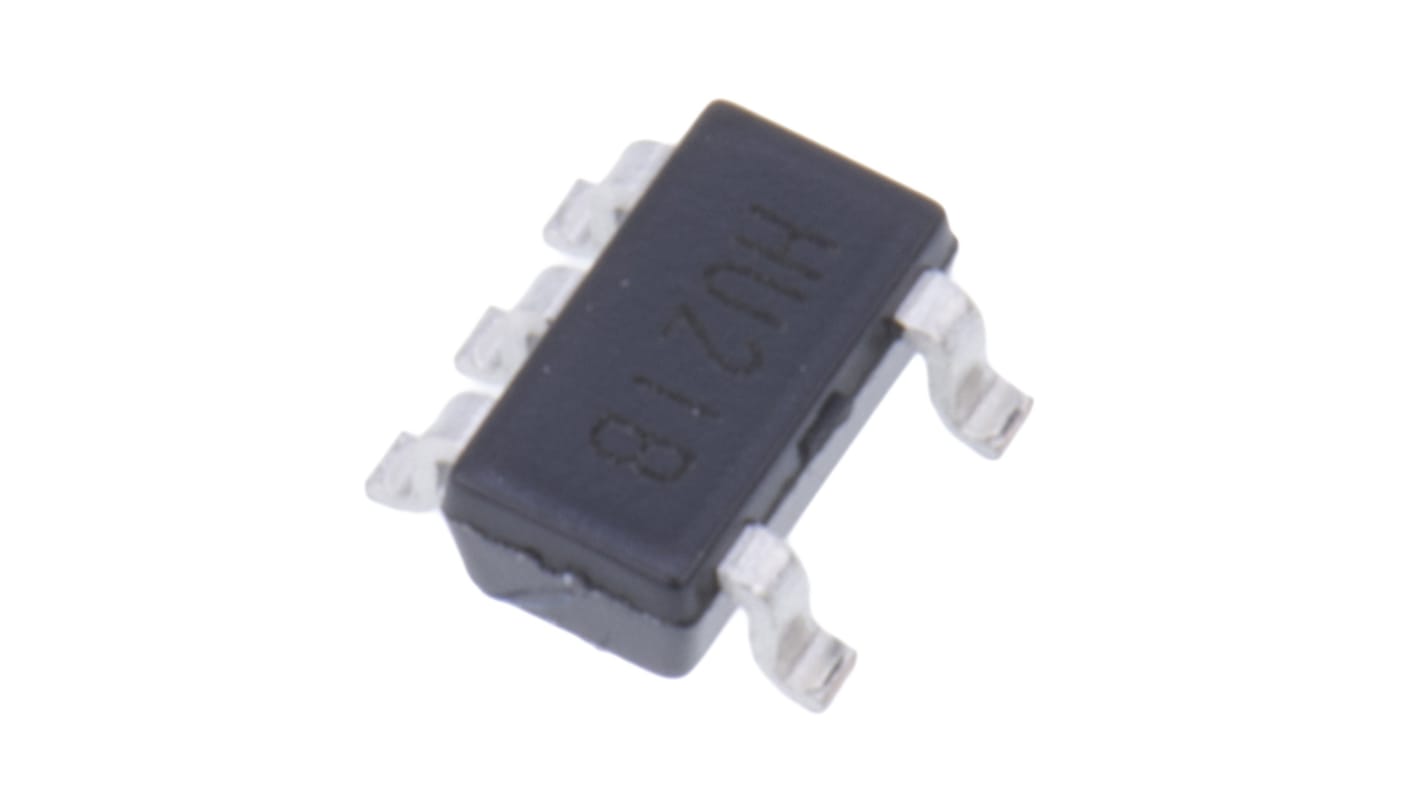

Toshiba TCR2EF33,LM(CT, LDO Regulator, 150mA, 3.3 V, ±1% 5-Pin, SOT-25
- RS Stock No.:
- 896-2634
- Mfr. Part No.:
- TCR2EF33,LM(CT
- Brand:
- Toshiba
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 896-2634
- Mfr. Part No.:
- TCR2EF33,LM(CT
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Maximum Output Current | 150mA | |
| Regulator Type | Low Dropout Voltage | |
| Output Voltage | 3.3 V | |
| Number of Outputs | 1 | |
| Line Regulation | 15 mV | |
| Accuracy | ±1% | |
| Load Regulation | 30 mV | |
| Polarity | Positive | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-25 | |
| Quiescent Current | 60µA | |
| Pin Count | 5 | |
| Output Type | Fixed | |
| Power Rating | 580W | |
| Dimensions | 2.9 x 1.6 x 1.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Height | 1.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Input Voltage | 1.5 V | |
| Maximum Input Voltage | 5.55 V | |
| Width | 1.6mm | |
| Length | 2.9mm | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Maximum Output Current 150mA | ||
Regulator Type Low Dropout Voltage | ||
Output Voltage 3.3 V | ||
Number of Outputs 1 | ||
Line Regulation 15 mV | ||
Accuracy ±1% | ||
Load Regulation 30 mV | ||
Polarity Positive | ||
Mounting Type Surface Mount | ||
Package Type SOT-25 | ||
Quiescent Current 60µA | ||
Pin Count 5 | ||
Output Type Fixed | ||
Power Rating 580W | ||
Dimensions 2.9 x 1.6 x 1.1mm | ||
Maximum Operating Temperature +85 °C | ||
Height 1.1mm | ||
Minimum Operating Temperature -40 °C | ||
Minimum Input Voltage 1.5 V | ||
Maximum Input Voltage 5.55 V | ||
Width 1.6mm | ||
Length 2.9mm | ||
- COO (Country of Origin):
- MY
LDO (Low-Dropout) Regulator with Fast Load Transient Response, TCR2EF Series, Toshiba
LDO (Low Dropout) Linear Voltage Regulators, Toshiba
The Low Dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
