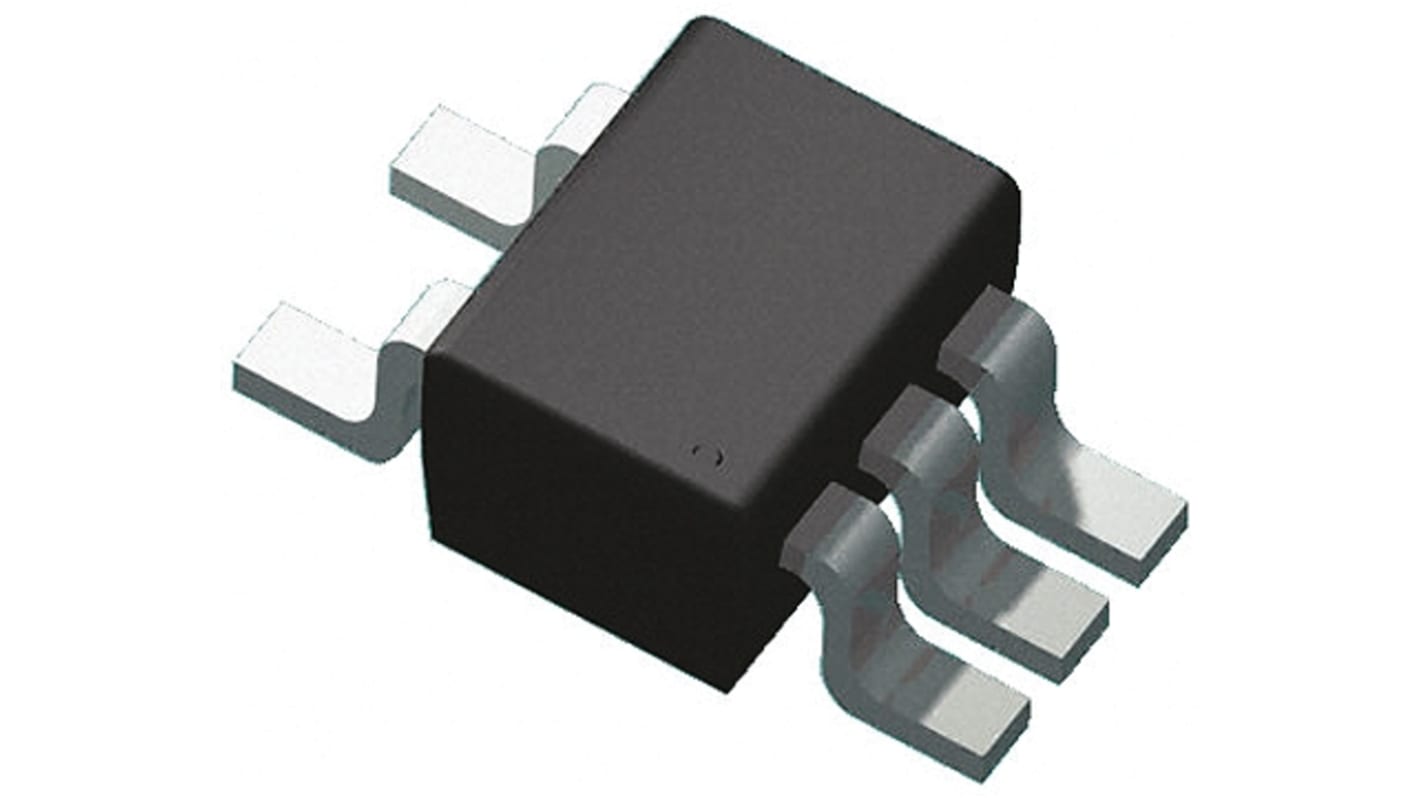

Analog Devices LTC1844ES5-1.8#TRMPBF, 1 Low Dropout Voltage, Voltage Regulator 350mA, 1.8 V 5-Pin, TSOT-23
- RS Stock No.:
- 822-6856
- Mfr. Part No.:
- LTC1844ES5-1.8#TRMPBF
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 822-6856
- Mfr. Part No.:
- LTC1844ES5-1.8#TRMPBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Maximum Output Current | 350mA | |
| Regulator Type | Low Dropout Voltage | |
| Number of Outputs | 1 | |
| Output Voltage | 1.8 V | |
| Line Regulation | 30 mV | |
| Load Regulation | 20 mV | |
| Mounting Type | Surface Mount | |
| Polarity | Positive | |
| Quiescent Current | 80µA | |
| Package Type | TSOT-23 | |
| Reference Voltage | 1.25V | |
| Pin Count | 5 | |
| Output Type | Fixed | |
| Dimensions | 2.9 x 1.75 x 0.9mm | |
| Maximum Input Voltage | 6.5 V | |
| Height | 0.9mm | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Input Voltage | 1.6 V | |
| Maximum Operating Temperature | +125 °C | |
| Width | 1.75mm | |
| Length | 2.9mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Maximum Output Current 350mA | ||
Regulator Type Low Dropout Voltage | ||
Number of Outputs 1 | ||
Output Voltage 1.8 V | ||
Line Regulation 30 mV | ||
Load Regulation 20 mV | ||
Mounting Type Surface Mount | ||
Polarity Positive | ||
Quiescent Current 80µA | ||
Package Type TSOT-23 | ||
Reference Voltage 1.25V | ||
Pin Count 5 | ||
Output Type Fixed | ||
Dimensions 2.9 x 1.75 x 0.9mm | ||
Maximum Input Voltage 6.5 V | ||
Height 0.9mm | ||
Minimum Operating Temperature -40 °C | ||
Minimum Input Voltage 1.6 V | ||
Maximum Operating Temperature +125 °C | ||
Width 1.75mm | ||
Length 2.9mm | ||
LDO (Low Dropout) Linear Voltage Regulators, 1.8V Output, Linear Technology
LDO (Low Dropout) Linear Voltage Regulators, Linear Technology
Linear Technology Low Dropout Linear regulators (LDO) present very low dropout, line and load regulation and fast transient response. The positive, negative and multiple output LDO Linear regulators come in fixed or adjustable outputs. Some LDO+ devices have more features than the standard linear regulators; some can monitor the voltage, current and temperature. They also feature program current limit, active output discharge or even control an upstream supply powering the LDO.
Fast Transient response time
Wide Input Voltage range: 0.9V to 80V
Output Currents from 100mA to 7.5A
Wide Input Voltage range: 0.9V to 80V
Output Currents from 100mA to 7.5A
