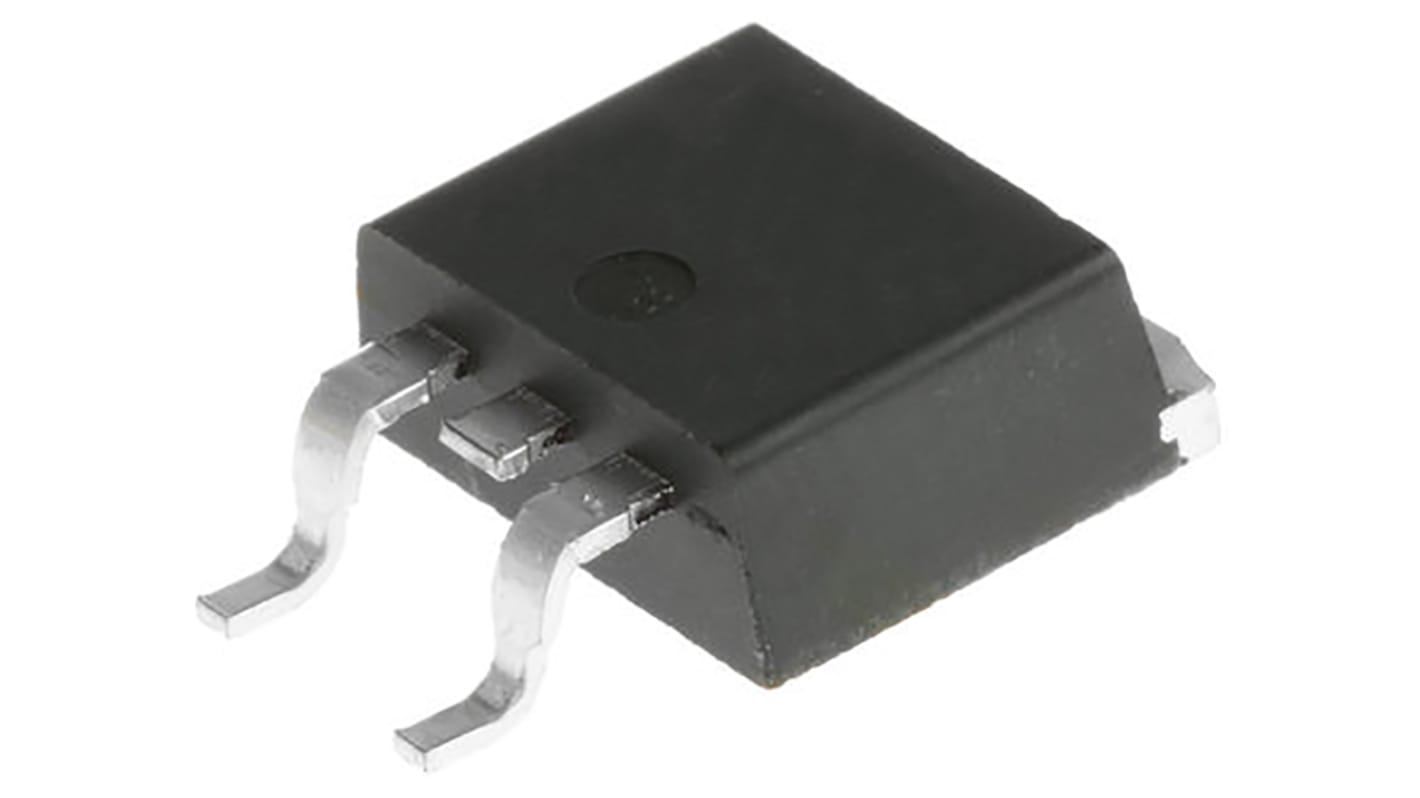

onsemi MC7815BD2TG, 1 Linear Voltage, Voltage Regulator 2.2A, 15 V 3-Pin, D2PAK
- RS Stock No.:
- 805-6512P
- Mfr. Part No.:
- MC7815BD2TG
- Brand:
- onsemi
Bulk discount available
Subtotal 60 units (supplied in a tube)*
£46.44
(exc. VAT)
£55.74
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 60 - 100 | £0.774 |
| 120 - 220 | £0.532 |
| 240 - 460 | £0.505 |
| 480 + | £0.481 |
*price indicative
- RS Stock No.:
- 805-6512P
- Mfr. Part No.:
- MC7815BD2TG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Output Current | 2.2A | |
| Regulator Type | Linear Voltage | |
| Number of Outputs | 1 | |
| Output Voltage | 15 V | |
| Line Regulation | 300 mV | |
| Load Regulation | 300 mV | |
| Mounting Type | Surface Mount | |
| Polarity | Positive | |
| Package Type | D2PAK | |
| Quiescent Current | 8mA | |
| Pin Count | 3 | |
| Output Type | Fixed | |
| Dimensions | 10.236 x 9.347 x 4.572mm | |
| Height | 4.572mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Input Voltage | 35 V | |
| Width | 9.347mm | |
| Length | 10.24mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Output Current 2.2A | ||
Regulator Type Linear Voltage | ||
Number of Outputs 1 | ||
Output Voltage 15 V | ||
Line Regulation 300 mV | ||
Load Regulation 300 mV | ||
Mounting Type Surface Mount | ||
Polarity Positive | ||
Package Type D2PAK | ||
Quiescent Current 8mA | ||
Pin Count 3 | ||
Output Type Fixed | ||
Dimensions 10.236 x 9.347 x 4.572mm | ||
Height 4.572mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Maximum Input Voltage 35 V | ||
Width 9.347mm | ||
Length 10.24mm | ||
MC7815 Linear voltage regulator, ON Semiconductor
The ON Semiconductor linear voltage regulators generate a fixed 15 V output with 2% or 4% tolerances. The MC7815 positive voltage regulator includes safe area compensation; it also has internal current limiting and thermal shutdown overload protection. There are no external components required unless you want to adjust the outputs. These devices are suitable in many applications within the electronics Industry.
Output Voltage: 15 V
Pb-Free Package available
Pb-Free Package available
Linear Voltage Regulators, ON Semiconductor
