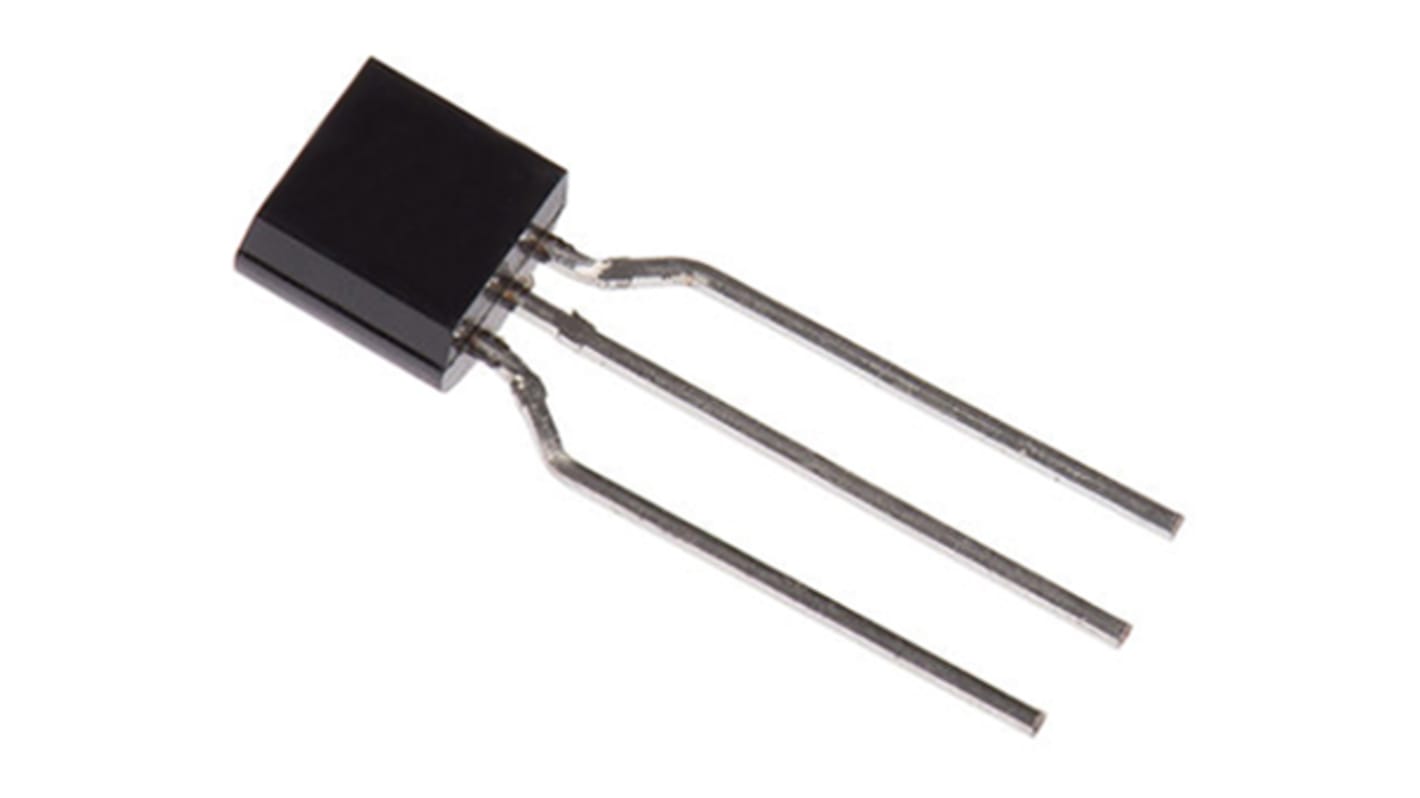

STMicroelectronics L78L08ABZ-AP, 1-Channel Linear Voltage, Voltage Regulator, 8 V, TO-92 3-Pin
- RS Stock No.:
- 686-9571P
- Mfr. Part No.:
- L78L08ABZ-AP
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 686-9571P
- Mfr. Part No.:
- L78L08ABZ-AP
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Regulator Type | Linear Voltage | |
| Product Type | Voltage Regulator | |
| Output Voltage | 8 V | |
| Number of Outputs | 1 | |
| Line Regulation | 175 mV | |
| Load Regulation | 80 mV | |
| Mount Type | Through Hole | |
| Polarity | Positive | |
| Quiescent Current | 6mA | |
| Package Type | TO-92 | |
| Pin Count | 3 | |
| Output Type | Fixed | |
| Width | 3.94 mm | |
| Series | L78Lxx | |
| Length | 4.95mm | |
| Height | 4.95mm | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Input Voltage | 30V | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Regulator Type Linear Voltage | ||
Product Type Voltage Regulator | ||
Output Voltage 8 V | ||
Number of Outputs 1 | ||
Line Regulation 175 mV | ||
Load Regulation 80 mV | ||
Mount Type Through Hole | ||
Polarity Positive | ||
Quiescent Current 6mA | ||
Package Type TO-92 | ||
Pin Count 3 | ||
Output Type Fixed | ||
Width 3.94 mm | ||
Series L78Lxx | ||
Length 4.95mm | ||
Height 4.95mm | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Input Voltage 30V | ||
Linear Voltage Regulators, 100mA, STMicroelectronics
The L78L series of three-terminal positive regulators embed internal current limiting, and thermal shut-down. Providing an adequate heat sink, up to 100mA output current can be delivered.
