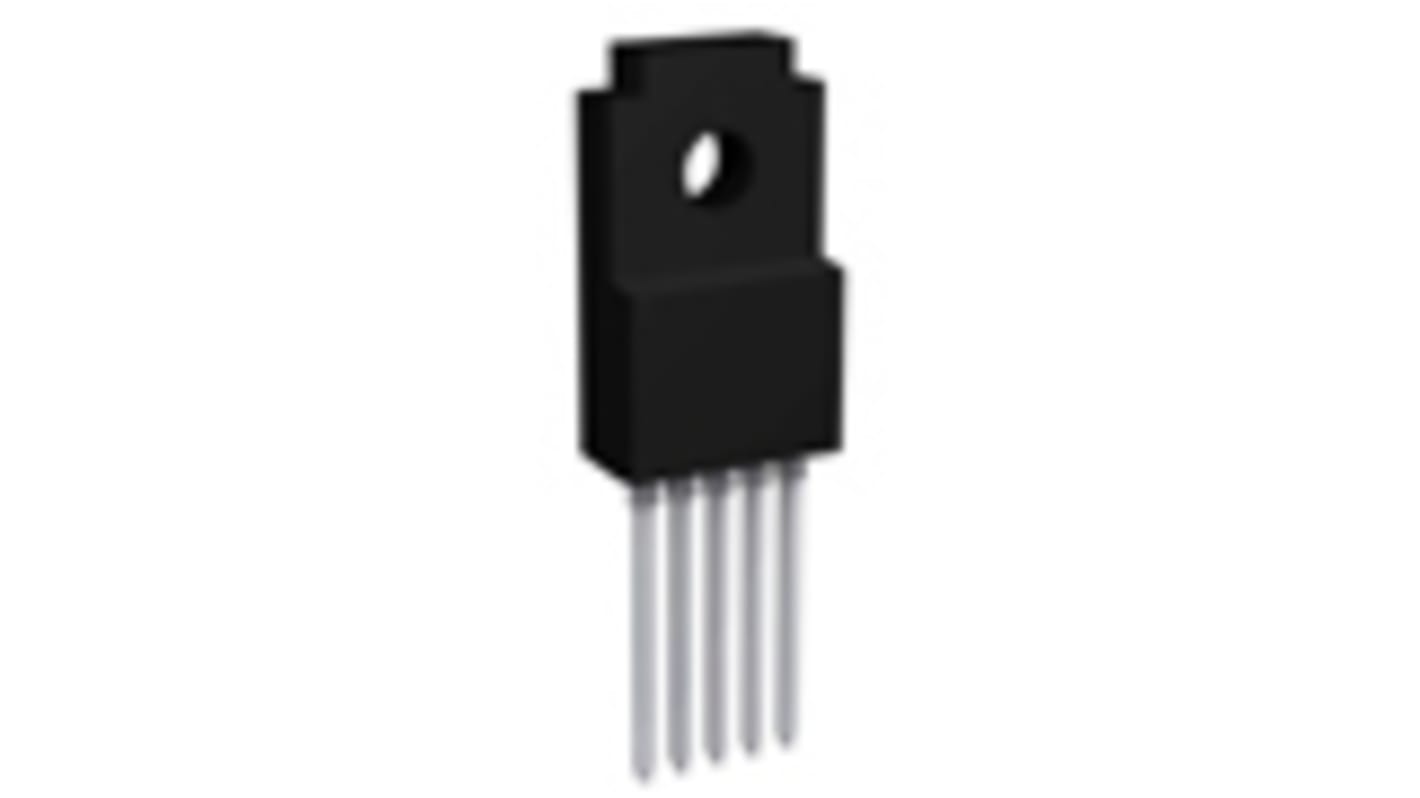

ROHM BA50DD0WT, 1 Low Dropout Voltage, Voltage Regulator 2A, 5 V 5-Pin, TO-220FP

View all Voltage Regulators
Unavailable
RS will no longer stock this product.
RS Stock No.:
171-7801
Mfr. Part No.:
BA50DD0WT
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Regulator Type

Low Dropout Voltage

Maximum Output Current

2A

Number of Outputs

1

Output Voltage

5 V

Line Regulation

50 mV

Accuracy

±1%

Load Regulation

200 mV

Polarity

Positive

Mounting Type

Through Hole

Package Type

TO-220FP

Pin Count

5

Output Type

Fixed

Dimensions

10 x 4.5 x 17mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Height

17mm

Maximum Input Voltage

25 V

Minimum Input Voltage

3 V

Width

4.5mm

Length

10mm

ROHM's LDO regulators continue the trend towards increasing miniaturization and greater power efficiency and are optimized for power supplies of all types. The broad lineup includes low saturation fixed output types in 1A/2A/0.3A ratings, models with different output voltages and packages, and units with/without a shutdown switch. In addition, overcurrent, thermal shutdown, and overvoltage protection circuits are integrated to prevent IC destruction due to output shorts, IC overload, and surges on the power supply line, respectively.

Maximum current: 2A
Output voltage accuracy: ±1%
Ultra-low saturation with PNP output
Applications:
Coin Processing Machines
Portable Data Terminal
Meter for Medical Treatments Portable
Barcode Scanner
Digital Multimeter: Handy Type
Digital Stethoscope
Single Board Computer
Network Attached Storage
Blood Glucose Meter
X-ray Inspection Machine for Security
Monitor for Medical
CT Scanner
ECG(EKG)
Intercom / Baby Monitor
Fingerprint Authentication Device
Machine Vision Camera for Industrial
Pulse Oximeter
Digital Multimeter: Bench Type
Display for EMS
