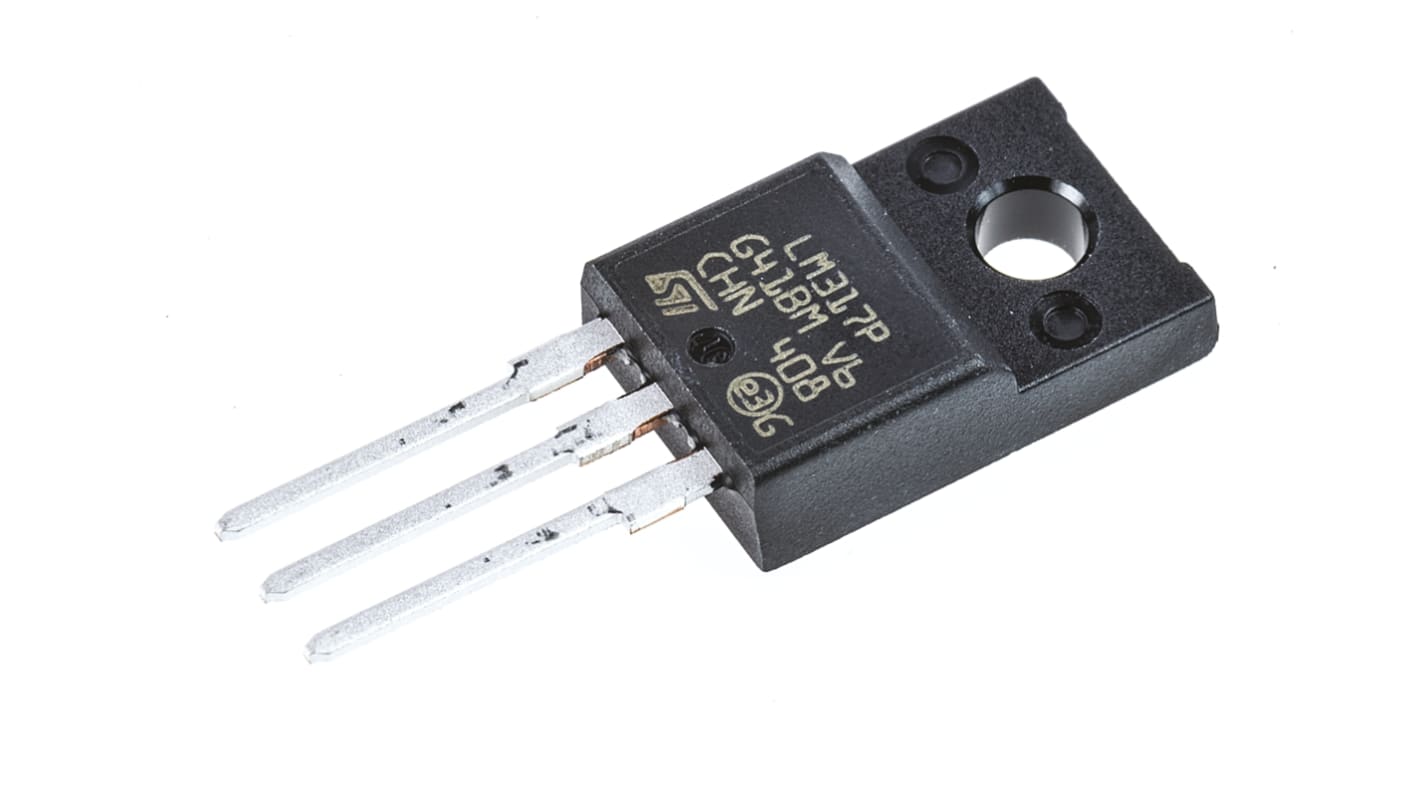

STMicroelectronics LM317P, 1 Linear Voltage, Voltage Regulator 1.5A, 1.2 → 37 V 3-Pin, TO-220FP
- RS Stock No.:
- 168-6586
- Mfr. Part No.:
- LM317P
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 168-6586
- Mfr. Part No.:
- LM317P
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Regulator Type | Linear Voltage | |
| Maximum Output Current | 1.5A | |
| Number of Outputs | 1 | |
| Output Voltage | 1.2 → 37 V | |
| Line Regulation | 0.04 %/V | |
| Load Regulation | 0.5 % | |
| Mounting Type | Through Hole | |
| Polarity | Positive | |
| Package Type | TO-220FP | |
| Pin Count | 3 | |
| Reference Voltage | 1.3V | |
| Output Type | Adjustable | |
| Dimensions | 10.4 x 4.6 x 9.3mm | |
| Minimum Input Voltage | 3 V | |
| Minimum Operating Temperature | 0 °C | |
| Height | 9.3mm | |
| Maximum Operating Temperature | +125 °C | |
| Length | 10.4mm | |
| Width | 4.6mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Regulator Type Linear Voltage | ||
Maximum Output Current 1.5A | ||
Number of Outputs 1 | ||
Output Voltage 1.2 → 37 V | ||
Line Regulation 0.04 %/V | ||
Load Regulation 0.5 % | ||
Mounting Type Through Hole | ||
Polarity Positive | ||
Package Type TO-220FP | ||
Pin Count 3 | ||
Reference Voltage 1.3V | ||
Output Type Adjustable | ||
Dimensions 10.4 x 4.6 x 9.3mm | ||
Minimum Input Voltage 3 V | ||
Minimum Operating Temperature 0 °C | ||
Height 9.3mm | ||
Maximum Operating Temperature +125 °C | ||
Length 10.4mm | ||
Width 4.6mm | ||
- COO (Country of Origin):
- MY
LM217/LM317 Linear Voltage Regulator, STMicroelectronics
The STMicroelectronics LM217, LM317 Positive linear voltage regulator are robust as they feature internal current limiting and thermal shutdown. The adjustable voltage regulator is supplied in various packages from TO220, TO220FP and D2PAK devices. This series offers 1.5 Amps of load current with an output range of 1.2 V to 37 V by using the resistive divider.
0.1% line and load regulation
Safe operational area protection
Floating operation for high voltage
Safe operational area protection
Floating operation for high voltage
