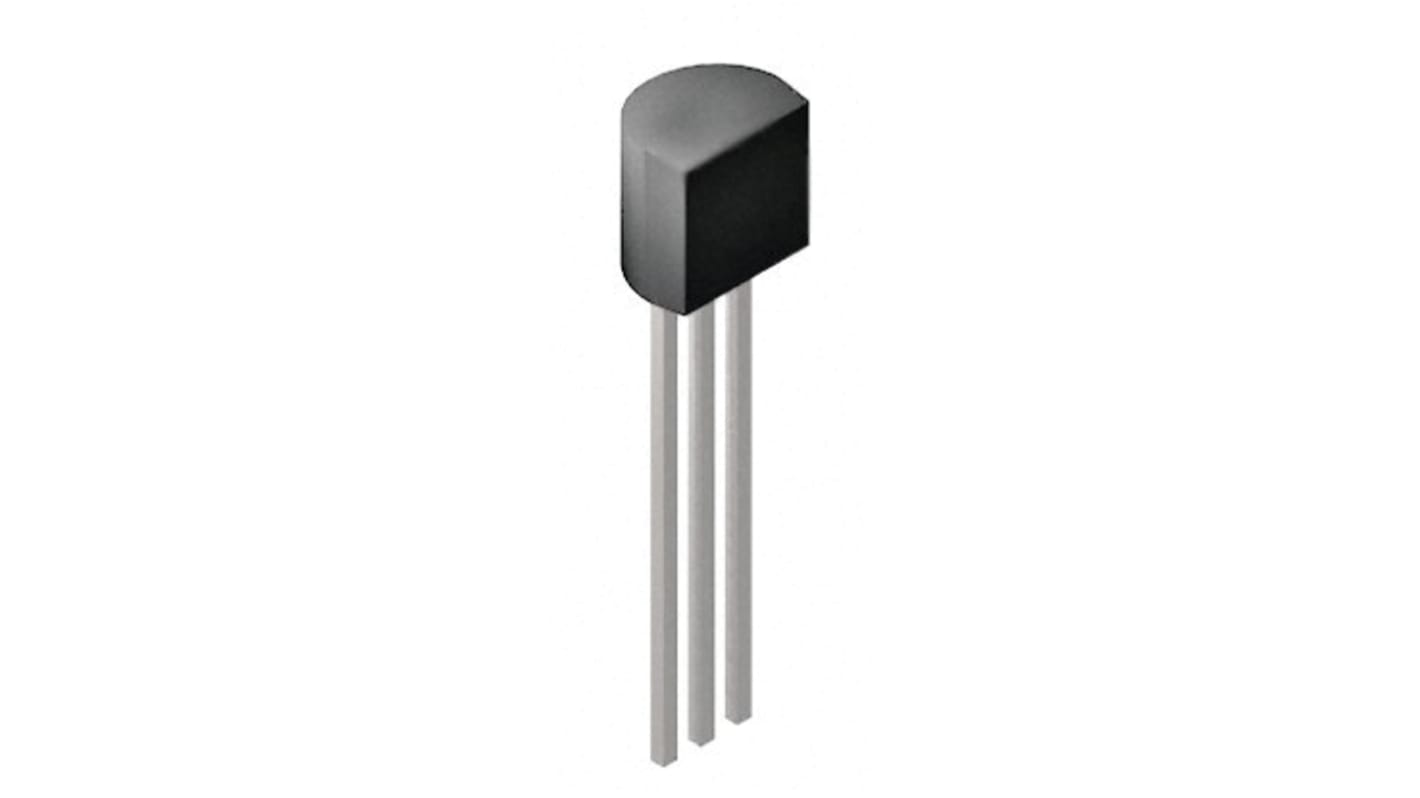

onsemi Fixed Shunt Voltage Reference 1.235V ±1.0 % 3-Pin TO-92, LM385BZ-1.2G
- RS Stock No.:
- 162-9967
- Mfr. Part No.:
- LM385BZ-1.2G
- Brand:
- onsemi
Discontinued product
- RS Stock No.:
- 162-9967
- Mfr. Part No.:
- LM385BZ-1.2G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
Voltage Reference, 0.6V to 4.096V, ON Semiconductor
Voltage References, ON Semiconductor
Specifications
Attribute | Value |
|---|---|
| Nominal Voltage | 1.235V |
| Package Type | TO-92 |
| Reference Type | Fixed |
| Initial Accuracy | ±1.0 % |
| Mounting Type | Through Hole |
| Topology | Shunt |
| Pin Count | 3 |
| Dimensions | 5.2 x 4.19 x 5.33mm |
| Minimum Operating Temperature | 0 °C |
| Length | 5.2mm |
| Height | 5.33mm |
| Width | 4.19mm |
| Maximum Operating Temperature | +70 °C |
