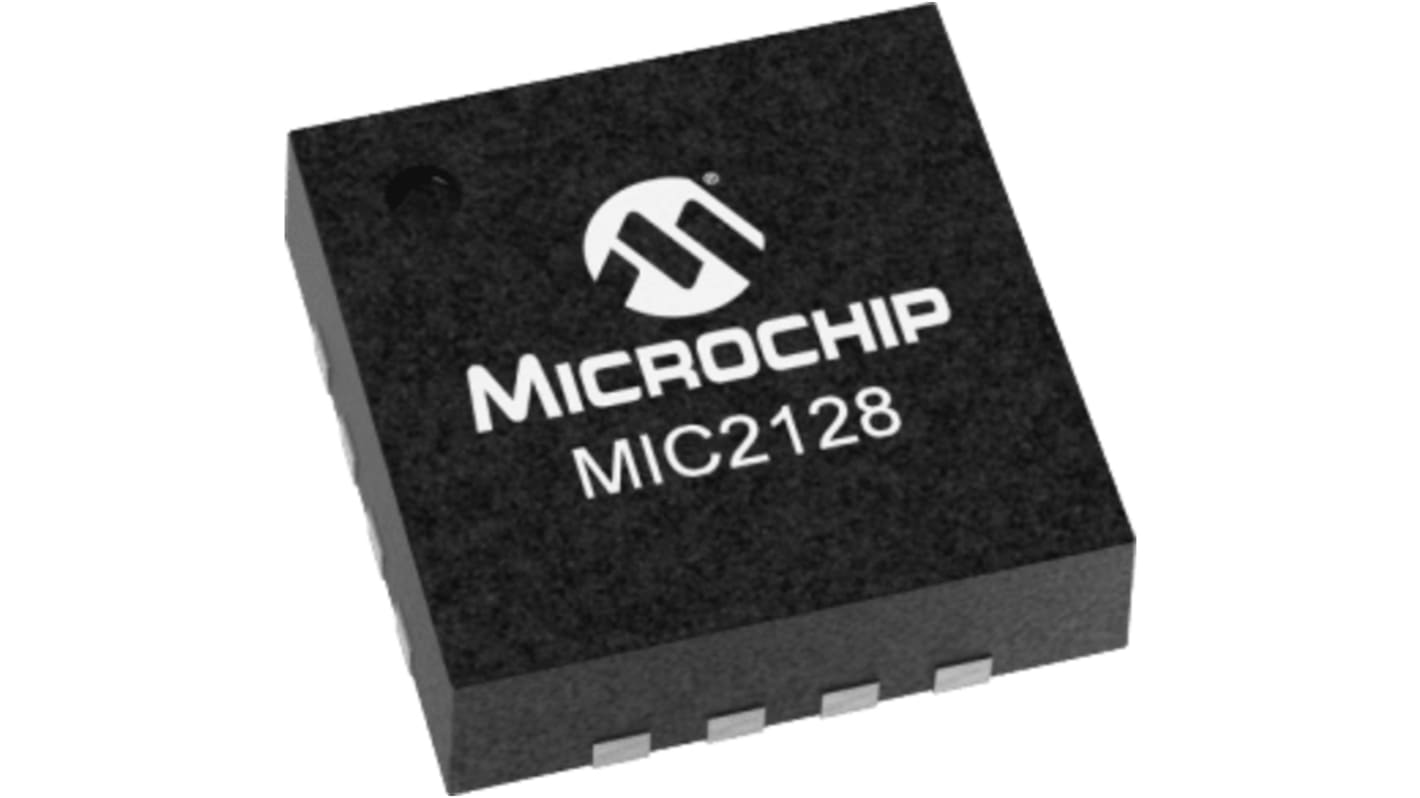

Microchip MIC2128YML-T5 DC-DC, Buck Controller 800 kHz 16-Pin, VQFN
- RS Stock No.:
- 146-8910P
- Mfr. Part No.:
- MIC2128YML-T5
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 146-8910P
- Mfr. Part No.:
- MIC2128YML-T5
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Controller Type | Buck Controller | |
| Number of Outputs | 1 | |
| Maximum Switching Frequency | 800 kHz | |
| Current Conversion Type | DC-DC | |
| Mounting Type | Surface Mount | |
| Package Type | VQFN | |
| Pin Count | 16 | |
| Dimensions | 3 x 3 x 0.8mm | |
| Maximum Input Voltage | 75 V | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Output Current | 10mA | |
| Maximum Output Voltage | 5.4 V | |
| Minimum Input Voltage | 4.5 V | |
| Minimum Output Voltage | 4.8 V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Controller Type Buck Controller | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 800 kHz | ||
Current Conversion Type DC-DC | ||
Mounting Type Surface Mount | ||
Package Type VQFN | ||
Pin Count 16 | ||
Dimensions 3 x 3 x 0.8mm | ||
Maximum Input Voltage 75 V | ||
Maximum Operating Temperature +125 °C | ||
Maximum Output Current 10mA | ||
Maximum Output Voltage 5.4 V | ||
Minimum Input Voltage 4.5 V | ||
Minimum Output Voltage 4.8 V | ||
Minimum Operating Temperature -40 °C | ||
The MIC2128 is a constant-frequency synchronous buck controllers featuring a unique adaptive ON-time control architecture. The MIC2128 operates over an input voltage range from 4.5V to 75V and can be used to supply load current up to 25A (Thermally Limited) . The output voltage is adjustable down to 0.6V with a guaranteed accuracy of ±1%. The device operates with programmable switching frequency from 270kHz to 800kHz.
Adjustable output voltage from 0.6V to 30V
270kHz to 800kHz programmable switching frequency
Externally programmable soft start
Enable input and power good output
Built-in 5V regulator for single-supply operation
Auxiliary bootstrap LDO
Internal Bootstrap diode
Programmable current limit and "hiccup" mode short-circuit protection
270kHz to 800kHz programmable switching frequency
Externally programmable soft start
Enable input and power good output
Built-in 5V regulator for single-supply operation
Auxiliary bootstrap LDO
Internal Bootstrap diode
Programmable current limit and "hiccup" mode short-circuit protection
