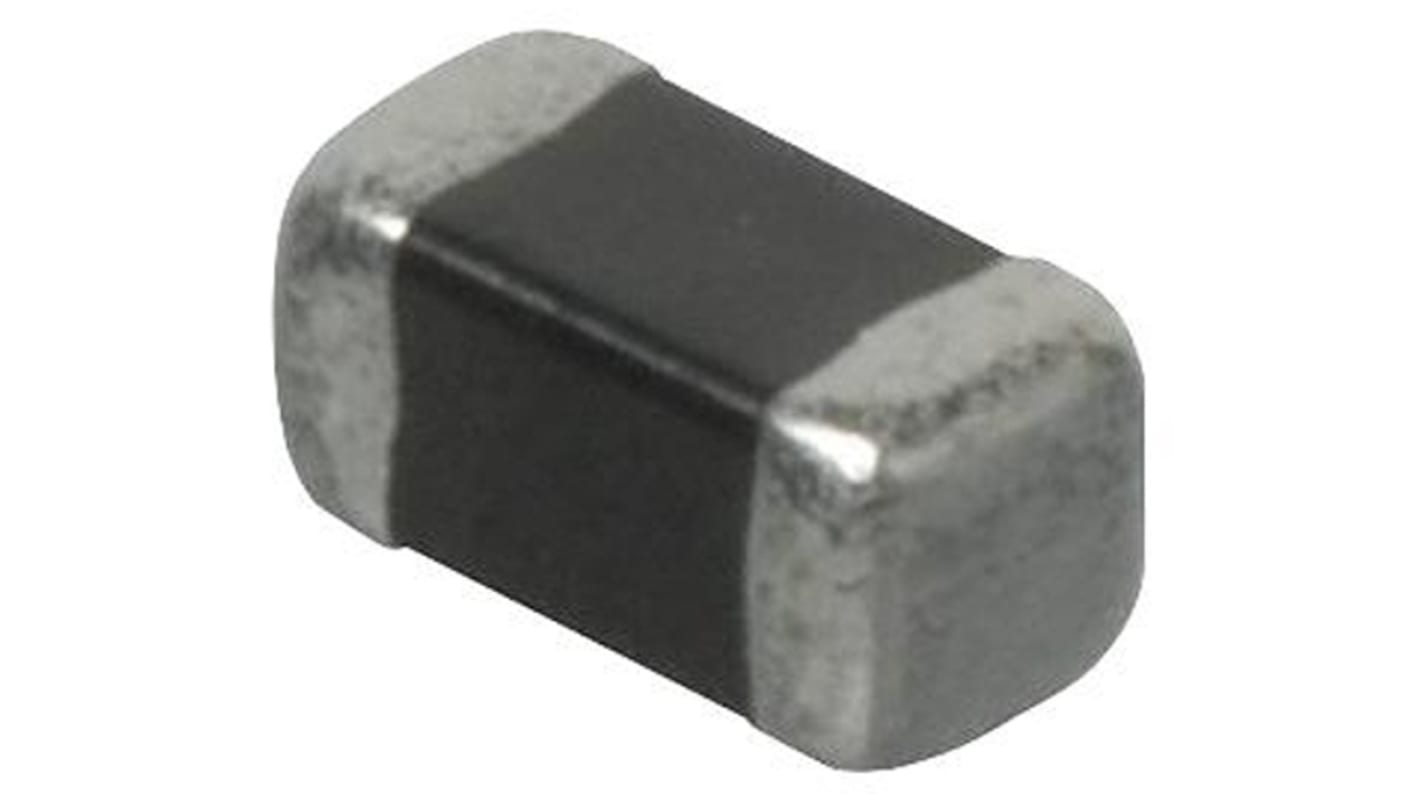

KYOCERA AVX, VC32 Varistor 100pF 10A, Clamping 595V, Varistor 360V, 3220 (8552M)
- RS Stock No.:
- 697-9081
- Mfr. Part No.:
- VC32M00231KBA
- Brand:
- AVX
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 697-9081
- Mfr. Part No.:
- VC32M00231KBA
- Brand:
- AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AVX | |
| Varistor Voltage | 360V | |
| Maximum AC Voltage Rating | 230V | |
| Maximum DC Voltage Rating | 300V | |
| Clamping Voltage | 595V | |
| Clamping Current | 10A | |
| Energy | 20J | |
| Material | Metal | |
| Series | VC32 | |
| Maximum Surge Current | 400A | |
| Capacitance | 100pF | |
| Length | 8.51mm | |
| Depth | 5.26mm | |
| Thickness | 2.03mm | |
| Package/Case | 3220 (8552M) | |
| Dimensions | 8.51 x 5.26 x 2.03mm | |
Select all | ||
|---|---|---|
Brand AVX | ||
Varistor Voltage 360V | ||
Maximum AC Voltage Rating 230V | ||
Maximum DC Voltage Rating 300V | ||
Clamping Voltage 595V | ||
Clamping Current 10A | ||
Energy 20J | ||
Material Metal | ||
Series VC32 | ||
Maximum Surge Current 400A | ||
Capacitance 100pF | ||
Length 8.51mm | ||
Depth 5.26mm | ||
Thickness 2.03mm | ||
Package/Case 3220 (8552M) | ||
Dimensions 8.51 x 5.26 x 2.03mm | ||
SMT Transient Suppressors - VC32 Series
Higher voltage rating and transient energy rating than typical multi-layer ceramic varistors
Proven Zinc Oxide formulation
Top and bottom surfaces glass coated
Radial MOV replacement
Dimensions (mm) : 8.5x5x2
Proven Zinc Oxide formulation
Top and bottom surfaces glass coated
Radial MOV replacement
Dimensions (mm) : 8.5x5x2
