Bourns, PV Varistor 95pF 10A, Clamping 595V, Varistor 360V, 3225
- RS Stock No.:
- 204-8734P
- Mfr. Part No.:
- PV230K4032R2
- Brand:
- Bourns
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£19.05
(exc. VAT)
£22.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 370 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 90 | £0.381 |
| 100 - 240 | £0.361 |
| 250 - 490 | £0.333 |
| 500 + | £0.305 |
*price indicative
- RS Stock No.:
- 204-8734P
- Mfr. Part No.:
- PV230K4032R2
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 360V | |
| Maximum AC Voltage Rating | 230V | |
| Maximum DC Voltage Rating | 300V | |
| Clamping Voltage | 595V | |
| Clamping Current | 10A | |
| Material | Plastic | |
| Energy | 23J | |
| Series | PV | |
| Maximum Surge Current | 1200A | |
| Capacitance | 95pF | |
| Length | 10mm | |
| Thickness | 4.7mm | |
| Package/Case | 3225 | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 360V | ||
Maximum AC Voltage Rating 230V | ||
Maximum DC Voltage Rating 300V | ||
Clamping Voltage 595V | ||
Clamping Current 10A | ||
Material Plastic | ||
Energy 23J | ||
Series PV | ||
Maximum Surge Current 1200A | ||
Capacitance 95pF | ||
Length 10mm | ||
Thickness 4.7mm | ||
Package/Case 3225 | ||
- COO (Country of Origin):
- SI

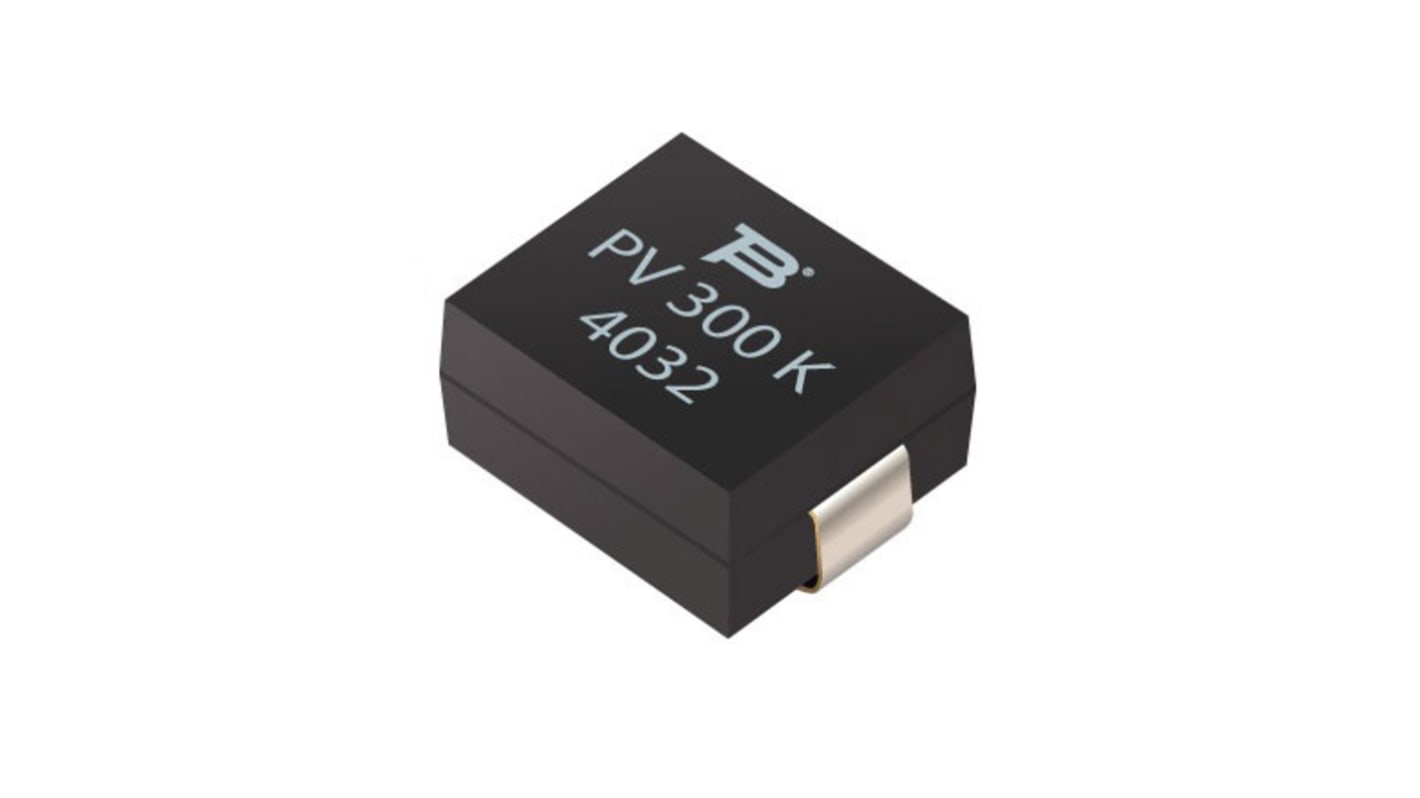

The PV series plastic-encapsulated varistor is designed to protect electronic equipment against voltage surges in the low and medium voltage region. It is designed for surface mounting and offers direct SMD equivalents to leaded disc varistors of 5 and 7 mm sizes. The thermoplastic encapsulation is non-flammable and UL 94 V-0 rated. Contacts are made of tinned copper sheet. These transient voltage suppressors cover an operating voltage Vrms from 11 V to 300 V, featuring maximum surge currents from 100 A to 1200 A.
Package size of 4032
Operating voltage range (Vdc) 14 V to 385 V
Operating voltage (Vrms) 11 V to 300 V
Continuous operating temperature 85 °C
Easily solderable tinned copper sheet
Available in tape and reel packaging for automatic pick-and-place
UL 94 V-0 Non-flammable thermoplastic encapsulation
Operating voltage range (Vdc) 14 V to 385 V
Operating voltage (Vrms) 11 V to 300 V
Continuous operating temperature 85 °C
Easily solderable tinned copper sheet
Available in tape and reel packaging for automatic pick-and-place
UL 94 V-0 Non-flammable thermoplastic encapsulation
