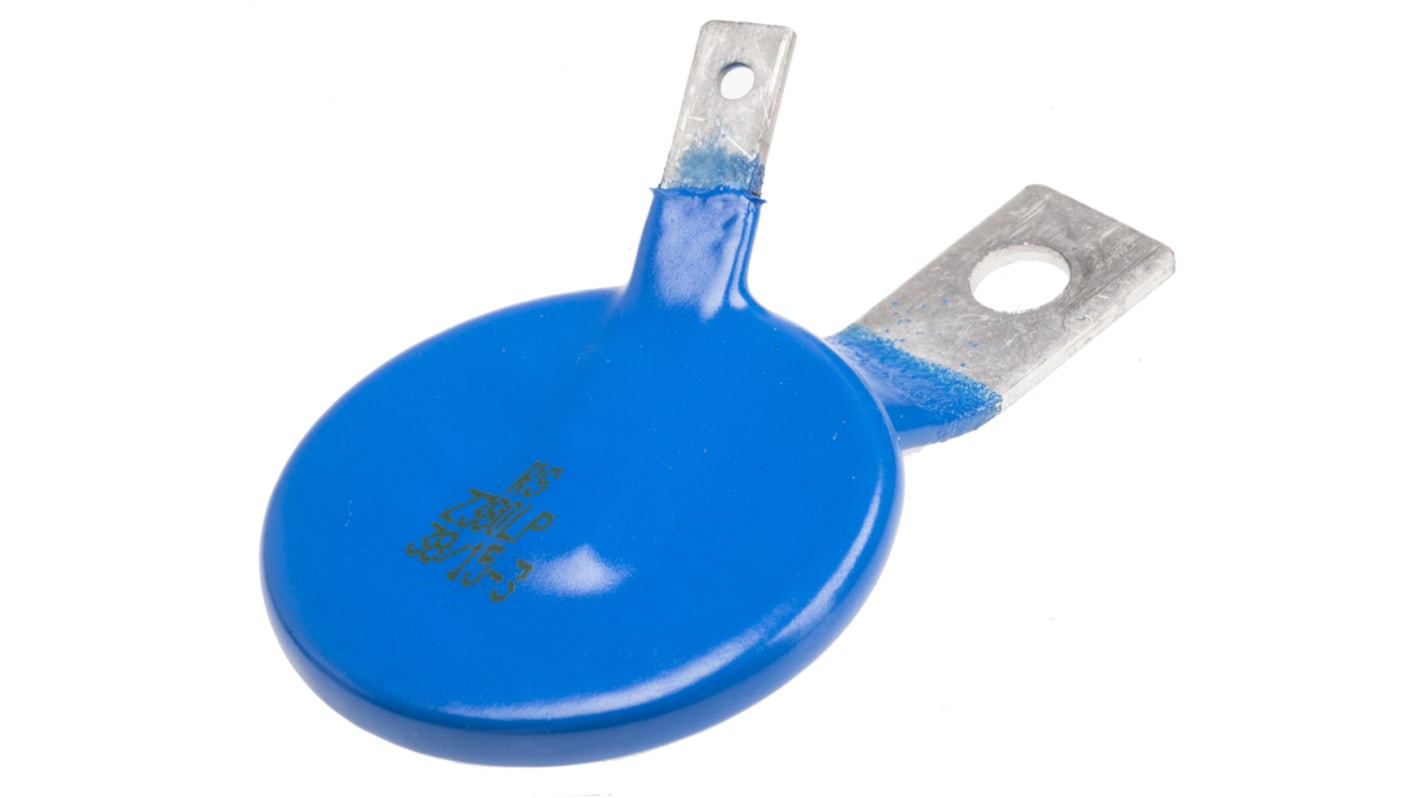

RS PRO Metal Oxide Varistor 2.05nF, Clamping 1050V, Varistor 610V
- RS Stock No.:
- 240-135
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 240-135
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Varistor Voltage | 610V | |
| Maximum AC Voltage Rating | 420V | |
| Maximum DC Voltage Rating | 560V | |
| Clamping Voltage | 1050V | |
| Energy | 310J | |
| Series | High Power | |
| Diameter | 36mm | |
| Maximum Surge Current | 12000A | |
| Capacitance | 2.05nF | |
| Thickness | 5.5mm | |
| Dimensions | 36 (Dia.) x 5.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Varistor Voltage 610V | ||
Maximum AC Voltage Rating 420V | ||
Maximum DC Voltage Rating 560V | ||
Clamping Voltage 1050V | ||
Energy 310J | ||
Series High Power | ||
Diameter 36mm | ||
Maximum Surge Current 12000A | ||
Capacitance 2.05nF | ||
Thickness 5.5mm | ||
Dimensions 36 (Dia.) x 5.5mm | ||
- COO (Country of Origin):
- GB
Metal Oxide Varistors High Power
High power metal oxide varistors suitable for reducing transient voltage spikes in industrial power applications.
Single and two-hole fixing types for distribution bus-bar mounting
Insulated plastic case types for flat surface mounting
High-mass large-diameter zinc oxide element
Repeatable protection against high-energy transient voltages
Operating Temperature Range: -40°C → +85°C
Insulated plastic case types for flat surface mounting
High-mass large-diameter zinc oxide element
Repeatable protection against high-energy transient voltages
Operating Temperature Range: -40°C → +85°C
