VLMU3500-405-060 Vishay, VLMU3500 Series UV LED, 410nm 1250mW 60 °, 3-Pin Surface Mount package

  • RS Stock No. 133-6088
  • Mfr. Part No. VLMU3500-405-060
  • Brand Vishay
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

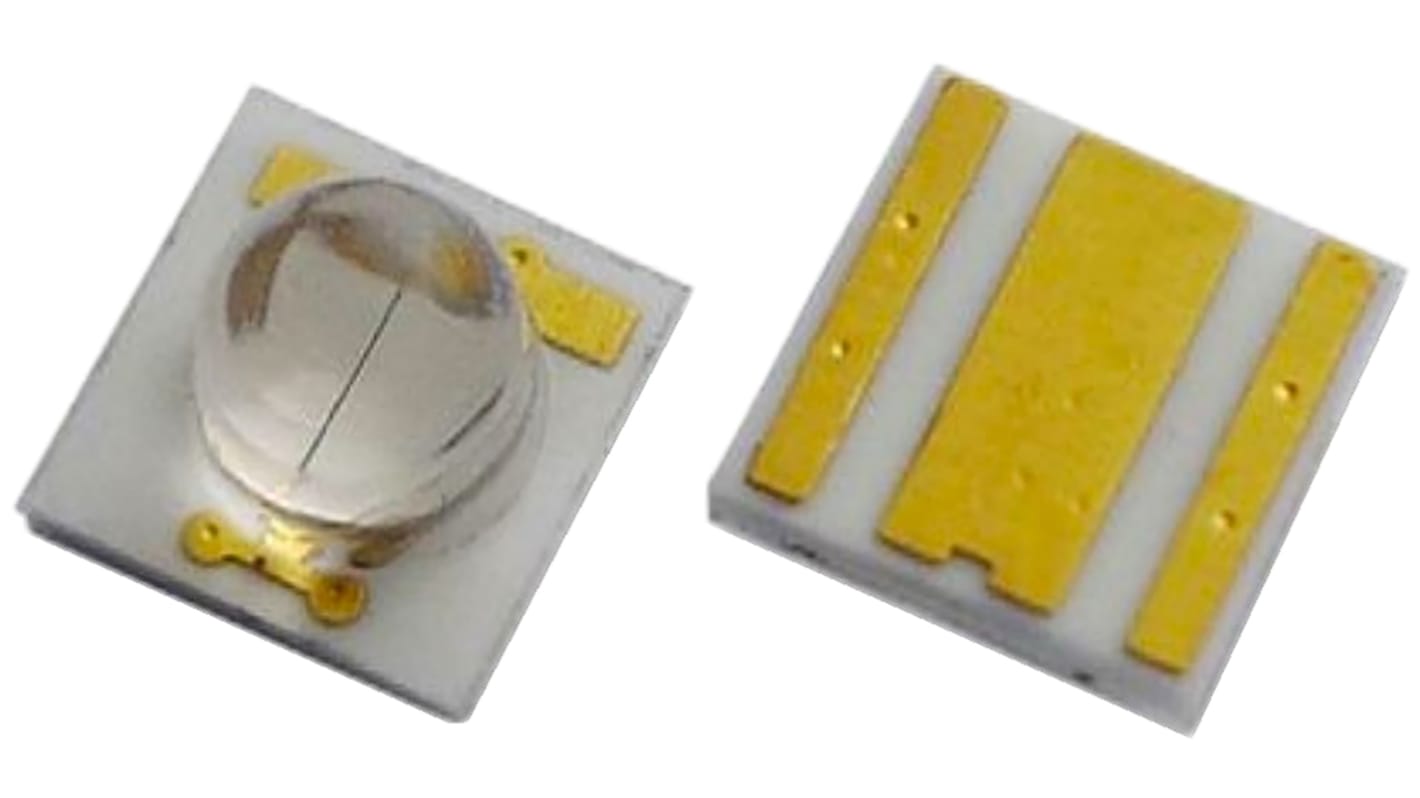

VLMU3500-...-060, Ultraviolet SMD LED with Silicone Lens

Ceramic SMT package with silicone lensUp to 700 mA forward current780 mW at 500 mA radiant power typical±30° Angle of half intensityDimensions 3.5 x 3.5 x 2.9 mm

Ultraviolet (UV) LEDs, Vishay

Specifications
Attribute Value
Number of LEDs 1
Peak Wavelength 410nm
Radiant Flux 1250 mW @ 700 mAmW
Viewing Angle 60 °
Lens Shape Dome
Number of Pins 3
LED Material InGaN
Mounting Type Surface Mount
Height 2.9mm
Length 3.5mm
Width 3.5mm
Dimensions 3.5 x 3.5 x 2.9mm
Series VLMU3500
100 In stock for FREE next working day delivery
Price Each (On a Reel of 100)
£ 4.05
(exc. VAT)
£ 4.86
(inc. VAT)
Units
Per unit
Per Reel*
100 - 200
£4.05
£405.00
300 +
£3.969
£396.90
*price indicative
