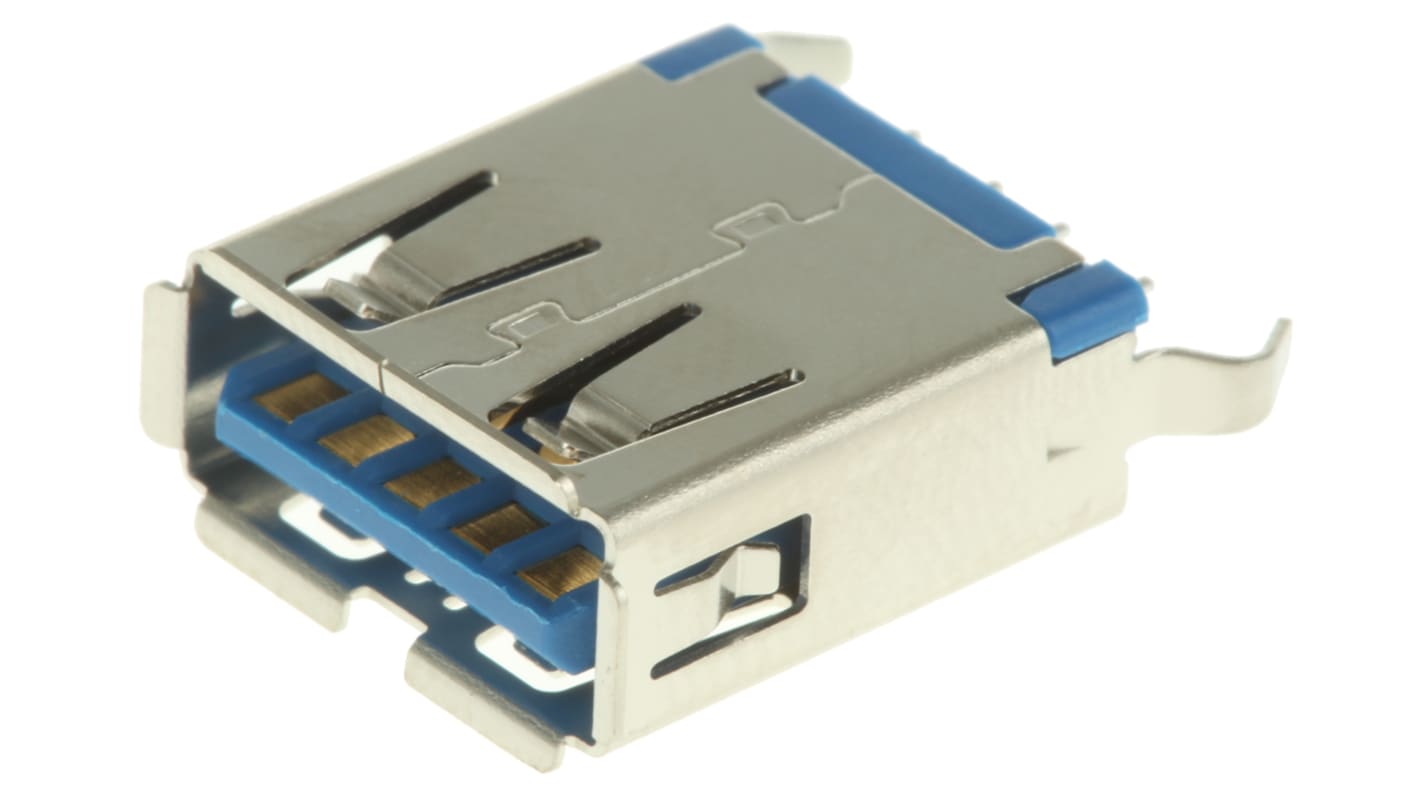

Amphenol FCI USB Connector, Through Hole, Socket 3.0 A, Solder, Straight- Single Port

  • RS Stock No. 769-3460
  • Mfr. Part No. 10117836-002LF
  • Brand Amphenol FCI
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

FCI Standard USB 3.0 Receptacles

A range of standard Right Angle and Vertical Type A, PCB Mount, USB 3.0 Receptacles with different contact area Gold plating options.

The USB 3.0 Receptacles from FCI provide high reliability and are compliant with all the physical, electrical and environmental requirements specified by the standard. These USB 3.0 standard A Receptacles are compatible with the USB 2.0 standard A and provide the additional pins required for superspeed USB signals. All USB 3.0 connectors are colour coded blue.

1011783x-001LF: 0.76 μm minimum contact area Gold plating, 3500 mating cycles
1011783x-002LF: Gold Flash contact area plating, 1500 mating cycles

FCI USB

Specifications
Attribute Value
Gender Female
USB Type A
Mounting Type Through Hole
Termination Method Solder
USB Version 3.0
Body Orientation Straight
Number of Ports 1
Current Rating 1.8A
Voltage Rating 30.0 V
Contact Material Copper Alloy
Minimum Operating Temperature -55.0°C
Maximum Operating Temperature +85°C
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price Each
£ 0.81
(exc. VAT)
£ 0.97
(inc. VAT)
Units
Per unit
1 - 24
£0.81
25 - 49
£0.45
50 - 99
£0.39
100 - 249
£0.38
250 +
£0.37
Not available for guaranteed pre 9am/10am delivery
