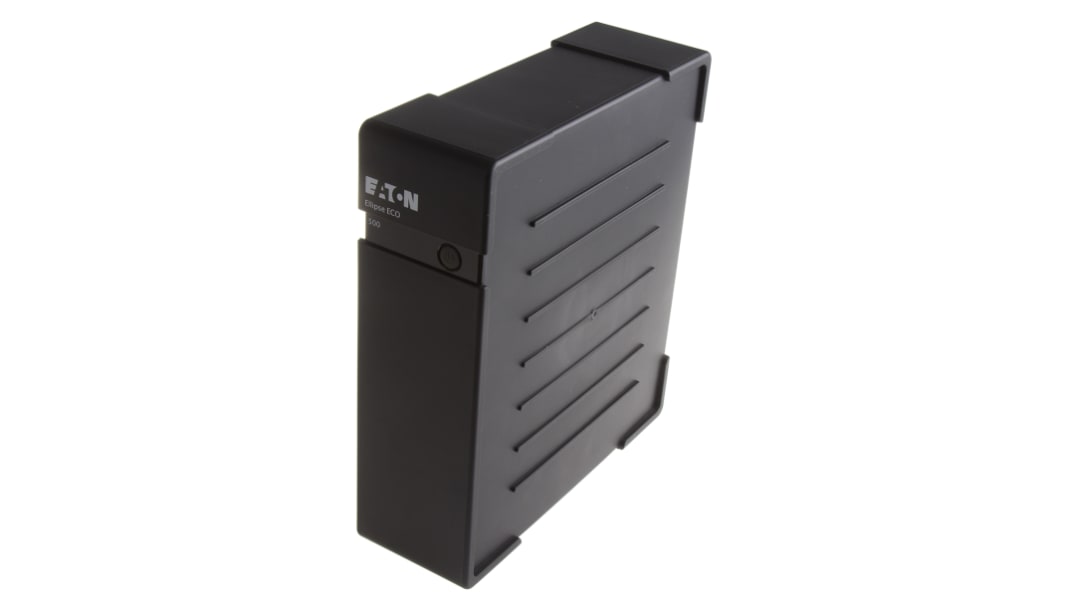

Eaton 161 → 284V Input Stand Alone Uninterruptible Power Supply, 500VA (300W), Ellipse ECO
- RS Stock No.:
- 745-1871
- Distrelec Article No.:
- 110-54-608
- Mfr. Part No.:
- EL500IEC Eaton Ellipse ECO 500 IEC
- Brand:
- Eaton
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 745-1871
- Distrelec Article No.:
- 110-54-608
- Mfr. Part No.:
- EL500IEC Eaton Ellipse ECO 500 IEC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Model | Ellipse ECO | |
Power Rating | 300W | |
VA Rating | 500VA | |
Output Voltage | 230V | |
Input Voltage | 161 → 284V | |
Mounting Type | Stand Alone | |
Number of Outlets | 4 | |
Type | Offline | |
Length | 263mm | |
Width | 81mm | |
Depth | 235mm | |
Plug Type | C14 | |
Select all | ||
---|---|---|
Brand Eaton | ||
Model Ellipse ECO | ||
Power Rating 300W | ||
VA Rating 500VA | ||
Output Voltage 230V | ||
Input Voltage 161 → 284V | ||
Mounting Type Stand Alone | ||
Number of Outlets 4 | ||
Type Offline | ||
Length 263mm | ||
Width 81mm | ||
Depth 235mm | ||
Plug Type C14 | ||
- COO (Country of Origin):
- CN
Eaton Uninterruptible Power Supply, 4 x IEC C13 Outlets, Surge Protection - EL500IEC
When you're keen to find an uninterruptible power supply with impressive eco credentials, look to this UPS module from Eaton. Its built-in lead-acid battery provides up to 4.5Ah of power that's ideal for keeping business computers and connected peripherals running through mains outages. There are four IEC C13 outlets for connecting up to four devices. If these connections are operating via Ethernet, coaxial or telephone wires, the data line protection feature ensures they stay online. Thanks to a 98% efficiency rating, this UPS wastes very little energy as heat, so you won't need a fan or a heatsink to keep it cool.
Features & Benefits
• Comes with companion software that's broadly compatible with all major operating systems (Windows 7, Vista, XP, Linux and macOS)
• Periodic self-testing means the battery will let you know when it needs to be replaced
• LED indication gives you at-a-glance updates for operating mode and battery status
• Surge protection safeguards you and any connected equipment from harmful voltage spikes
• Periodic self-testing means the battery will let you know when it needs to be replaced
• LED indication gives you at-a-glance updates for operating mode and battery status
• Surge protection safeguards you and any connected equipment from harmful voltage spikes
How energy efficient is this unit?
This UPS has an efficient electrical design and Eco Control function that automatically disables peripherals when the master device is turned off. It cuts energy use by up to 25%.
