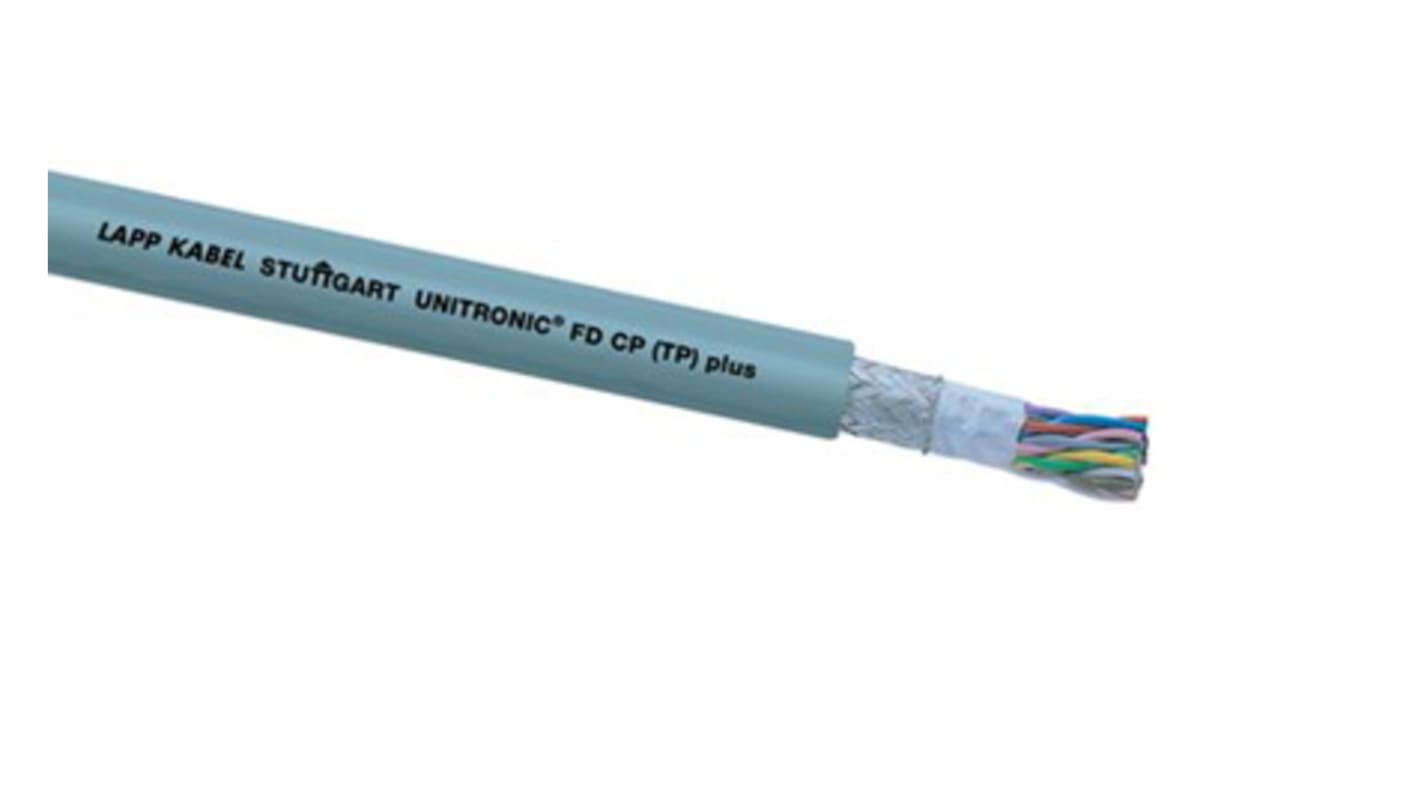

Lapp Twisted Pair Data Cable, 4 Pairs, 0.5 mm², 8 Cores, 20 AWG, Screened, Grey Sheath

RS Stock No.:: 807-8972
Mfr. Part No.:: 0030939
Brand:: Lapp

Lapp Twisted Pair Data Cable, 4 Pairs, 0.5 mm², 8 Cores, 20 AWG, Screened, Grey Sheath

Discontinued product

Alternative

This product is not currently available. Here is our alternative recommendation.

Lapp Round Data Cable, 0.5 mm2, 8 Cores, 20, Screened, 100m, Grey Sheath

RS Stock No.: 280-2810

Price 1 Reel of 100 Metre(s)

£884.02

(exc. VAT)

£1,060.82

(inc. VAT)

RS Stock No.:: 807-8972
Mfr. Part No.:: 0030939
Brand:: Lapp

Unitronic FD CP Powerchain Cable

From Lapp, this Unitronic series cable is optimized for use in power chains. With a high degree of mechanical and torsion resistance, this highly flexible cable is well suited for dynamic applications.

The Unitronic data transmission cable is comprised of extra-fine strands of bare copper wire in a special PUR outer sheath that is resistant to tears, notches and oil. Coupled with a wide operating temperature range, the cable is suitable for the kind of challenging environments where drag train and carrier machinery may be used.

Furthermore, this industrial cable features screened tinned copper braiding, offering EMI resistance for environments where electromagnetic interference is a concern. It is also halogen free and flame-retardant, for increased safety.

With great flexural strength, the Unitronic Powerchain FD CP data cable allows easy installation and modifications where necessary, and is a popular choice for industrial cables in power chain use.

Features & Benefits

• Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
• Overall braid minimises electrical interference
• Wide temperature range for applications in harsh climatic environments
• Cold Resistant and flexible at low temperatures
• Flame retardant to IEC 60332-1-2, VW-1, FT2
• Halogen-free
• Increased oil, abrasion & cut resistance
• Great flexural strength
• Microbe & hydrolysis resistance

Applications

Due to its flexibility and torsion resistance, the Unitronic Powerchain cable is well suited to any process that requires movement, such as linear robots. It is also ideal for torsional applications such as in wind turbine generators.

• Measuring, control and regulating circuits
• Drag trains for horizontal travel up to 100 meters
• Automated Handling Equipment

Accessories

Lapp Unitronic cables are best used with accessories that match their capabilities, and a range of appropriate cable glands are available.

• 136-8515 is an M12 Skintop Halogen Free EMC Cable Gland
• 136-8516 is an M16 Skintop Halogen Free EMC Cable Gland
• 136-8517 is an M20 Skintop Halogen Free EMC Cable Gland
• 136-8518 is an M25 Skintop Halogen Free EMC Cable Gland
• 136-8519 is an M32 Skintop Halogen Free EMC Cable Gland

Attribute	Value
Number of Pairs	4
Cross Sectional Area	0.5 mm²
Number of Cores	8
American Wire Gauge	20 AWG
Screened/Unscreened	Screened
Shield Type	S/UTP
Sheath Colour	Grey
Cable Type	FD CP
Outer Diameter	10.7mm
Outer Sheath Material	PUR
Cable Shape	Twisted Pair
Voltage Rating	250 V
Shielded/Unshielded	Shielded
Fire Behaviour	Flame Retardant
Standards Met	IEC60332-1
Series	UNITRONIC
