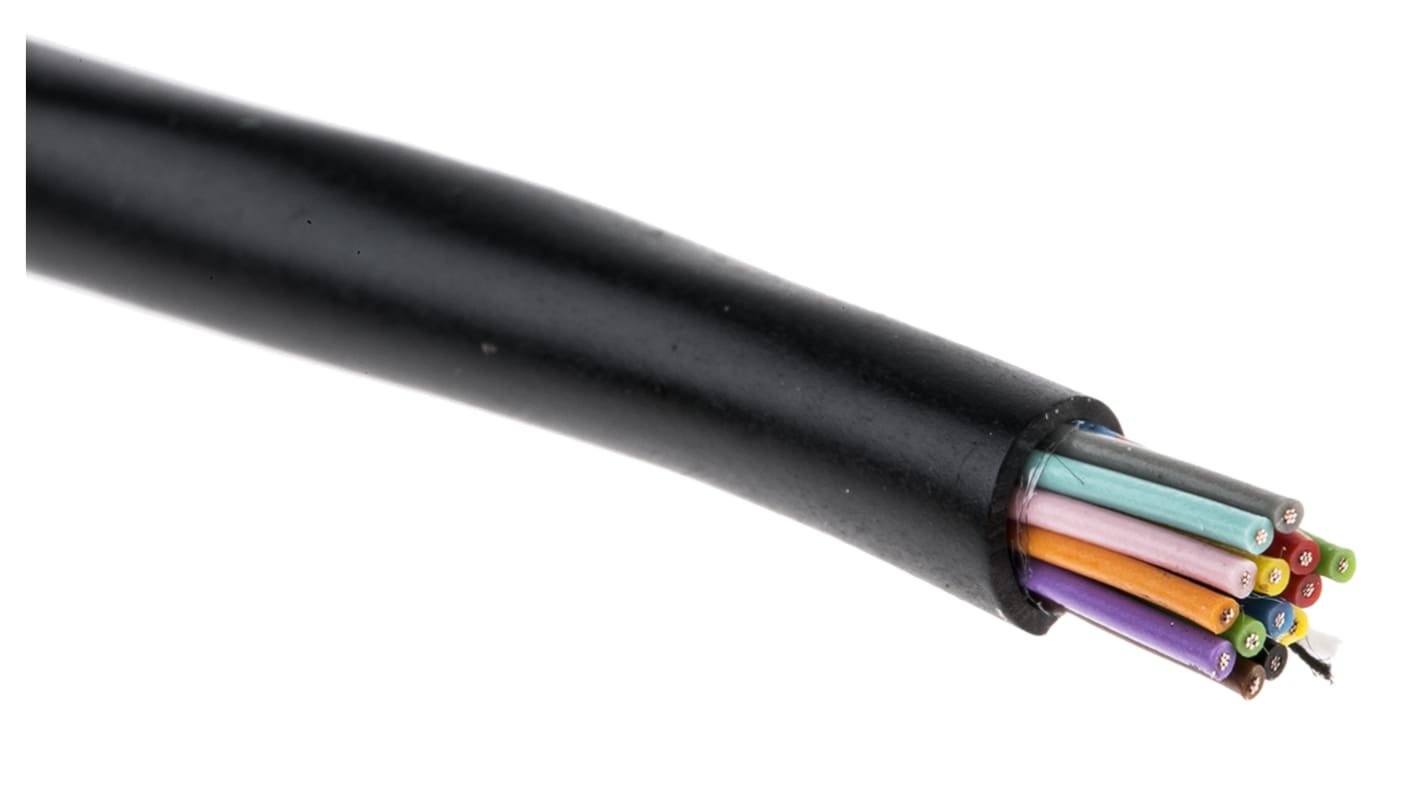

RS PRO Data Cable, 15 Cores, 0.055 mm², Unscreened, 30 AWG, 100m
- RS Stock No.:
- 660-4002
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 660-4002
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.055 mm² | |
| Number of Cores | 15 | |
| American Wire Gauge | 30 AWG | |
| Screened/Unscreened | Unscreened | |
| Length | 100m | |
| Sheath Colour | Black | |
| Outer Diameter | 4.2mm | |
| Outer Sheath Material | PVC | |
| Voltage Rating | 250 V | |
| Core Strands | 7/0.1 mm | |
| Shielded/Unshielded | Unshielded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.055 mm² | ||
Number of Cores 15 | ||
American Wire Gauge 30 AWG | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
Sheath Colour Black | ||
Outer Diameter 4.2mm | ||
Outer Sheath Material PVC | ||
Voltage Rating 250 V | ||
Core Strands 7/0.1 mm | ||
Shielded/Unshielded Unshielded | ||
RS PRO multicore unscreened industrial cable
From RS PRO, comes a range of great value multicore unscreened industrial cables. Manufactured to industry standards, these great value cables are a fantastic solution for a variety of electrical equipment and applications. All the models available in this range are excellent quality and highly reliable.
Features and benefits:
- 7/0.1 mm core strands
- Premium quality copper conductor
- 0.055 mm² and 0.06 mm²
- Flame retardant
- Outer black PVC sheath which shields it from the elements and eliminates low impact damage
- Maximum operating temperature of +80 °C
Applications
Multicore cables have a range of applications such as;
Factory control equipment
Entertainment industry
Control pads
Factory control equipment
Entertainment industry
Control pads
What is the difference between screened and unscreened cables?
Screened share a lot in common with unscreened cables however screened cables emit less electromagnetic energy which can cause signal interference with cables that are nearby.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions
Warning
These cables are not to be regarded as power cables, or cables for the direct connection of equipment to mains power supplies.
RS Pro Unscreened Industrial Cable
From RS Pro, this unscreened multicore cable is suitable for a range of applications. A cable which has a multicore is a great addition in environments where cable connections require a neatly organised layout. If an area doesn't have much space, or is fully visible to customers/public, multicore cable considerably reduces tripping hazards and improves the overall appearance of electrical equipment. All models are highly reliable and excellent quality.
Features and Benefits
• Maximum working voltage 250V
• Maximum current per core 0.25A
• Resistance per core 384Ω/km
• Rated Temperature: -20°C to 80 °C
• Black PVC outer sheath
• Tinned copper cores
What kind of protection do these cables have?
If safety and reliability is of paramount importance to your application, this unscreened cable can ensure complete confidence with that situation. Insulated within a black PVC sheath, protecting it from the elements and mild abrasion. Within the PVC cover itself, the multicores are protected by a tinned copper braid, ensuring that protection against normal wear and tear.
Who uses multi-core cable?
Due to the excellent conductor which copper makes, multicore cable has a huge variety of uses. The entertainment industry are common users of multicore cable for audio purposes. Commonly named within that application as a 'snake cable', mixers and various other audio equipment can essentially have one cable linked up to the device, as opposed to having varying wires running across the floor.
What is multicore cable used for?
Multicore cable can be used where ever versatility and reliable transmission is needed.Typical applications include;
• Entertainment and audio industry
• Machines and factory control equipment
• Large control pads
• DIN-Rail terminals
• Conveyor belts
What is multicore industrial cable?
Multicore cable is a type of electrical cable which includes more cores than a standard power or coaxial cable. They can be supplied in various lengths and the number of cores can vary significantly. Commonly used within industrial or entertainment applications, they can keep otherwise messy and disorganised cable connections tidy. The name is self descriptive, in the sense that they would be able to house cores from various types of electrical cable into one sheath, such as coaxial and power. Due to the layout and coloured cores from these RS Pro PVC cables, installation is easy and efficient.
What is the difference between shielded and unshielded cable?
Shielded cables will feature a layer of foil or braided shielding which can protect against electromagnetic interference, meaning they are suitable for use in EMI and RFI applications. Unshielded, or unscreened, cables have no such protection, and as such often present a cheaper more practical solution for applications where signal interference isn't a concern.
Features and Benefits
• Maximum working voltage 250V
• Maximum current per core 0.25A
• Resistance per core 384Ω/km
• Rated Temperature: -20°C to 80 °C
• Black PVC outer sheath
• Tinned copper cores
What kind of protection do these cables have?
If safety and reliability is of paramount importance to your application, this unscreened cable can ensure complete confidence with that situation. Insulated within a black PVC sheath, protecting it from the elements and mild abrasion. Within the PVC cover itself, the multicores are protected by a tinned copper braid, ensuring that protection against normal wear and tear.
Who uses multi-core cable?
Due to the excellent conductor which copper makes, multicore cable has a huge variety of uses. The entertainment industry are common users of multicore cable for audio purposes. Commonly named within that application as a 'snake cable', mixers and various other audio equipment can essentially have one cable linked up to the device, as opposed to having varying wires running across the floor.
What is multicore cable used for?
Multicore cable can be used where ever versatility and reliable transmission is needed.Typical applications include;
• Entertainment and audio industry
• Machines and factory control equipment
• Large control pads
• DIN-Rail terminals
• Conveyor belts
What is multicore industrial cable?
Multicore cable is a type of electrical cable which includes more cores than a standard power or coaxial cable. They can be supplied in various lengths and the number of cores can vary significantly. Commonly used within industrial or entertainment applications, they can keep otherwise messy and disorganised cable connections tidy. The name is self descriptive, in the sense that they would be able to house cores from various types of electrical cable into one sheath, such as coaxial and power. Due to the layout and coloured cores from these RS Pro PVC cables, installation is easy and efficient.
What is the difference between shielded and unshielded cable?
Shielded cables will feature a layer of foil or braided shielding which can protect against electromagnetic interference, meaning they are suitable for use in EMI and RFI applications. Unshielded, or unscreened, cables have no such protection, and as such often present a cheaper more practical solution for applications where signal interference isn't a concern.
Why RS Pro?
RS Pro strives to provide you with the choice and reliability you need in your workplace purchases. Whether for a small machine shop or large automated factory, RS Pro can furnish you with cabling solutions to suit your requirements.
Providing versatile and high-quality cables tested by our in house experts, RS Pro offers you an assurance of quality at competitive prices.
For workplace cabling in almost any industry, RS Pro has the solution you need.
Providing versatile and high-quality cables tested by our in house experts, RS Pro offers you an assurance of quality at competitive prices.
For workplace cabling in almost any industry, RS Pro has the solution you need.
Standards
Defence Standard 61 - 12 Parts 4 and 5
