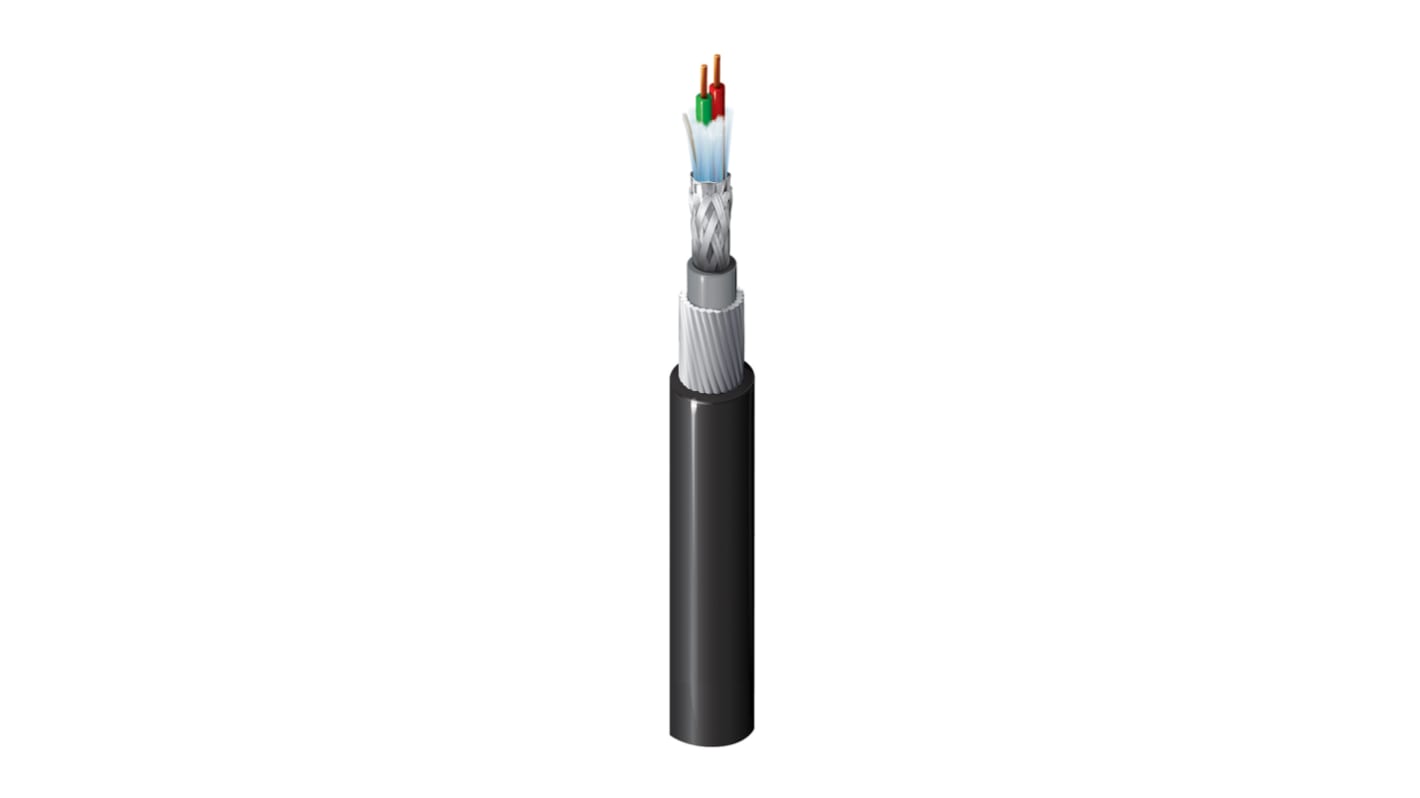

Belden 7010LS Series Data Cable, 1 Pairs, 2 Cores, 0.34 mm², Screened, 22 AWG, 500m, Tinned Copper Shield, PROFIBUS
- RS Stock No.:
- 162-3184
- Mfr. Part No.:
- 70101LS.01500
- Brand:
- Belden
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 500 Metre(s)
£1,056.62
(exc. VAT)
£1,267.94
(inc. VAT)
- RS Stock No.:
- 162-3184
- Mfr. Part No.:
- 70101LS.01500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Screened | |
| Length | 500m | |
| Shield Type | Tinned Copper | |
| Sheath Colour | Black | |
| Cable Type | PROFIBUS | |
| Outer Diameter | 7.8mm | |
| Outer Sheath Material | LSZH | |
| Characteristic Impedance | 150 Ω | |
| Minimum Operating Temperature | -15°C | |
| Fire Behaviour | Flame Retardant | |
| Voltage Rating | 300 V | |
| Shielded/Unshielded | Shielded | |
| Series | 7010LS | |
| Maximum Operating Temperature | +70°C | |
| Standards Met | IEC 60332-1-2 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Screened | ||
Length 500m | ||
Shield Type Tinned Copper | ||
Sheath Colour Black | ||
Cable Type PROFIBUS | ||
Outer Diameter 7.8mm | ||
Outer Sheath Material LSZH | ||
Characteristic Impedance 150 Ω | ||
Minimum Operating Temperature -15°C | ||
Fire Behaviour Flame Retardant | ||
Voltage Rating 300 V | ||
Shielded/Unshielded Shielded | ||
Series 7010LS | ||
Maximum Operating Temperature +70°C | ||
Standards Met IEC 60332-1-2 | ||
- COO (Country of Origin):
- NL
PROFIBUS 22 AWG Solid no halogen inner and outer jacket, steel wire armoured
