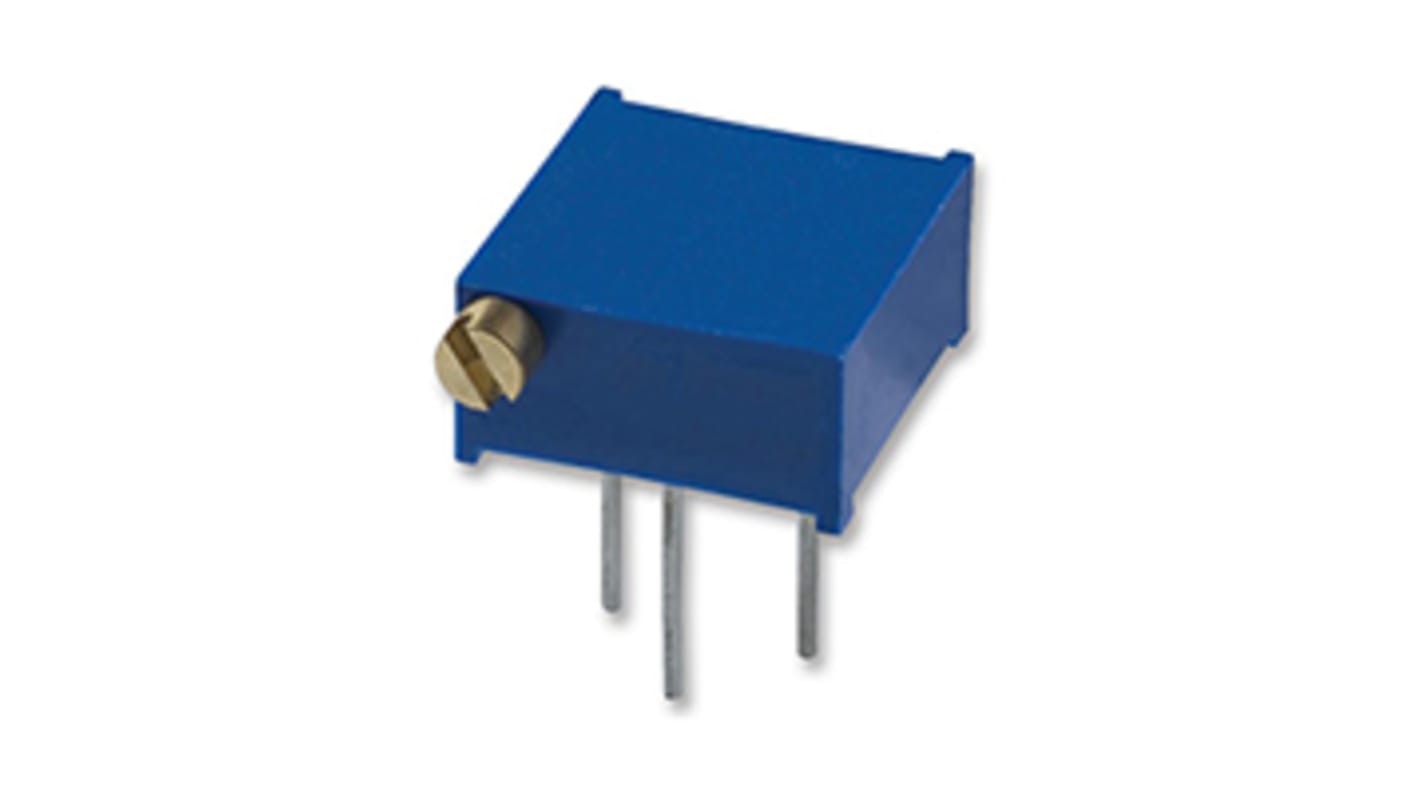

10kΩ, Through Hole Trimmer Potentiometer 0.25W Side Adjust Vishay, T63
- RS Stock No.:
- 850-9621
- Mfr. Part No.:
- T63ZB103KT20
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 850-9621
- Mfr. Part No.:
- T63ZB103KT20
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Maximum Resistance | 10kΩ | |
| Mounting Type | Through Hole | |
| Number of Turns | 14 (Electrical), 15 (Mechanical) | |
| Orientation | Side Adjust | |
| Power Rating | 0.25W | |
| Series | T63 | |
| Termination Style | PC Pin | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/°C | |
| Shaft Diameter | 1.8 mm | |
| Length | 6.8mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +155°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Maximum Resistance 10kΩ | ||
Mounting Type Through Hole | ||
Number of Turns 14 (Electrical), 15 (Mechanical) | ||
Orientation Side Adjust | ||
Power Rating 0.25W | ||
Series T63 | ||
Termination Style PC Pin | ||
Tolerance ±10% | ||
Temperature Coefficient ±100ppm/°C | ||
Shaft Diameter 1.8 mm | ||
Length 6.8mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +155°C | ||
- COO (Country of Origin):
- US
Vishay T63 Series
Vishay T63 series are ideally suited for PCB use, due to their compact square shape and size these multi-turn trimmers enable high density boards mounting with reduced space requirements between cards.
Industrial grade
Multi-turn operation
Low contact resistance
High Stability
Multi-turn operation
Low contact resistance
High Stability
