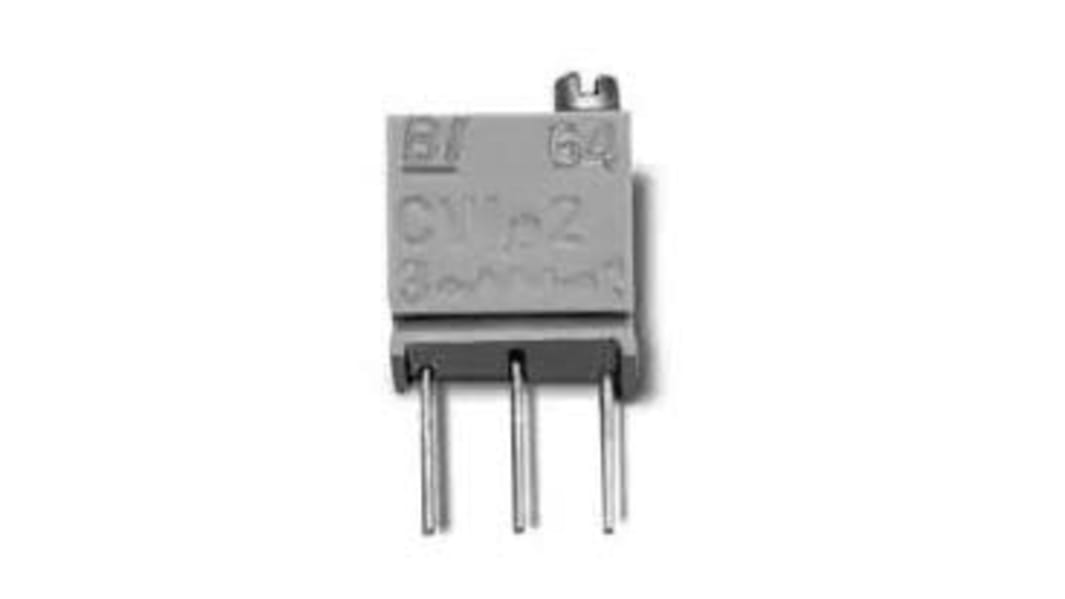

50kΩ, Through Hole Trimmer Potentiometer 0.25 W @ 85 °C Top Adjust TT ElectronicsBI, 64
- RS Stock No.:
- 144-2109
- Mfr. Part No.:
- 64YR50KLF
- Brand:
- TT Electronics/BI
1 / 1
Bulk discount available
Subtotal (1 tube of 50 units)**
£106.80
(exc. VAT)
£128.15
(inc. VAT)
50 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Tube** |
|---|---|---|
| 50 - 200 | £2.136 | £106.80 |
| 250 + | £1.97 | £98.50 |
**price indicative
- RS Stock No.:
- 144-2109
- Mfr. Part No.:
- 64YR50KLF
- Brand:
- TT Electronics/BI
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TT Electronics/BI | |
| Maximum Resistance | 50kΩ | |
| Mounting Type | Through Hole | |
| Number of Turns | 12 | |
| Orientation | Top Adjust | |
| Power Rating | 0.25 W @ 85 °C | |
| Series | 64 | |
| Termination Style | Solder Pin | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/°C | |
| Maximum Voltage Rating | 200 V dc | |
| Shaft Diameter | 1.78 (Metal Adjustment Screw) mm | |
| Length | 6.35mm | |
| Minimum Operating Temperature | -65°C | |
| Element Material | Cermet | |
| Maximum Operating Temperature | +150°C | |
