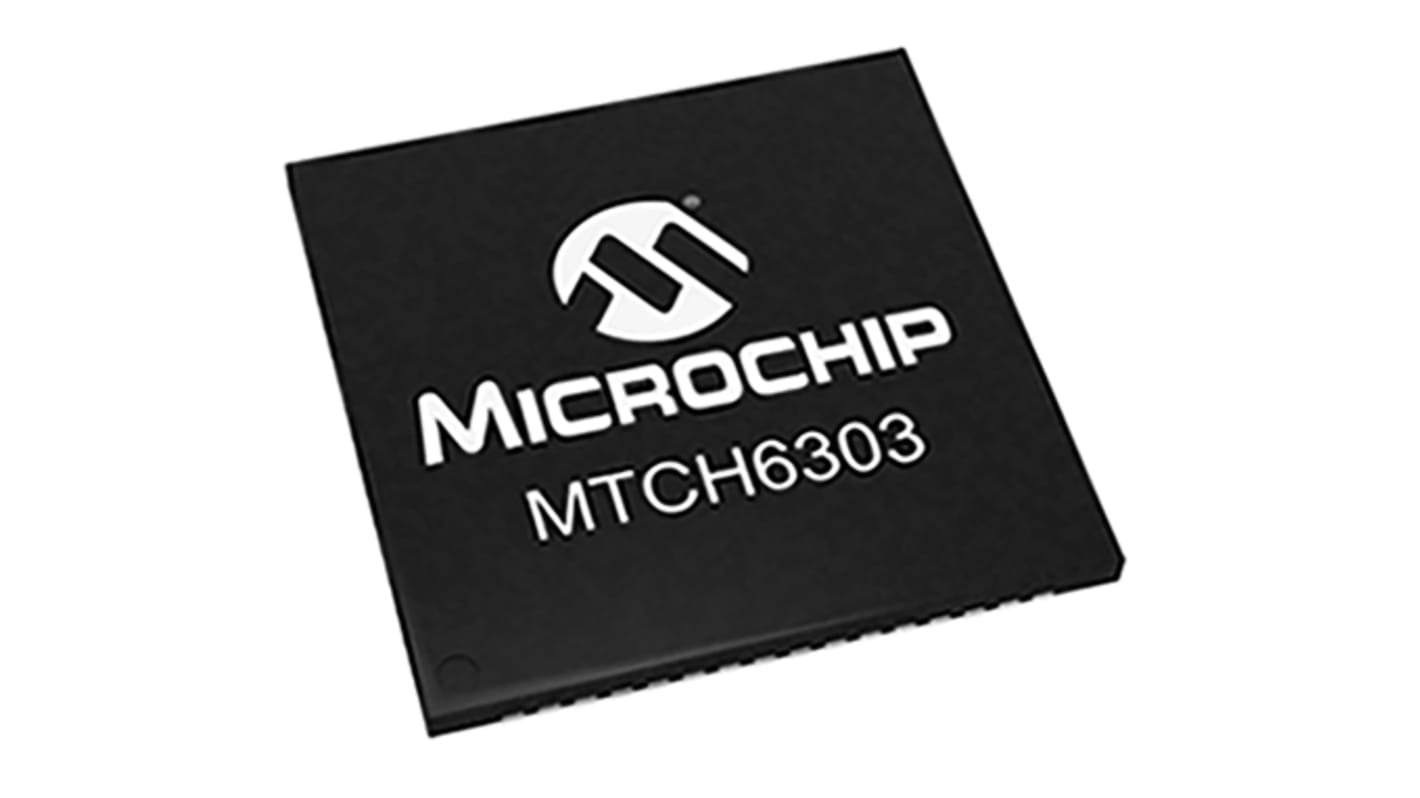

MTCH6303-I/RG, Capacitive Touch Screen Controller, 10 bit Serial-I2C, 64-Pin QFN
- RS Stock No.:
- 893-8284
- Mfr. Part No.:
- MTCH6303-I/RG
- Brand:
- Microchip
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 893-8284
- Mfr. Part No.:
- MTCH6303-I/RG
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Resolution | 10 bit | |
| Interface Type | Serial-I2C | |
| Sensing Technology | Capacitive | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 64 | |
| Typical Operating Supply Voltage | 2.3 3.6 V | |
| Dimensions | 9 x 9 x 0.9mm | |
| Length | 9mm | |
| Width | 9mm | |
| Height | 0.9mm | |
| Maximum Operating Temperature | +85 °C | |
| Priced to Clear | Yes | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Resolution 10 bit | ||
Interface Type Serial-I2C | ||
Sensing Technology Capacitive | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 64 | ||
Typical Operating Supply Voltage 2.3 3.6 V | ||
Dimensions 9 x 9 x 0.9mm | ||
Length 9mm | ||
Width 9mm | ||
Height 0.9mm | ||
Maximum Operating Temperature +85 °C | ||
Priced to Clear Yes | ||
Minimum Operating Temperature -40 °C | ||
MTCH6303 Multi-Touch Projected Capacitive Touch Controllers
The MTCH6303 from Microchip is a projected capacitive touch (PCAP/PCT) controller that offers multi-touch capability. Incorporated into the device is a ready-made multi-finger gesture suite that allows designers to add modern user interface interaction such as pinch and zoom, multi-finger scrolling and swipes to their designs.
The MTCH6303’s advanced signal processing provides noise-avoidance techniques and predictive tracking for ten fingers, typically at 100 Hz each for five touches. This device is designed to operate with Microchip’s MTCH652 High-voltage Line Driver, offering an excellent signal-to-noise ratio (SNR) for outstanding touch performance in noisy environments.
The MTCH6303’s advanced signal processing provides noise-avoidance techniques and predictive tracking for ten fingers, typically at 100 Hz each for five touches. This device is designed to operate with Microchip’s MTCH652 High-voltage Line Driver, offering an excellent signal-to-noise ratio (SNR) for outstanding touch performance in noisy environments.
Features
Multi-touch up to 10 touches
5 touches typically at 100Hz+ each
27RX x 19TX channels support approximately 8” touch screens (larger possible)
Combines with MTCH652 for superior signal-to-noise ratio (SNR)
Integrated single and multi-finger gesture recognition suite including taps, swipes, scrolling, and pinching and zooming
Advanced DSP processing provides noise avoidance techniques
USB & I2C communication
Supports 3D gestures up to 20cm when combined with the MGC3130 GestIC® controller
5 touches typically at 100Hz+ each
27RX x 19TX channels support approximately 8” touch screens (larger possible)
Combines with MTCH652 for superior signal-to-noise ratio (SNR)
Integrated single and multi-finger gesture recognition suite including taps, swipes, scrolling, and pinching and zooming
Advanced DSP processing provides noise avoidance techniques
USB & I2C communication
Supports 3D gestures up to 20cm when combined with the MGC3130 GestIC® controller
Note
This device is designed to be used in conjunction with Microchip’s MTCH652 Projected Capacitive Driver
