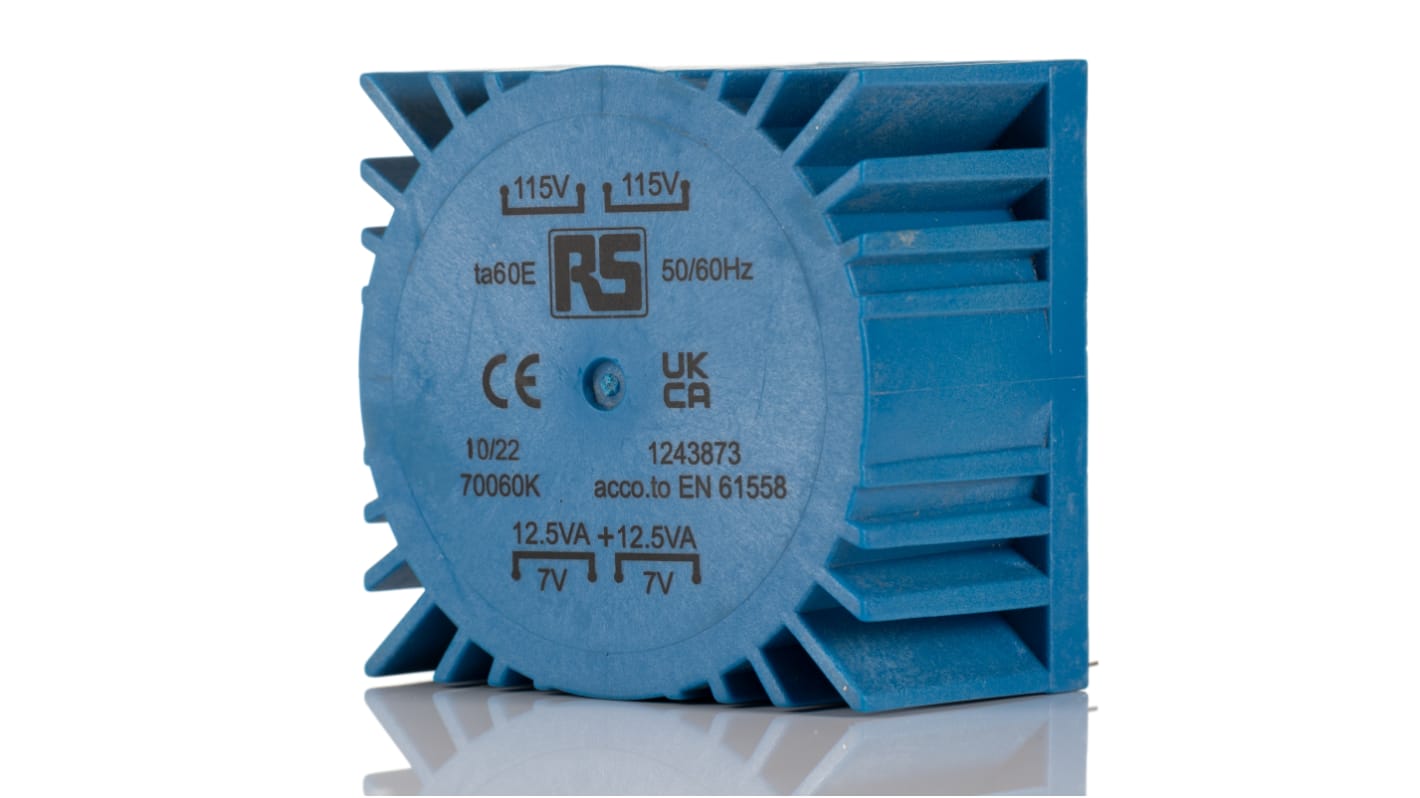

RS PRO 2 x 115V ac, 2 x 7V Toroidal Transformer, 25VA
- RS Stock No.:
- 124-3873
- Brand:
- RS PRO
66 In stock - FREE next working day delivery available
Added
Price Each
£19.64
(exc. VAT)
£23.57
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £19.64 |
| 5 - 9 | £17.65 |
| 10 - 24 | £16.90 |
| 25 + | £16.31 |
- RS Stock No.:
- 124-3873
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
|---|---|
| Primary Voltage Rating | 2 x 115V ac |
| Secondary Voltage Rating | 2 x 7V |
| Power Rating | 25VA |
| Secondary Current | 1.785A |
| Height | 37.5mm |
| Weight | 435g |
| Dimensions | 60 x 60 x 37.5mm |
| Maximum Operating Frequency | 50Hz |
| Mounting Type | Through Hole |
| Fixing Hole Diameter | M4 |
| Isolation Voltage | 4kV |
| Maximum Temperature | +60°C |
