- RS Stock No.:
- 819-9240
- Mfr. Part No.:
- MTA 306 H
- Brand:
- KNITTER-SWITCH
17 In stock - FREE next working day delivery available
Added
Price Each
£12.17
(exc. VAT)
£14.60
(inc. VAT)
Units | Per unit |
1 - 49 | £12.17 |
50 - 99 | £11.01 |
100 - 249 | £10.03 |
250 - 499 | £8.90 |
500 + | £7.52 |
- RS Stock No.:
- 819-9240
- Mfr. Part No.:
- MTA 306 H
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

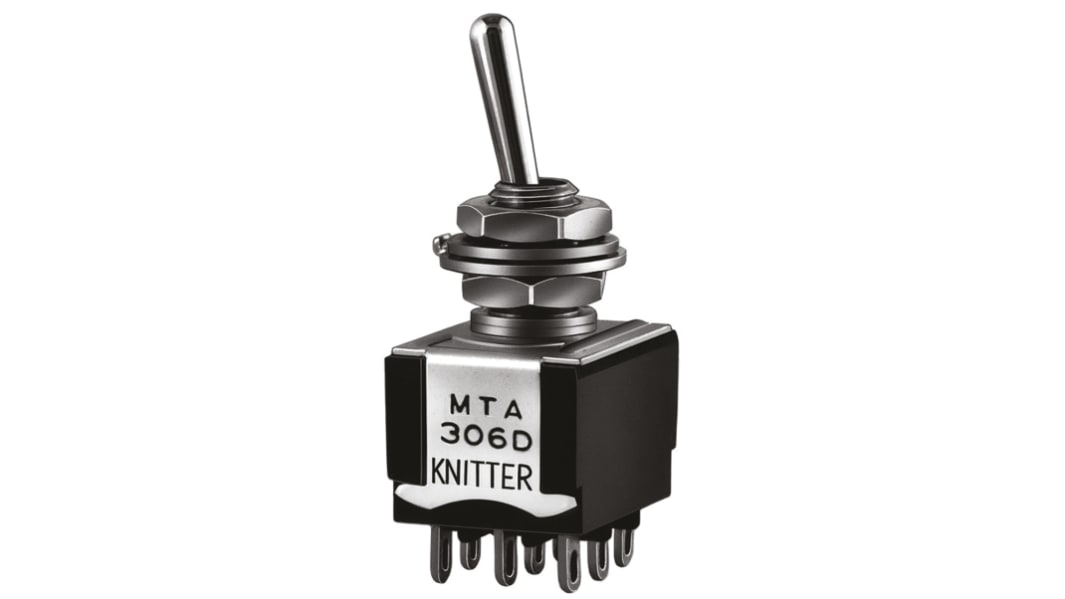

Knitter Switch Miniature Toggle Switches - MTA Series
2 and 3 position double pole panel mount toggle switches
Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Note
For biased switches '(on)' refers to momentary 'on' position
Specifications
Attribute | Value |
---|---|
Contact Configuration | 3PDT |
Switch Operation | On-Off-(On) |
Contact Current Rating | 4 A @ 30 V dc |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Panel Cut Out Diameter | 6.2mm |
Actuator Length | 10.5mm |
Panel Cut Out Size | 6.2mm |
Contact Material | Silver Plated Copper Alloy |
Contact Resistance | <0.01Ω |
Mechanical Life | 300000Operations |
Operating Temperature Range | -45 → +140°C |
Minimum Operating Temperature | -45°C |
Maximum Operating Temperature | +140°C |
- RS Stock No.:
- 819-9240
- Mfr. Part No.:
- MTA 306 H
- Brand:
- KNITTER-SWITCH
