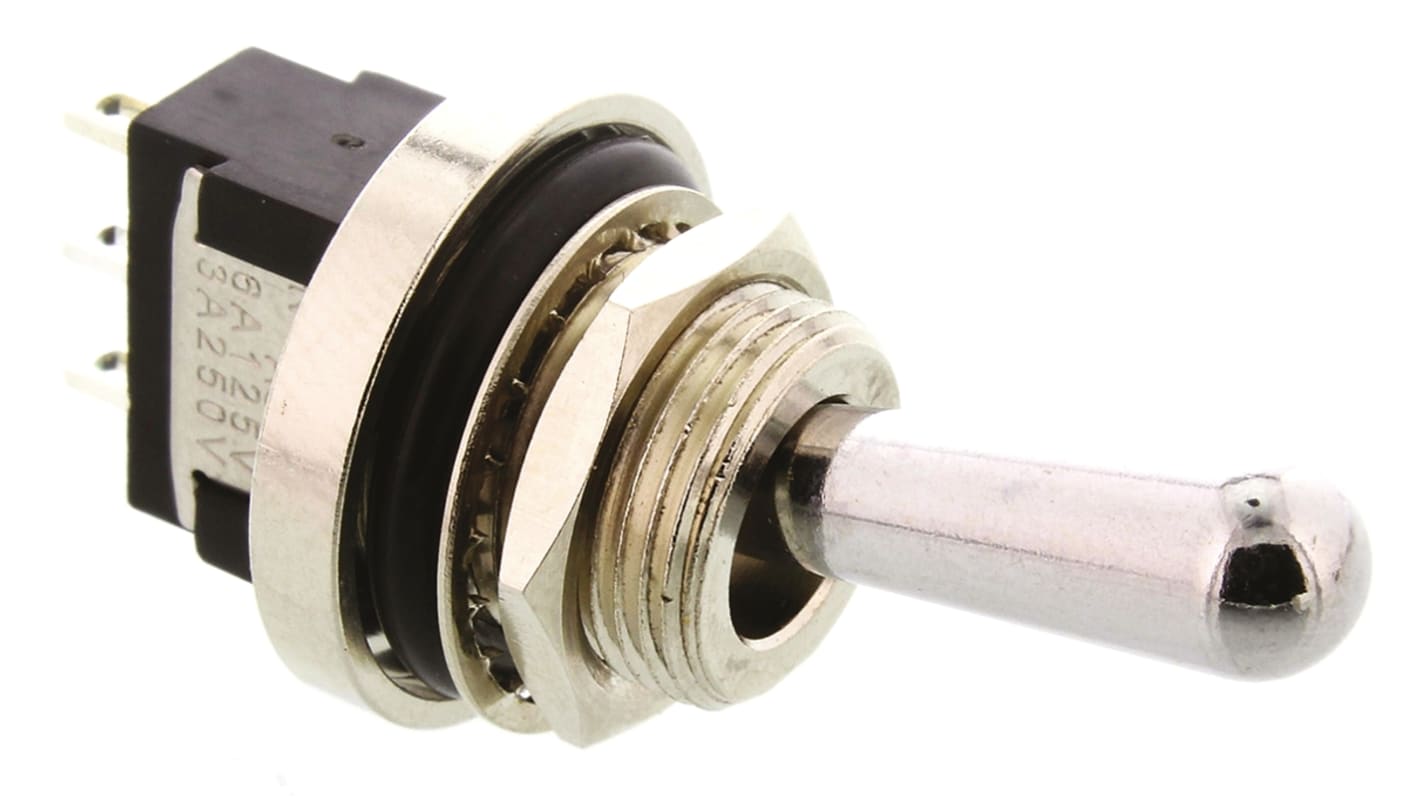

KNITTER-SWITCH Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal
- RS Stock No.:
- 702-3407
- Mfr. Part No.:
- MTW106E
- Brand:
- KNITTER-SWITCH
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 702-3407
- Mfr. Part No.:
- MTW106E
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 4 A @ 30 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Actuator Length | 17mm | |
| Contact Material | Silver Plated Copper Alloy | |
| Contact Resistance | 10mΩ | |
| Operating Temperature Range | -45 → +140°C | |
| Maximum Operating Temperature | +140°C | |
| Minimum Operating Temperature | -45°C | |
| Mechanical Life | 100000Operations | |
Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration SPDT | ||
Switch Operation On-Off-On | ||
Contact Current Rating 4 A @ 30 V dc | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Actuator Length 17mm | ||
Contact Material Silver Plated Copper Alloy | ||
Contact Resistance 10mΩ | ||
Operating Temperature Range -45 → +140°C | ||
Maximum Operating Temperature +140°C | ||
Minimum Operating Temperature -45°C | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- CN
Mustang Toggle Switches - MTW Series
Neoprene O-rings between toggle/bushing and bushing/panel
Mounting: Bushing 15/32-32 THD locking through flat bush, key 14 mm
Insulation resistance > 1000 MΩ @ 500 Vdc
Mounting: Bushing 15/32-32 THD locking through flat bush, key 14 mm
Insulation resistance > 1000 MΩ @ 500 Vdc
Note
For sealing cap see stock no 702-3700
