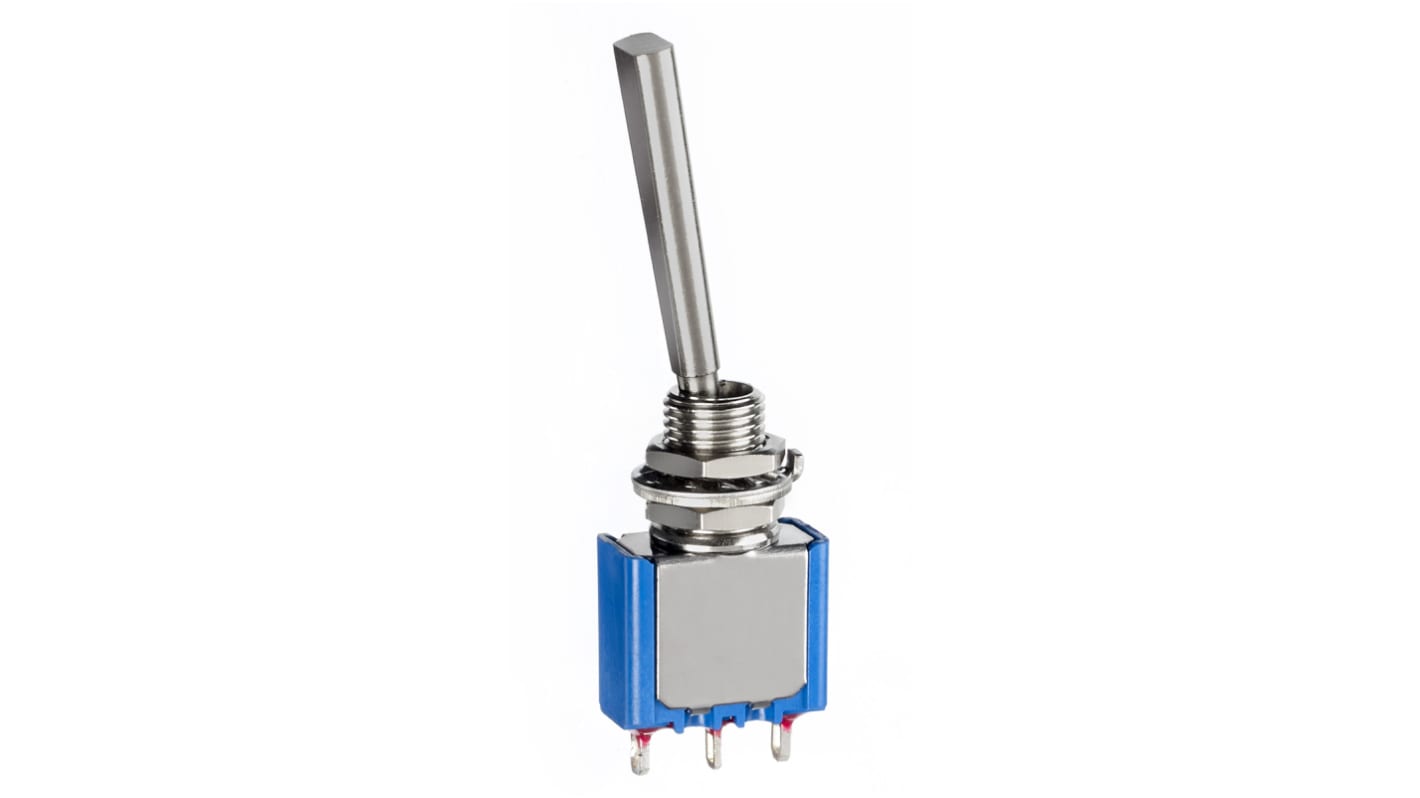

APEM Toggle Switch, Panel Mount, On-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac

RS Stock No.:: 165-1444
Mfr. Part No.:: 5632AB-8
Brand:: APEM

APEM Toggle Switch, Panel Mount, On-(On), SPDT, Solder Lug Terminal, 30 V dc, 125V ac

9 In stock - FREE next working day delivery available

Added

Price Each

£9.28

(exc. VAT)

£11.14

(inc. VAT)

Units	Per unit
1 - 24	£9.28
25 - 49	£8.41
50 - 99	£8.11
100 - 249	£7.81
250 +	£7.55

RS Stock No.:: 165-1444
Mfr. Part No.:: 5632AB-8
Brand:: APEM

Technical Reference

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

The widest range in Miniature toggle Switches Diameter 6.35 mm Available in a wide model & amp options

17 actuators including toggles, paddle Levers and Locking levers in Different lengths
5 contact materials from dry circuits 6A 125VAC and high inrush up to 120A 2ms
8 functions including maintained and momentary versions
1 to 4 pole configurations
12 terminal types including 9 for PC board mounting others types include quick connect and wire-wrap
3 types of Finish including military black
4 types of sealing of terminal or front panel requirements
Numerous accessories available for actuator and bushing options

Specifications

Attribute	Value
Contact Configuration	SPDT
Switch Operation	On-(On)
Contact Current Rating	3 A @ 250 V ac, 4 A @ 30 V dc, 6 A @ 125 V ac
Mounting Type	Panel Mount
Terminal Type	Solder Lug
Illuminated	No
Panel Cut Out Diameter	6.5mm
Actuator Length	21.3mm
Actuator Material	Chrome Plated Brass
Voltage Rating	30 V dc, 125 V ac, 250V ac
Panel Cut Out Size	6.5 Dia.mm
Contact Resistance	10mΩ
Contact Material	Silver
Standards Met	CECC 96201-007, CSA, cULus Recognised, UL Listed, VDE
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C
