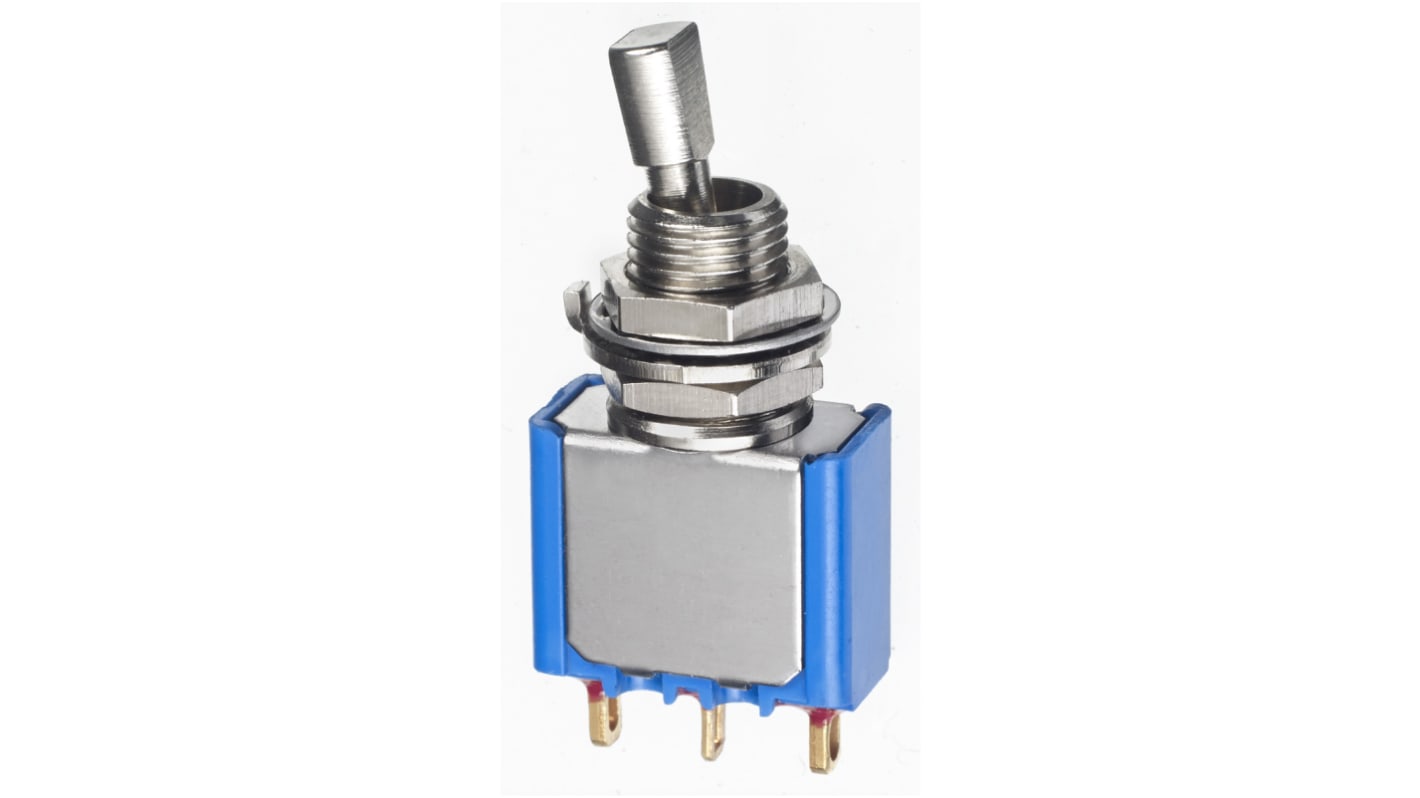

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Lug Terminal, 20V ac/dc
- RS Stock No.:
- 123-2402
- Mfr. Part No.:
- 5637CDB12
- Brand:
- APEM
Discontinued product
- RS Stock No.:
- 123-2402
- Mfr. Part No.:
- 5637CDB12
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Apem 5000 Series Short Flat Toggle Switch
Apem 5000 series of short lever toggle switches provide a reliable & robust solution to a wide variety of applications. Contacts on the toggle switches are either brass or silver, offering a well-suited product for your application.
Features and Benefits
Provided in silver & brass terminal materials.
Offered in 1 to 4 pole variants.
Various terminal options to ensure your application is covered.
Momentary and latching options available.
Provided in silver & brass terminal materials.
Offered in 1 to 4 pole variants.
Various terminal options to ensure your application is covered.
Momentary and latching options available.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 0.4VA |
| Mounting Type | Panel Mount |
| Terminal Type | Solder Lug |
| Illuminated | No |
| Panel Cut Out Diameter | 6.5mm |
| Actuator Length | 6.3mm |
| Actuator Material | Brass |
| Voltage Rating | 20V ac/dc |
| Panel Cut Out Size | 6.5 (Dia.)mm |
| Contact Resistance | 10mΩ |
| Contact Material | Gold Plated Brass |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Standards Met | CECC 96201-007, CSA, UL, UL Recognised, VDE |
