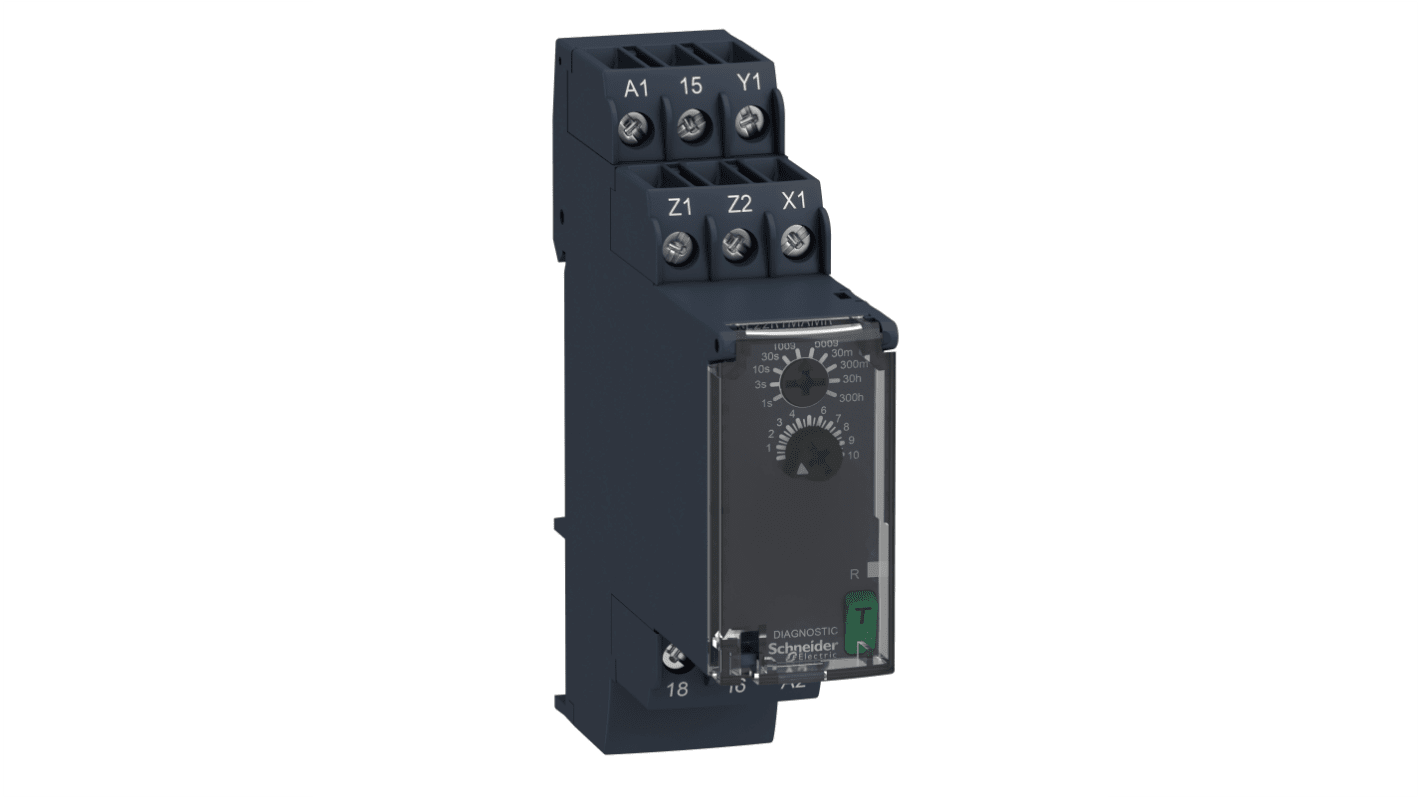

Schneider Electric Harmony Time Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 → 1s,
- RS Stock No.:
- 897-6716
- Distrelec Article No.:
- 303-02-783
- Mfr. Part No.:
- RE22R1MAMR
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£88.54
(exc. VAT)
£106.25
(inc. VAT)
FREE delivery for orders over £50.00
- 4 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 14 November 2025
Units | Per unit |
|---|---|
| 1 + | £88.54 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 897-6716
- Distrelec Article No.:
- 303-02-783
- Mfr. Part No.:
- RE22R1MAMR
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Supply Voltage | 24 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | ON Delay | |
| Time Range | 0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 8A | |
| Maximum Voltage | 240V ac/dc | |
| Terminal Type | Screw | |
| Switch Configuration | SPCO | |
| Power Supply | External | |
| Minimum Voltage | 24V ac/dc | |
| Width | 90mm | |
| Minimum Current | 10mA | |
| Depth | 79.5mm | |
| Series | Harmony Time | |
| Better World Verification | Green Premium | |
| Length | 22.9mm | |
| Better World Product | Yes | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Time Delay | <100ms | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation ON Delay | ||
Time Range 0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 8A | ||
Maximum Voltage 240V ac/dc | ||
Terminal Type Screw | ||
Switch Configuration SPCO | ||
Power Supply External | ||
Minimum Voltage 24V ac/dc | ||
Width 90mm | ||
Minimum Current 10mA | ||
Depth 79.5mm | ||
Series Harmony Time | ||
Better World Verification Green Premium | ||
Length 22.9mm | ||
Better World Product Yes | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Time Delay <100ms | ||
- COO (Country of Origin):
- ID
On-Delay Timers- RE22 Series
Screw terminals connection
Operating voltage of 24 → 240 V ac
State indication by LED
Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1
Operating temperature of -20 → 60 °C
Self-extinguishing housing
Ingress protection of IP50 (front face), IP40 (housing) and IP20 (terminal block)
