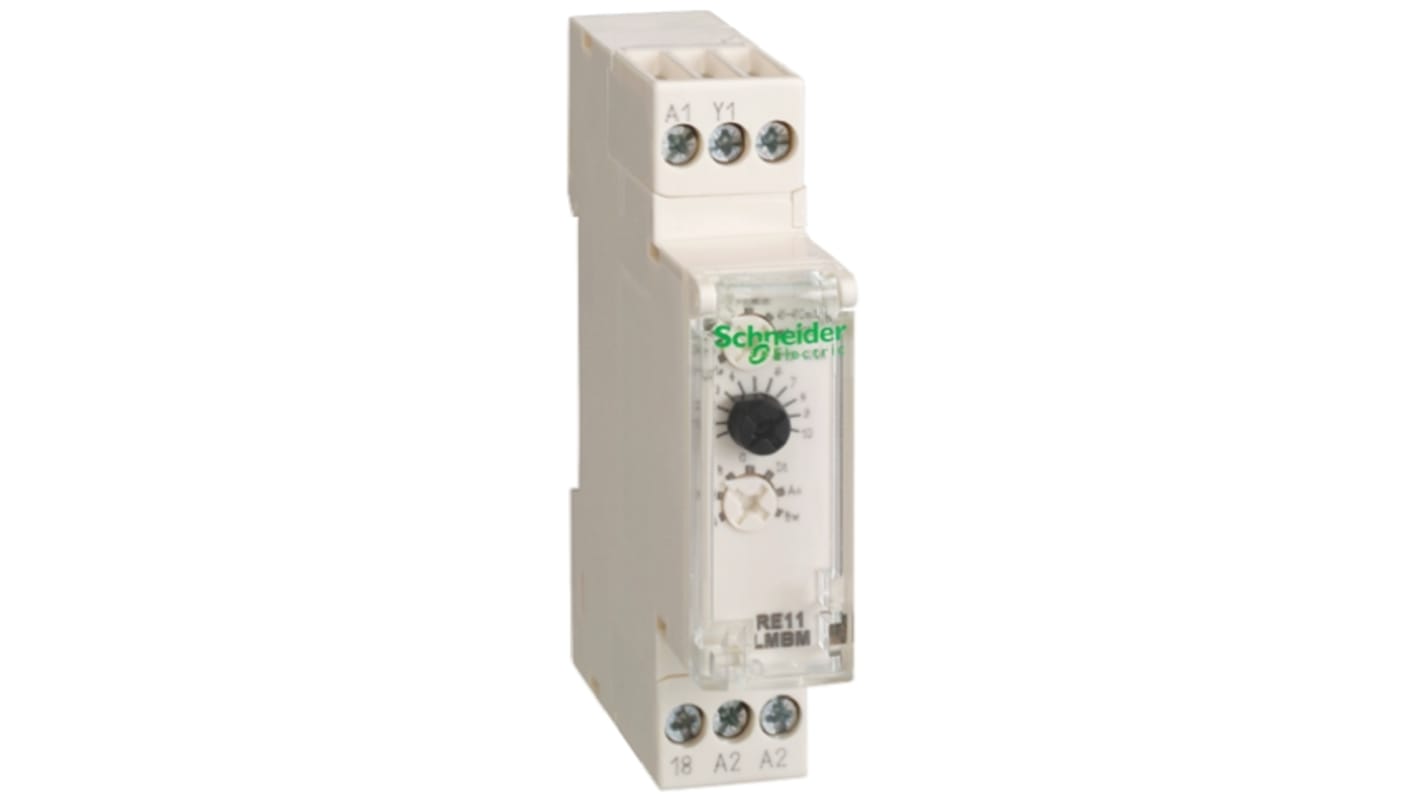

10 Function Time Delay Relay 24-240 Vac
- RS Stock No.:
- 738-8647
- Mfr. Part No.:
- RE11 LM BM
- Brand:
- Schneider Electric
Image representative of range
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.86
(exc. VAT)
£43.03
(inc. VAT)
- RS Stock No.:
- 738-8647
- Mfr. Part No.:
- RE11 LM BM
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Supply Voltage | 24 → 240V ac | |
| Mounting Type | DIN Rail | |
| Time Range | 0.1 → 1 h, 0.1 → 1 s, 0.1 → 10 min, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100h | |
| Number of Timer Functions | Multi Function | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Voltage | 250V ac/dc | |
| Terminal Type | Screw | |
| Width | 17.9mm | |
| Minimum Voltage | 10V dc | |
| Maximum Operating Temperature | +60°C | |
| Length | 81mm | |
| Depth | 72mm | |
| Time Delay | 350ms | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Supply Voltage 24 → 240V ac | ||
Mounting Type DIN Rail | ||
Time Range 0.1 → 1 h, 0.1 → 1 s, 0.1 → 10 min, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100h | ||
Number of Timer Functions Multi Function | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Voltage 250V ac/dc | ||
Terminal Type Screw | ||
Width 17.9mm | ||
Minimum Voltage 10V dc | ||
Maximum Operating Temperature +60°C | ||
Length 81mm | ||
Depth 72mm | ||
Time Delay 350ms | ||
Minimum Operating Temperature -20°C | ||
Approvals
CSA, CULus, CE
