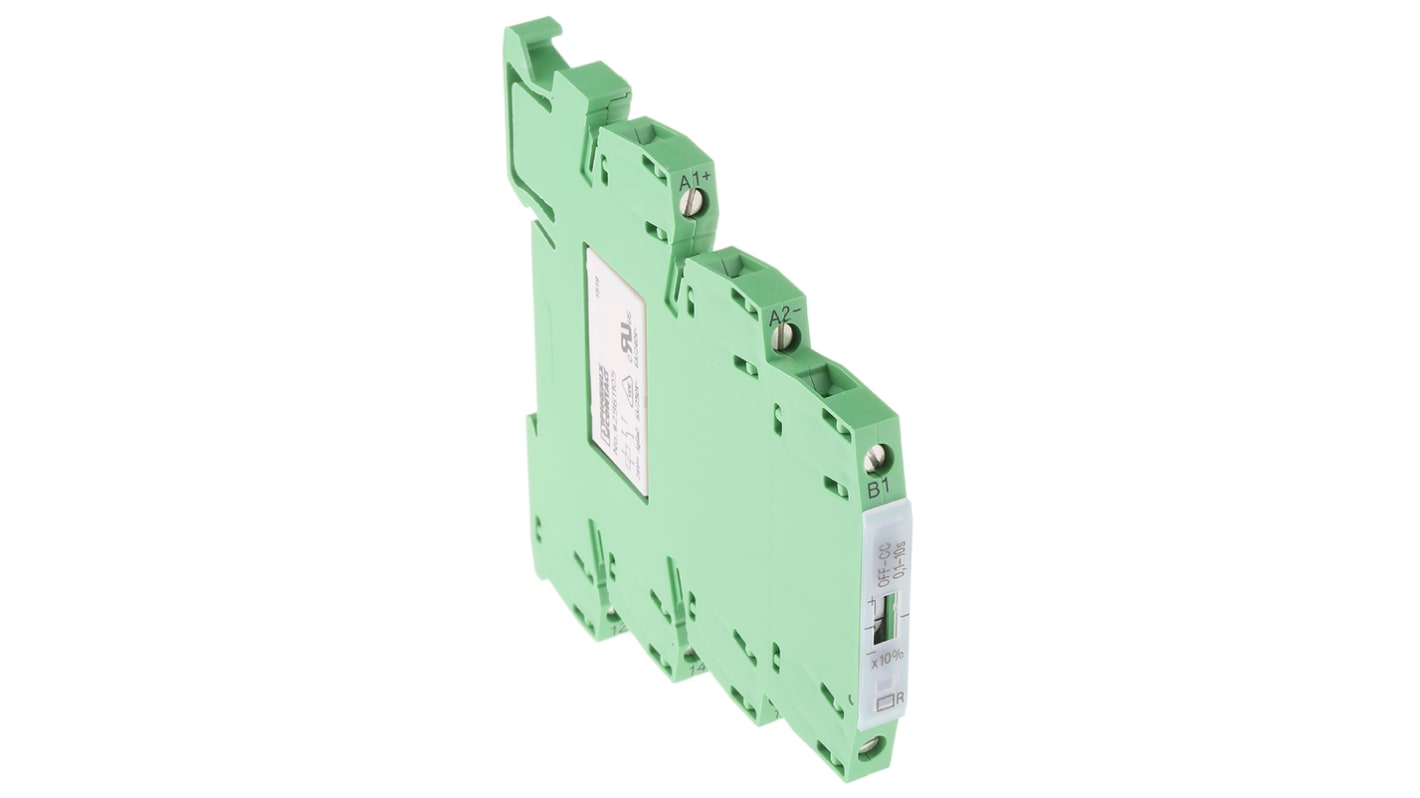

Phoenix Contact ETD-BL-1T-OFF-CC- 10S Series DIN Rail Mount Timer Relay, 19.2 → 30V dc, 1-Contact, 0.1 →
- RS Stock No.:
- 684-3670
- Mfr. Part No.:
- 2917450
- Brand:
- Phoenix Contact
Discontinued
- RS Stock No.:
- 684-3670
- Mfr. Part No.:
- 2917450
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Supply Voltage | 19.2 → 30V dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | OFF Delay with Control Signal | |
| Time Range | 0.1 → 10s | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | DPDT | |
| Time Increment | Minutes | |
| Maximum Current | 6.3A | |
| Switch Configuration | SPDT | |
| Terminal Type | Screw | |
| Power Supply | External | |
| Width | 6.2mm | |
| Length | 80mm | |
| Series | ETD-BL-1T-OFF-CC- 10S | |
| Depth | 86mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Supply Voltage 19.2 → 30V dc | ||
Mounting Type DIN Rail | ||
Mode of Operation OFF Delay with Control Signal | ||
Time Range 0.1 → 10s | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration DPDT | ||
Time Increment Minutes | ||
Maximum Current 6.3A | ||
Switch Configuration SPDT | ||
Terminal Type Screw | ||
Power Supply External | ||
Width 6.2mm | ||
Length 80mm | ||
Series ETD-BL-1T-OFF-CC- 10S | ||
Depth 86mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
6.2mm Compact, Off Delay
Narrow 6.2 mm housing
Off delay with control contact
Time range adjustable using thumbwheel
LED status display
Off delay with control contact
Time range adjustable using thumbwheel
LED status display
