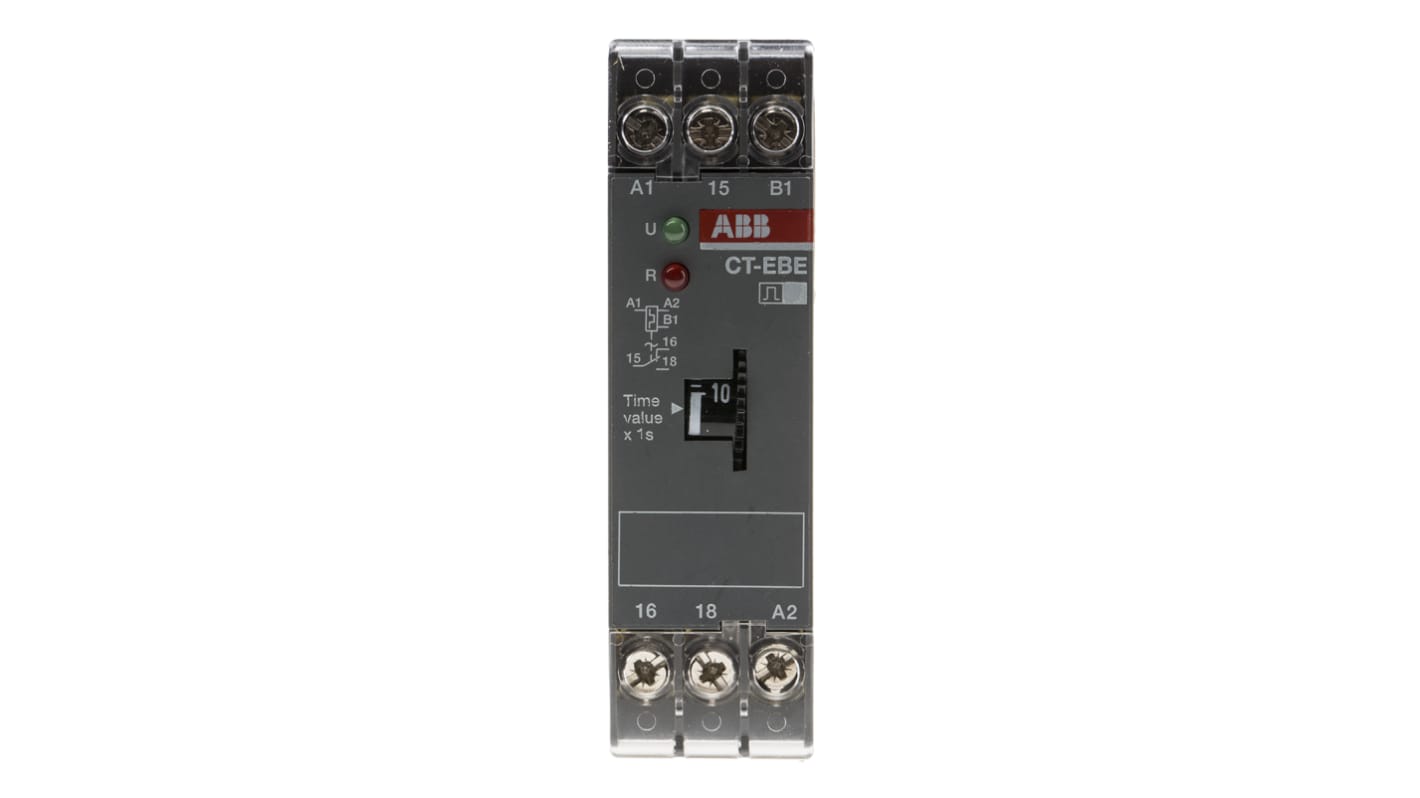

ABB Flash Single Timer Relay, 0.1 10 s, SPDT, 1 Contacts, SPDT, 200 240 V ac, 24 V ac/dc

  • RS Stock No. 442-9382
  • Mfr. Part No. 1SVR550167R1100
  • Brand ABB
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

CT-EBE (Symmetrical)

Functions - 612
Wide voltage range
2 LED indication
4A @ 250V
SPDT contact configuration
22.5mm wide

//media.rs-online.com/t_line/LD233092-01.gif
//media.rs-online.com/t_line/LI233092-11.gif
Specifications
Attribute Value
Supply Voltage 24 V ac/dc, 200 240 V ac
Time Range 0.1 10 s
Mode of Operation Flash
Mounting Type DIN Rail
Number of Timer Functions Single
Number of Contacts 1
Time Increment Seconds
Power Supply External
Contact Configuration SPDT
Minimum Operating Temperature -20°C
Contact Material Silver Cadmium Oxide
Depth 78mm
Length 78.5mm
Width 22.5mm
Switch Configuration SPDT
Maximum Operating Temperature +60°C
4 in stock for FREE next working day delivery
5 available from Europe for delivery within 1 working day(s)
Price Each
£ 42.55
(exc. VAT)
£ 51.06
(inc. VAT)
Units
Per unit
1 - 4
£42.55
5 - 9
£40.42
10 - 24
£38.29
25 - 49
£36.19
50 +
£34.20
