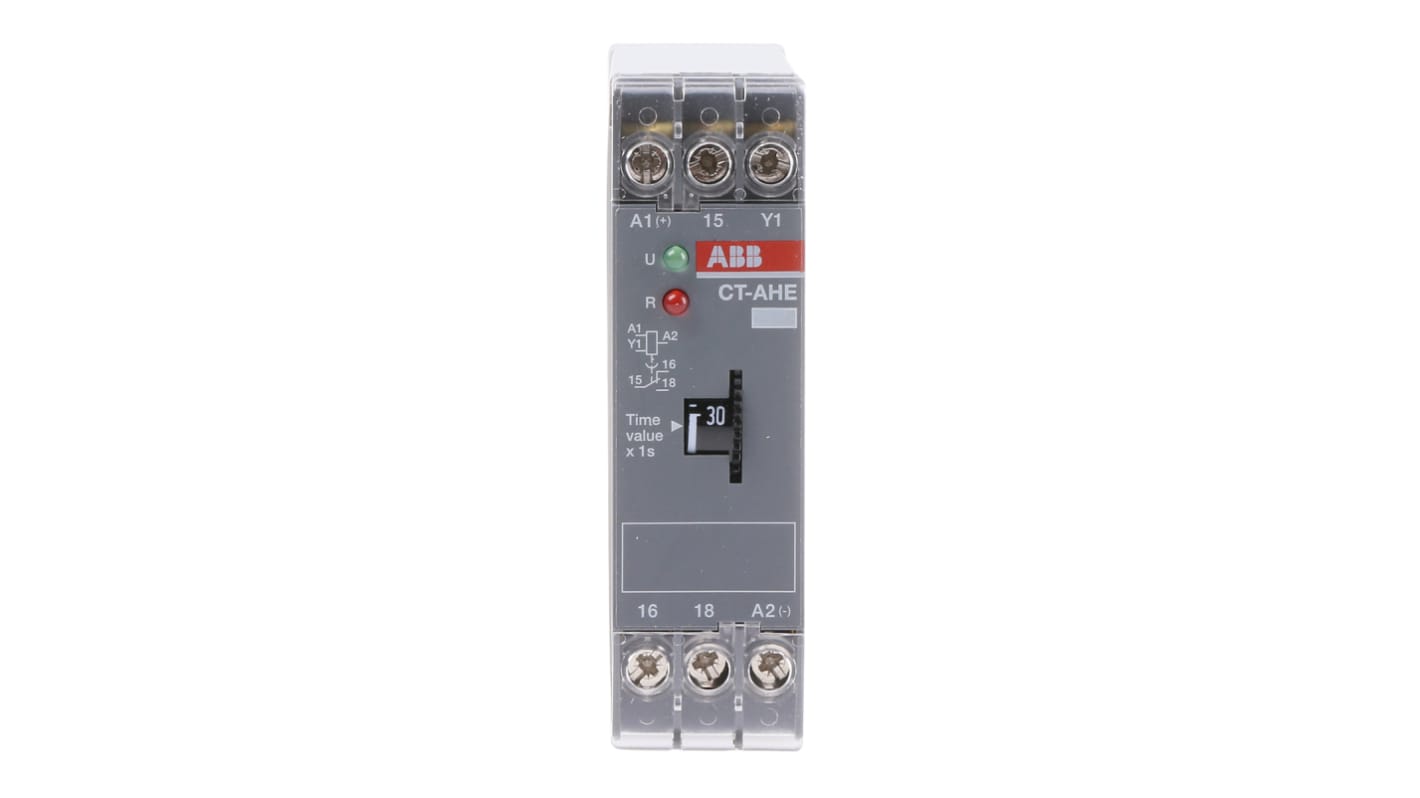

ABB 1SVR Series DIN Rail Mount Timer Relay, 24V ac/dc, 1-Contact, 0.3 → 30s, 1-Function, SPDT
- RS Stock No.:
- 442-9332
- Mfr. Part No.:
- 1SVR550118R4100
- Brand:
- ABB
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 442-9332
- Mfr. Part No.:
- 1SVR550118R4100
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Supply Voltage | 24V ac/dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | OFF Delay | |
| Time Range | 0.3 → 30s | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Single | |
| Contact Configuration | SPDT | |
| Time Increment | Seconds | |
| Maximum Current | 4A | |
| Maximum Voltage | 250V | |
| Terminal Type | Screw | |
| Switch Configuration | SPDT | |
| Power Supply | External | |
| Width | 22.5mm | |
| Maximum Operating Temperature | +60°C | |
| Depth | 78mm | |
| Series | 1SVR | |
| Length | 78.5mm | |
| Contact Material | Silver Cadmium Oxide | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand ABB | ||
Supply Voltage 24V ac/dc | ||
Mounting Type DIN Rail | ||
Mode of Operation OFF Delay | ||
Time Range 0.3 → 30s | ||
Number of Contacts 1 | ||
Number of Timer Functions Single | ||
Contact Configuration SPDT | ||
Time Increment Seconds | ||
Maximum Current 4A | ||
Maximum Voltage 250V | ||
Terminal Type Screw | ||
Switch Configuration SPDT | ||
Power Supply External | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Depth 78mm | ||
Series 1SVR | ||
Length 78.5mm | ||
Contact Material Silver Cadmium Oxide | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- BG
CT-AHE (Off Delay)
Function-211
Direct reading scales for fast,positive adjustment
2 LED indication
Contact Material;AgCdO
22.5mm wide
Direct reading scales for fast,positive adjustment
2 LED indication
Contact Material;AgCdO
22.5mm wide
Standards
GOST-R;CUL-US;GL;C-Tick
Standards
GOST-R;CUL-US;GL;C-Tick
