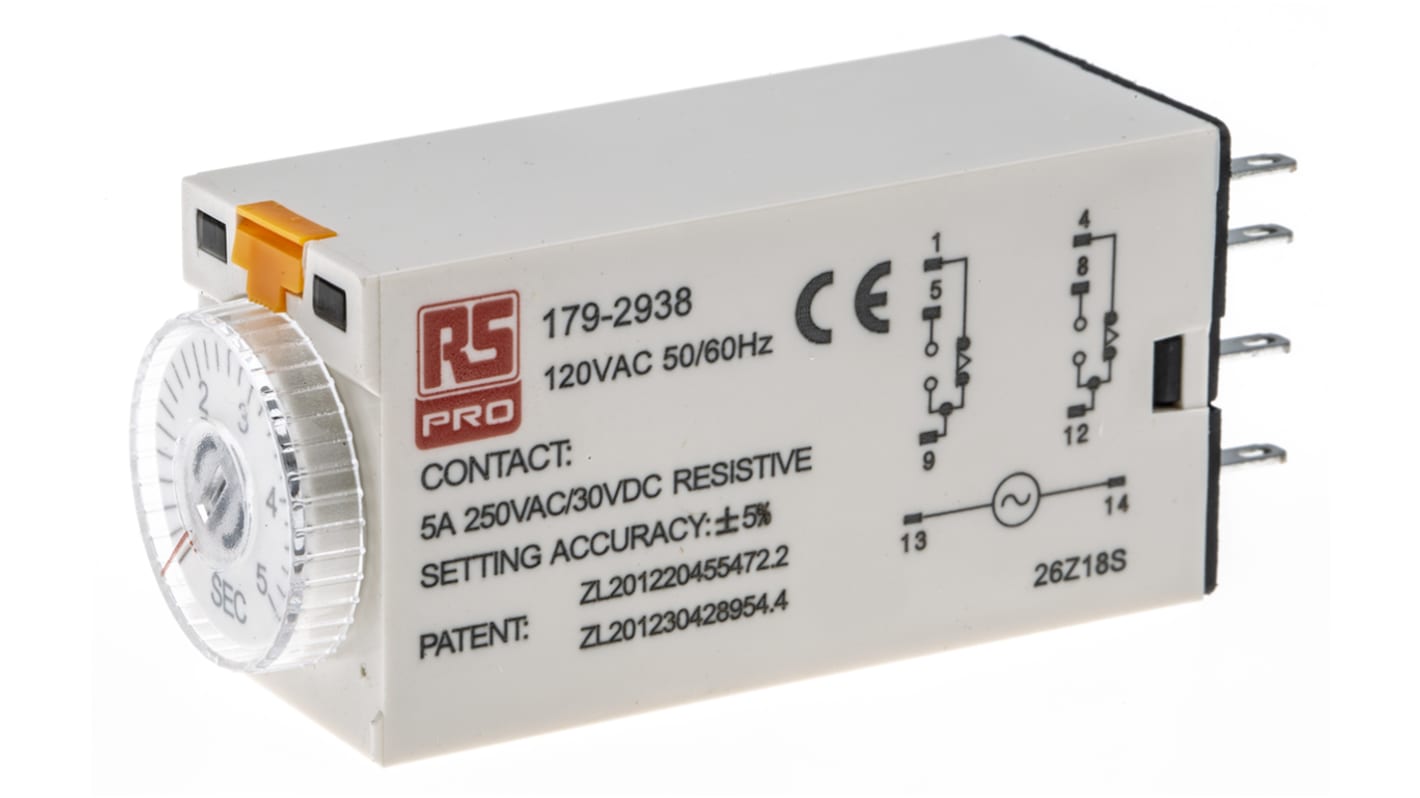

RS PRO On-Delay 1 Time Delay Relay, 0.2 → 5 s, DPDT, 2 Contacts, DPDT, 110 V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

8 pin plug-in
Analogue Dial Display
On Delay Timer

Specifications
Attribute Value
Supply Voltage 110 V ac
Time Range 0.2 → 5 s
Mode of Operation On-Delay
Mounting Type Plug-In Mount
Number of Timer Functions 1
Number of Contacts 2
Contact Configuration DPDT
Current Maximum 5 A
Maximum Voltage 110 V ac
Switch Configuration DPDT
19 In stock for FREE next working day delivery
Price Each
£ 24.08
(exc. VAT)
£ 28.90
(inc. VAT)
Units
Per unit
1 +
£24.08
