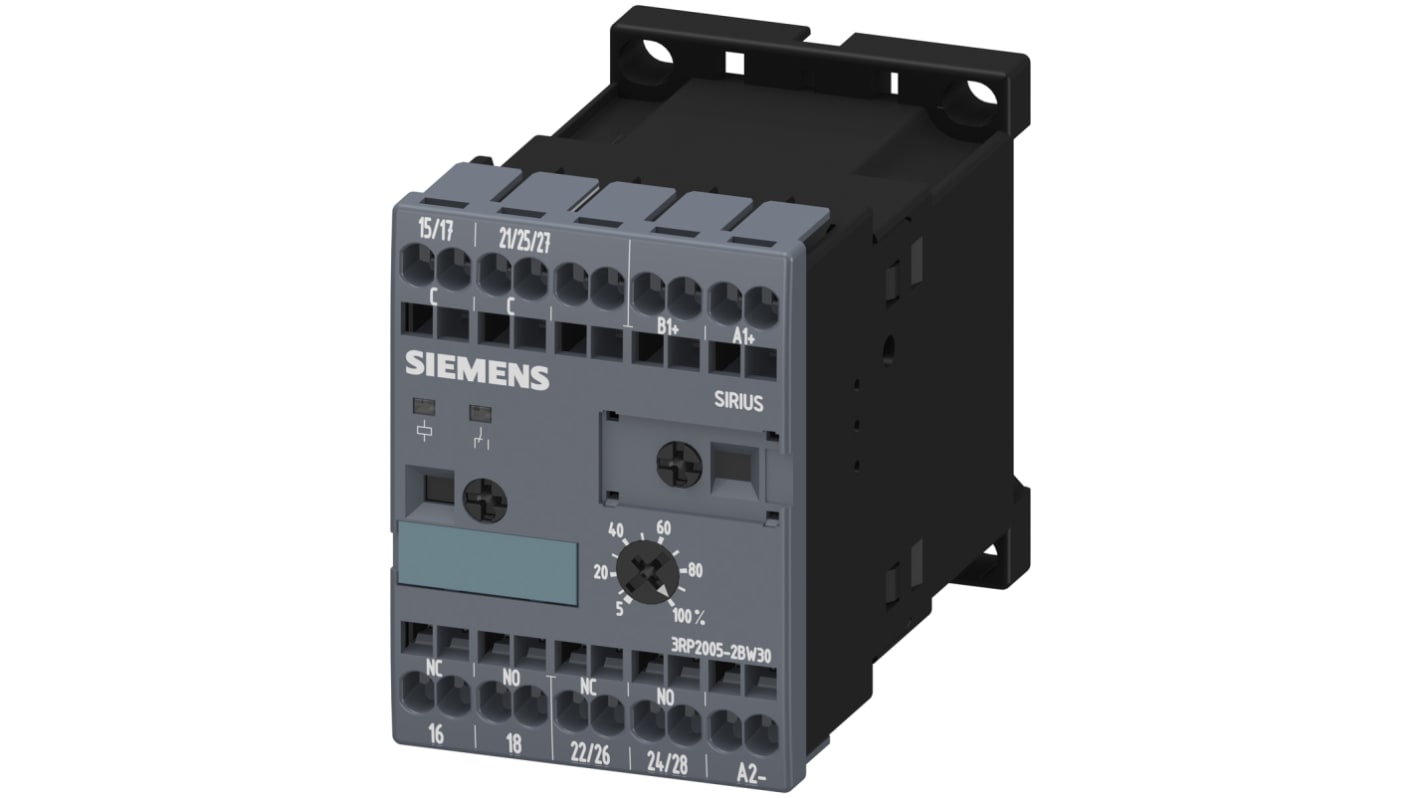

Siemens 3RP20 Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.05 s → 100h, DPDT
- RS Stock No.:
- 124-9398
- Mfr. Part No.:
- 3RP2005-2BW30
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 124-9398
- Mfr. Part No.:
- 3RP2005-2BW30
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Supply Voltage | 24 → 240V ac/dc | |
| Mounting Type | DIN Rail | |
| Time Range | 0.05 s → 100h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | DPDT | |
| Time Increment | Hours, Seconds | |
| Maximum Voltage | 240V ac/dc | |
| Terminal Type | Cage Clamp | |
| Width | 73mm | |
| Minimum Voltage | 24V ac/dc | |
| Power Supply | External | |
| Maximum Operating Temperature | +60°C | |
| Depth | 60mm | |
| Length | 45mm | |
| Series | 3RP20 | |
| Contact Material | Silver Tin Oxide | |
| Priced to Clear | Yes | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Supply Voltage 24 → 240V ac/dc | ||
Mounting Type DIN Rail | ||
Time Range 0.05 s → 100h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration DPDT | ||
Time Increment Hours, Seconds | ||
Maximum Voltage 240V ac/dc | ||
Terminal Type Cage Clamp | ||
Width 73mm | ||
Minimum Voltage 24V ac/dc | ||
Power Supply External | ||
Maximum Operating Temperature +60°C | ||
Depth 60mm | ||
Length 45mm | ||
Series 3RP20 | ||
Contact Material Silver Tin Oxide | ||
Priced to Clear Yes | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CZ
Siemens SIRIUS 3RP20- Multi function Timer Relay
SIRIUS 3RP20 series solid-state time delay relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept makes the time delay relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Their fully developed concept makes the time delay relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Features and Benefits
• Multi function
• 45 mm width
• 1 or 2 changeover contacts
• Screw terminals
• DIN Rail mounting
• 45 mm width
• 1 or 2 changeover contacts
• Screw terminals
• DIN Rail mounting
