- RS Stock No.:
- 893-4825
- Mfr. Part No.:
- SM102031005FE
- Brand:
- Arcol Ohmite
Available to back order for despatch 29/05/2024
Added
Price Each (In a Pack of 10)
£2.80
(exc. VAT)
£3.36
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 10 | £2.80 | £28.00 |
20 - 40 | £2.38 | £23.80 |
50 - 90 | £2.10 | £21.00 |
100 - 240 | £1.82 | £18.20 |
250 + | £1.714 | £17.14 |
*price indicative |
- RS Stock No.:
- 893-4825
- Mfr. Part No.:
- SM102031005FE
- Brand:
- Arcol Ohmite
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

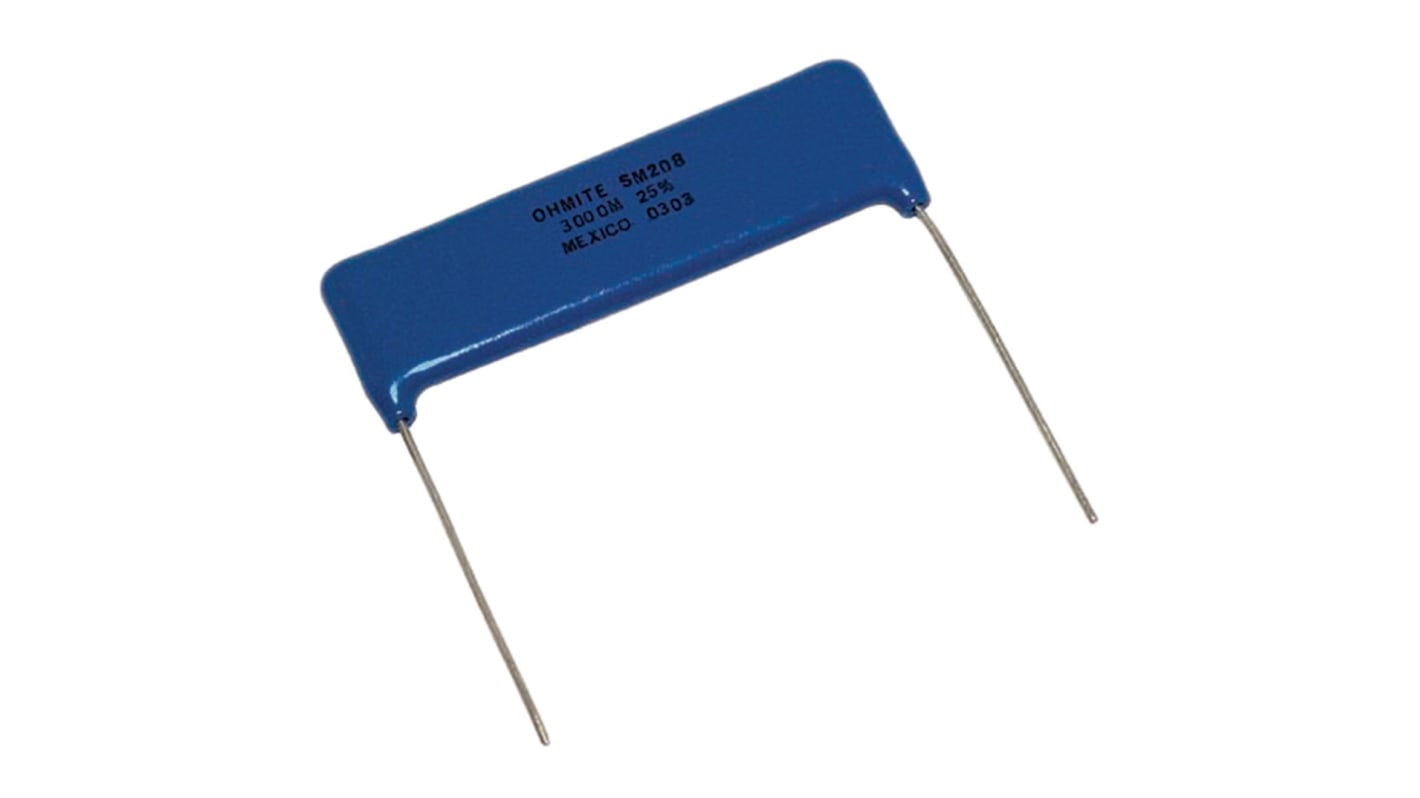

Ohmite Slim-MOX Series Precision Thick Film Resistors
Ohmite Slim-MOX series precision thick film resistors provide stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving Planar package offers an alternative to traditional high-voltage resistors.
Features & Benefits:
High dielectric and low outgassing epoxy coating
Low resistor noise
Non-inductive
RoHS compliant
Radial terminals
Low resistor noise
Non-inductive
RoHS compliant
Radial terminals
Ohmites Slim-Mox provides stable performance for a wide range of resistance values, with voltage ratings up to 25K. Low temperature coefficients are available for high stability circuit applications. The space-saving planar package offers an alternative to traditional high voltage resistors. Multiple taps are provided on the Slim-Mox RD for use in advanced circuit designs. Tight ratio tolerances make these resistors ideal for precision applications requiring consistent performance. The Slim-Mox HT provides a higher power rating for high ambient temperature environments. Appropriate for mounting near heat generating components. The Slim-Mox HT is finished with a rugged silicone coating suitable for most environments.
Specifications
Attribute | Value |
---|---|
Resistance | 10MΩ |
Power Rating | 1W |
Tolerance | ±1% |
Axial/Radial | Radial |
Technology | Thick Film |
Series | Slim Mox |
Temperature Coefficient | ±25 ppm/°C, ±50 ppm/°C |
Maximum Operating Temperature | +110°C |
Minimum Operating Temperature | -55°C |
Lead Pitch | 10.16mm |
