Arcol 20kΩ Thick Film Resistor 25W ±1% AP826 20K F 50PPM
- RS Stock No.:
- 821-1813
- Mfr. Part No.:
- AP826 20K F 50PPM
- Brand:
- Arcol
Bulk discount available
Subtotal (1 unit)*
£4.21
(exc. VAT)
£5.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 57 unit(s) ready to ship
- Plus 999,999,942 unit(s) shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £4.21 |
10 - 24 | £3.79 |
25 - 49 | £3.45 |
50 - 99 | £3.17 |
100 + | £2.53 |
*price indicative
- RS Stock No.:
- 821-1813
- Mfr. Part No.:
- AP826 20K F 50PPM
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Arcol | |
Resistance | 20kΩ | |
Power Rating | 25W | |
Tolerance | ±1% | |
Technology | Thick Film | |
Series | AP826 | |
Package/Case | TO-220 | |
Temperature Coefficient | ±50ppm/°C | |
Maximum Operating Temperature | +150°C | |
Lead Pitch | 5.33mm | |
Minimum Operating Temperature | -65°C | |
Select all | ||
---|---|---|
Brand Arcol | ||
Resistance 20kΩ | ||
Power Rating 25W | ||
Tolerance ±1% | ||
Technology Thick Film | ||
Series AP826 | ||
Package/Case TO-220 | ||
Temperature Coefficient ±50ppm/°C | ||
Maximum Operating Temperature +150°C | ||
Lead Pitch 5.33mm | ||
Minimum Operating Temperature -65°C | ||

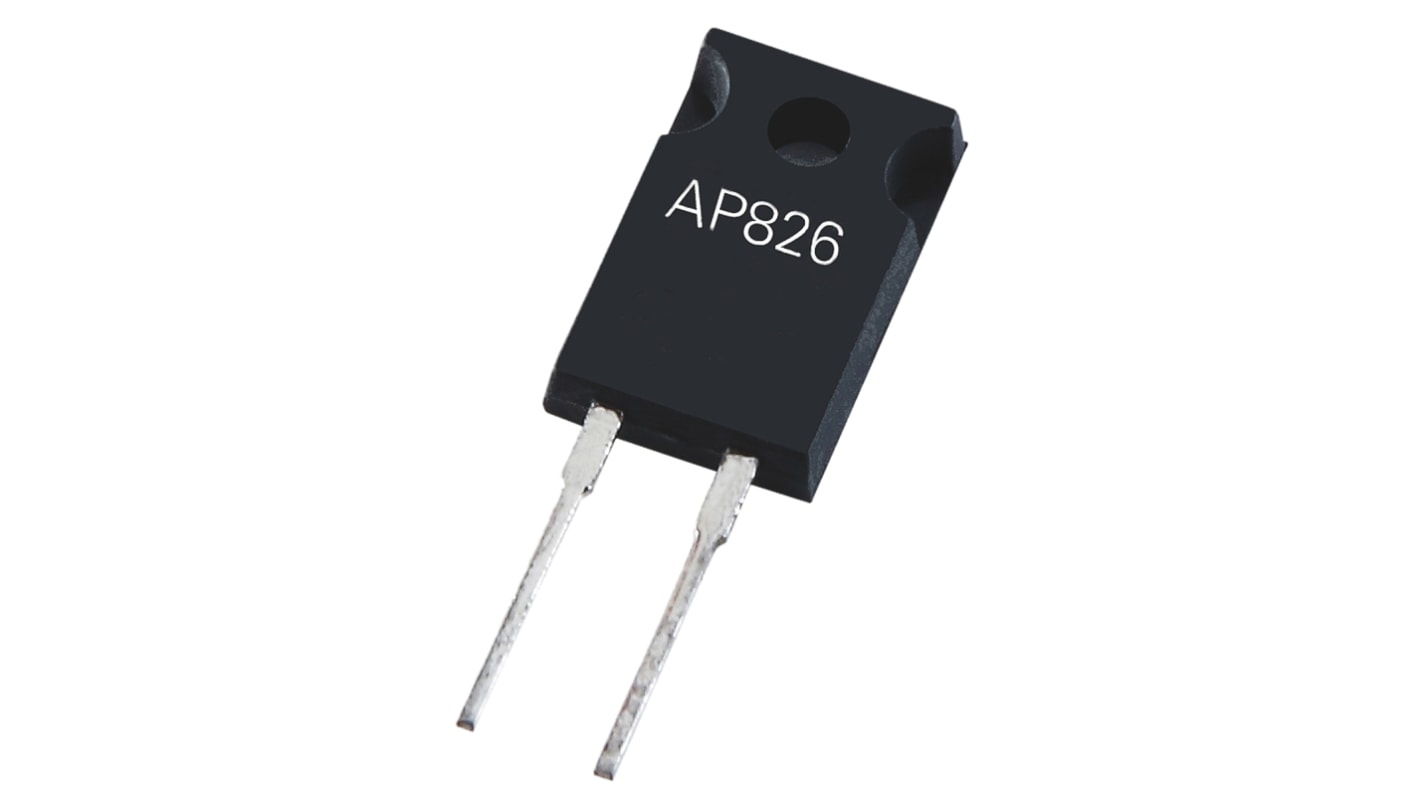

AP826 Series 25 Watts TO-220 High Power Resistors
The AP826 series Non-inductive 25 Watt high power T0-220 resistor pack with a very low thermal resistance. Applications for the AP826 series include:- High frequency emitter circuits in switching power supplies; voltage regulation; low energy pulse loading; Motor control circuits; Motor drive circuits
25 Watts at 25˚C case temperature on heat sink (Using thermal grease)
Single Moulded case for protection
Easy to mount to heat sink via single screw mounting hole
Electrically isolated case
Single Moulded case for protection
Easy to mount to heat sink via single screw mounting hole
Electrically isolated case
