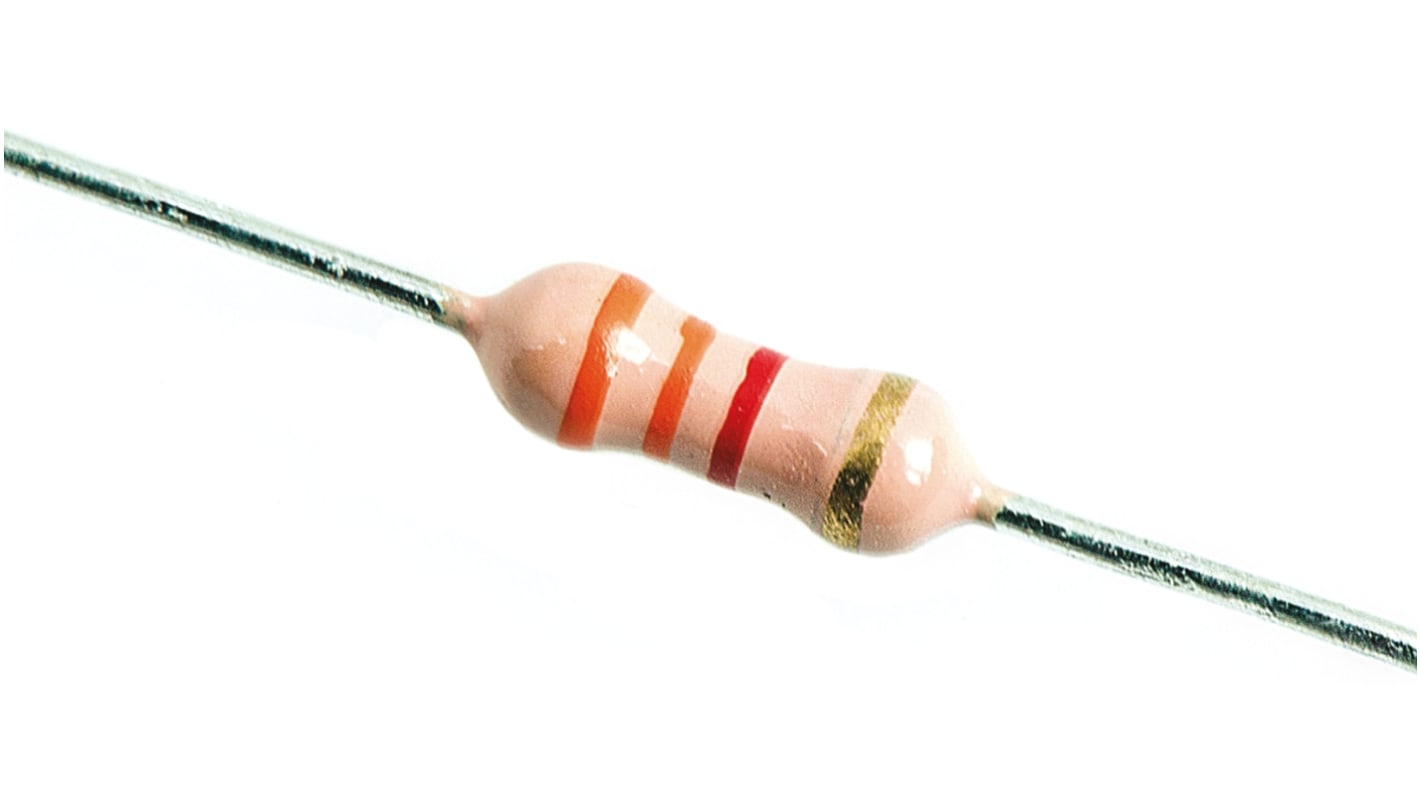

RS PRO 3.3kΩ Carbon Film Resistor 0.25W ±5%
- RS Stock No.:
- 707-7701
- Brand:
- RS PRO
Save 28% when you buy 2500 units
Subtotal (1 pack of 10 units)*
£1.09
(exc. VAT)
£1.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,630 unit(s) ready to ship from another location
- Plus 490 unit(s) shipping from 02 October 2025
- Plus 10,000 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 240 | £0.109 | £1.09 |
250 - 490 | £0.10 | £1.00 |
500 - 990 | £0.092 | £0.92 |
1000 - 2490 | £0.085 | £0.85 |
2500 + | £0.078 | £0.78 |
*price indicative
- RS Stock No.:
- 707-7701
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Resistance | 3.3kΩ | |
Power Rating | 0.25W | |
Tolerance | ±5% | |
Technology | Carbon Film | |
Series | RS | |
Package/Case | 0623 | |
Maximum Operating Temperature | +155°C | |
Temperature Coefficient | -500 → +350ppm/°C | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Resistance 3.3kΩ | ||
Power Rating 0.25W | ||
Tolerance ±5% | ||
Technology Carbon Film | ||
Series RS | ||
Package/Case 0623 | ||
Maximum Operating Temperature +155°C | ||
Temperature Coefficient -500 → +350ppm/°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- TW
Carbon Film Resistors 0.25W - Full Bandolier (1KΩ to 9M1Ω)
The RS series of carbon film axial leaded resistors offer excellent long term stability and feature standard solder-plated copper leads. Applications include automotive, telecommunication and medical equipment.
A comprehensive range of high stability carbon film resistors qualified and tested to the requirements of IEC 115 and IEC 115-2. The ruggedised welded cap and lead method of manufacture provides a considerable strength and resistance to damage. The coating materials and the colour bands are epoxy resin and are highly resistant to solvents, abrasion and chipping. Improvements in materials and processing have allowed the rated power to be improved. Excellent stability against changes in load conditions or moisture levels, with a low noise level and high reliability make these carbon film resistors suitable for a wide range of applications. Rated at 70°C in free air mounted horizontally. Climatic category 55/155/56.
