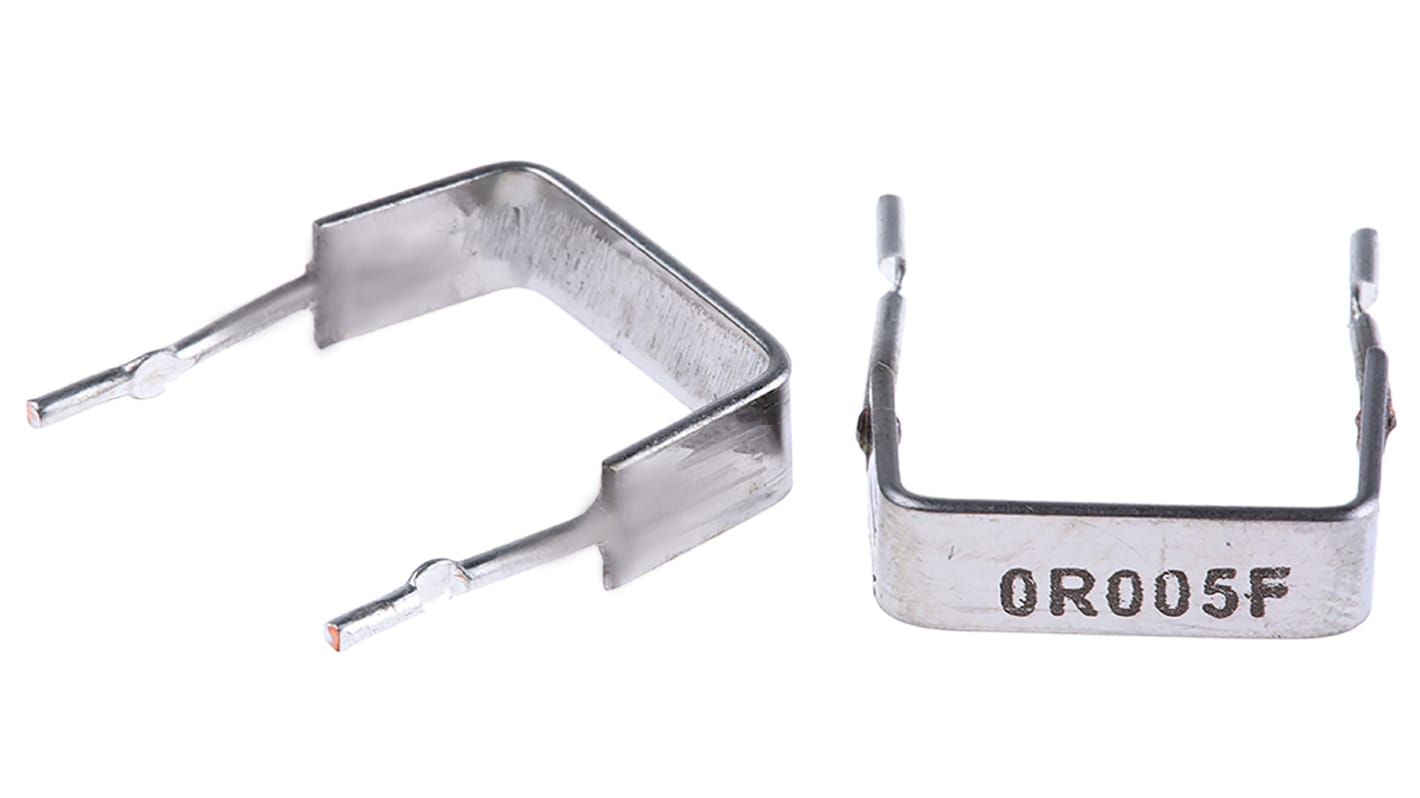

Arcol 5mΩ Fixed Resistor 3W ±1% MSR-3 R005 F
- RS Stock No.:
- 487-9074
- Mfr. Part No.:
- MSR-3 R005 F
- Brand:
- Arcol
Subtotal (1 pack of 5 units)*
£12.91
(exc. VAT)
£15.49
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 20 left, ready to ship
- Final 460 unit(s) shipping from 30 October 2025
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.582 | £12.91 |
*price indicative
- RS Stock No.:
- 487-9074
- Mfr. Part No.:
- MSR-3 R005 F
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 5mΩ | |
| Power Rating | 3W | |
| Tolerance | ±1% | |
| Series | MSR-3 | |
| Temperature Coefficient | ±20ppm/°C | |
| Lead Pitch | 15.24mm | |
Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 5mΩ | ||
Power Rating 3W | ||
Tolerance ±1% | ||
Series MSR-3 | ||
Temperature Coefficient ±20ppm/°C | ||
Lead Pitch 15.24mm | ||
MSR-3 Series
Designed for applications such as current sensing shunts, feedback and/or pulse detection, and offering a rugged alternative to encapsulated designs
Very low ohmic value matched by low tolerance
Inductance less than 10nH
Inherently flameproof
Low TCR: ±20ppm/°C
Inductance less than 10nH
Inherently flameproof
Low TCR: ±20ppm/°C
