- RS Stock No.:
- 199-5027
- Mfr. Part No.:
- HHV-50JT-52-10M
- Brand:
- Yageo
Price Each (In a Box of 1000)
£0.044
(exc. VAT)
£0.053
(inc. VAT)
1620 In stock - FREE next working day delivery available
Units | Per unit | Per Box* |
---|---|---|
1000 + | £0.044 | £44.00 |
*price indicative
- RS Stock No.:
- 199-5027
- Mfr. Part No.:
- HHV-50JT-52-10M
- Brand:
- Yageo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

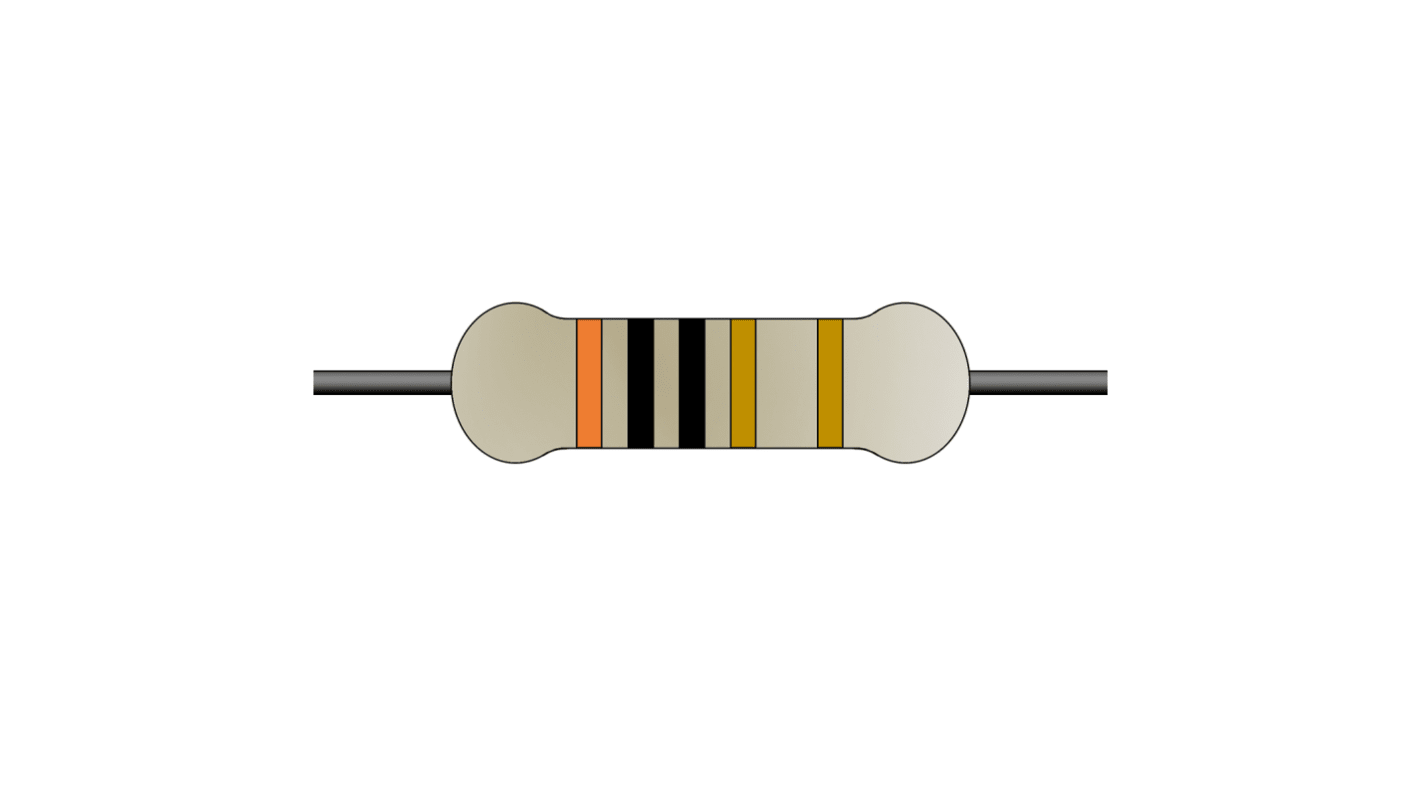

The Yageo HHV series 10MΩ is a high voltage & high ohmic resistor is made of metal glaze film with tinned connecting leads of electrolytic copper welded to the end-caps and the resistor is coated with layers of pink colour lacquer.
Operating Temperature Range is -55°C to +155°C
Temperature Coefficient is ±200pm/°C
Insulation Resistance :in V-block for 60 Sec
Temperature Coefficient is ±200pm/°C
Insulation Resistance :in V-block for 60 Sec
Note
100KΩ → 68MΩ for E24 & E96 series value
Specifications
Attribute | Value |
---|---|
Resistance | 10MΩ |
Power Rating | 1/2W |
Tolerance | 5% |
Axial/Radial | Axial |
Series | HHV |
Package/Case | Axial |
