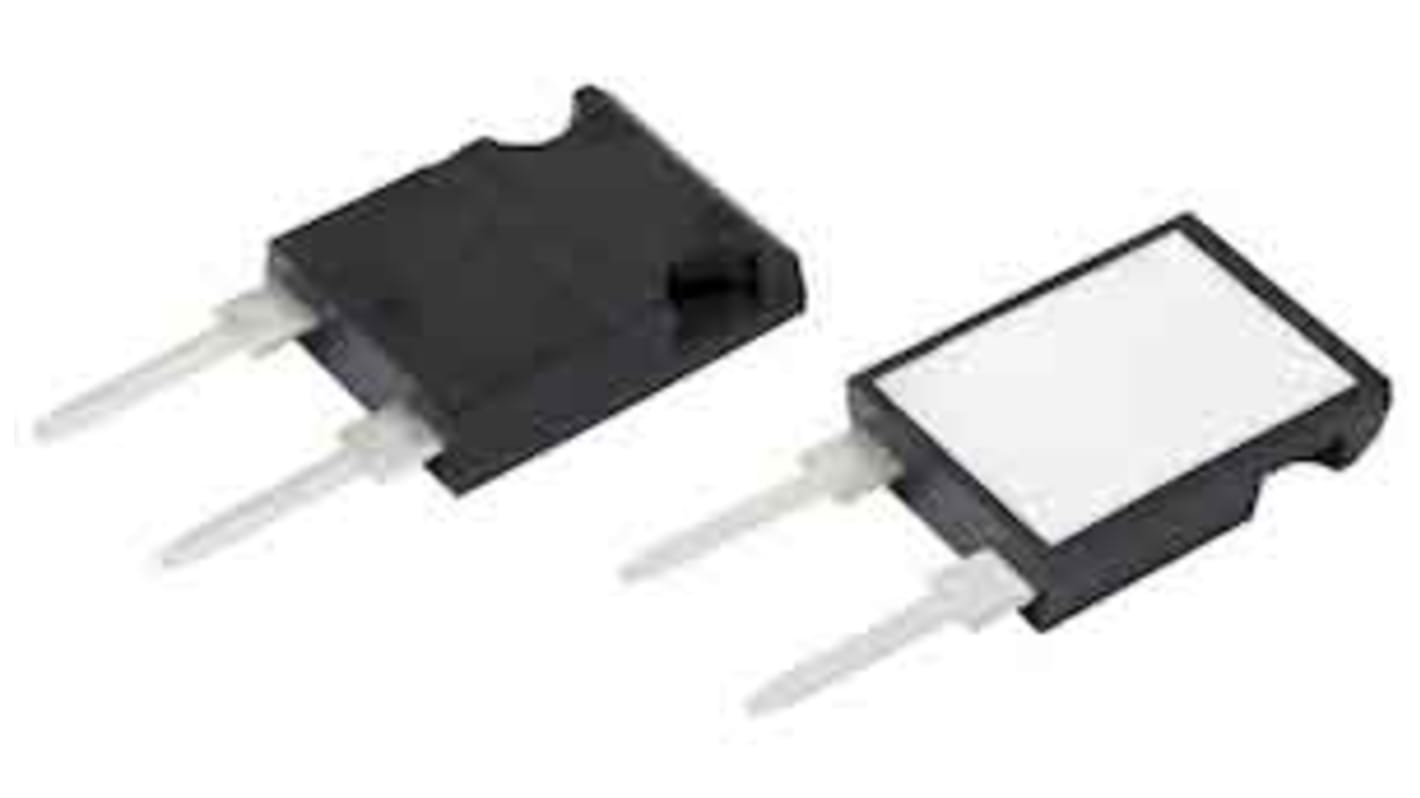

Vishay 1Ω Thick Film Resistor 150W ±5% LTO150F1R000JTE3
- RS Stock No.:
- 180-9090
- Distrelec Article No.:
- 302-13-227
- Mfr. Part No.:
- LTO150F1R000JTE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£9.88
(exc. VAT)
£11.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 75 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.88 |
| 5 - 9 | £9.67 |
| 10 - 24 | £9.38 |
| 25 - 49 | £8.89 |
| 50 + | £8.39 |
*price indicative
- RS Stock No.:
- 180-9090
- Distrelec Article No.:
- 302-13-227
- Mfr. Part No.:
- LTO150F1R000JTE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 1Ω | |
| Power Rating | 150W | |
| Composition | Ceramic | |
| Tolerance | ±5% | |
| Axial/Radial | Radial | |
| Technology | Thick Film | |
| Series | LTO 150 | |
| Automotive Standard | AEC-Q200 | |
| Package/Case | TO-247 | |
| Temperature Coefficient | ±350ppm/°C | |
| Maximum Operating Temperature | +175°C | |
| Lead Pitch | 10.16mm | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 1Ω | ||
Power Rating 150W | ||
Composition Ceramic | ||
Tolerance ±5% | ||
Axial/Radial Radial | ||
Technology Thick Film | ||
Series LTO 150 | ||
Automotive Standard AEC-Q200 | ||
Package/Case TO-247 | ||
Temperature Coefficient ±350ppm/°C | ||
Maximum Operating Temperature +175°C | ||
Lead Pitch 10.16mm | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CZ
LTO150 are the extension of LTO series. The component is used in direct contact with heatsink. Fixation done by clip.
171 W at 45 °C case temperature heatsink mounted
Direct mounting ceramic on heatsink
Broad resistance range: 0.03 to 1.3 M
Non inductive
TO-247 package: compact and easy to mount
Designed for clip mounting
Direct mounting ceramic on heatsink
Broad resistance range: 0.03 to 1.3 M
Non inductive
TO-247 package: compact and easy to mount
Designed for clip mounting
