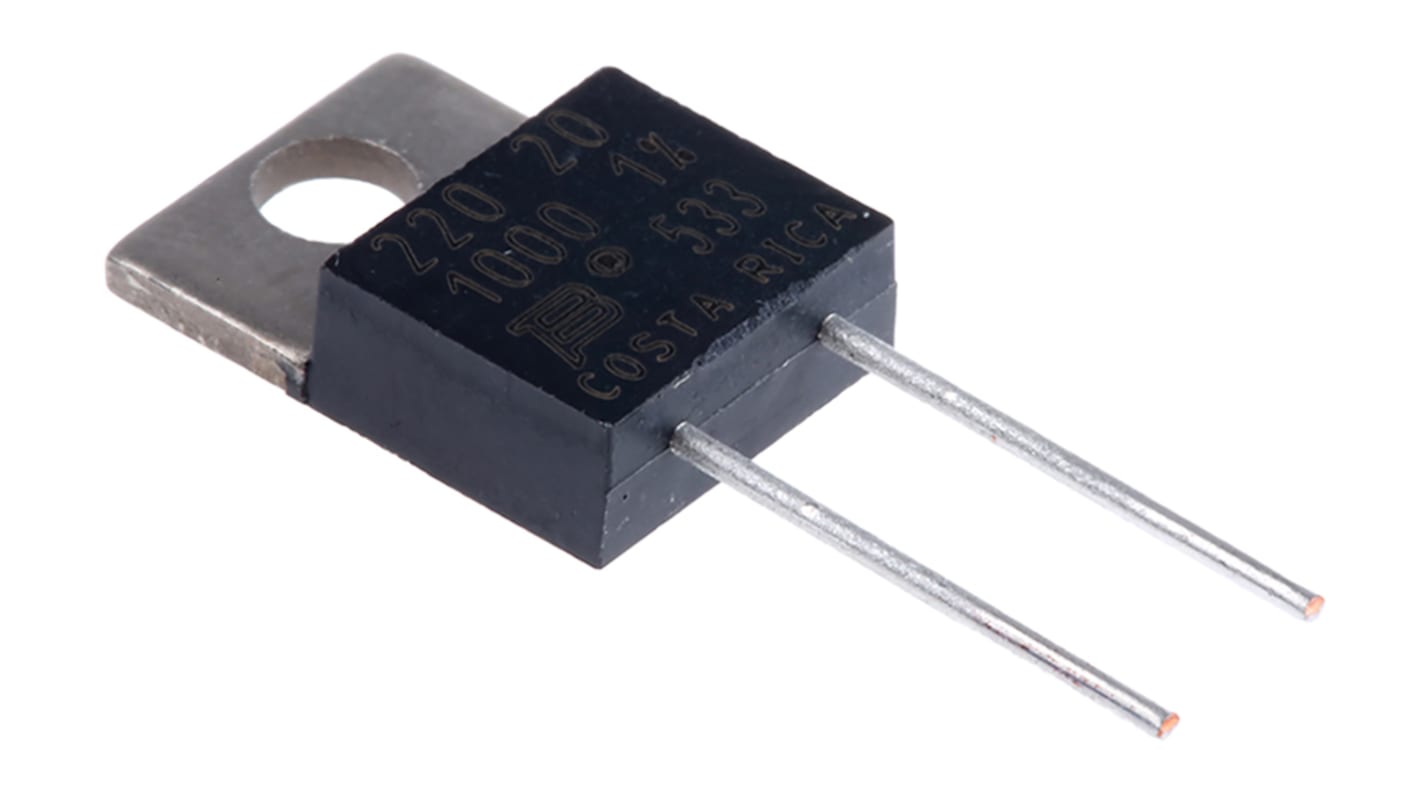

Bourns 100 Ω Thick Film Resistor 20 W 1 %

RS Stock No.:: 167-5312
Mfr. Part No.:: PWR220T-20-1000F
Brand:: Bourns

Bourns 100 Ω Thick Film Resistor 20 W 1 %

Bulk discount available

View bulk pricing options

Subtotal (1 tube of 50 units)*

£99.35

(exc. VAT)

£119.20

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

300 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tube*
50 - 50	£1.987	£99.35
100 - 200	£1.848	£92.40
250 +	£1.729	£86.45

*price indicative

RS Stock No.:: 167-5312
Mfr. Part No.:: PWR220T-20-1000F
Brand:: Bourns

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bourns
	Resistance	100Ω
	Product Type	Resistor
	Resistor Type	Thick Film
	Power Rating	20W
	Packaging	50 pieces per Tube
	Tolerance ±	1%
	Voltage	25V
	Technology	Thick Film
	Series	PWR220T-20
	Automotive Standard	AEC-Q200
	Package/Case	TO-220
	Lead Pitch Radial	5.08mm
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Standards/Approvals	RoHS, UL-94V0
	Diameter	3.6mm
	Width	4mm
	Length	28.3mm
	Height	14.6mm
	Temperature Coefficient	±100 ppm/°C
	Lead Diameter	0.72mm

	Select all
	Brand Bourns
	Resistance 100Ω
	Product Type Resistor
	Resistor Type Thick Film
	Power Rating 20W
	Packaging 50 pieces per Tube
	Tolerance ± 1%
	Voltage 25V
	Technology Thick Film
	Series PWR220T-20
	Automotive Standard AEC-Q200
	Package/Case TO-220
	Lead Pitch Radial 5.08mm
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Standards/Approvals RoHS, UL-94V0
	Diameter 3.6mm
	Width 4mm
	Length 28.3mm
	Height 14.6mm
	Temperature Coefficient ±100 ppm/°C
	Lead Diameter 0.72mm

PWR220T-20 Series Power Resistor Data Sheet

COO (Country of Origin):: CR

PWR220T-20 Series

The PWR220T-20 Series from Bourns® is a TO-220 style power resistor manufactured using thick film on alumina ceramic technology.

Product Application Information

TO-220 housing

Low inductance

Resistor electrically isolated from the backplate

High power rating

These power resistors are AEC-Q200 qualified and suitable for automotive applications. Other applications include power supplies, test and measurement, motor drives and rectifiers.

Low Inductive - Through Hole Package

Standards

AEC-Q200 qualified
