Subtotal (1 box of 500 units)*
£141.00
(exc. VAT)
£169.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,000 unit(s) shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £0.282 | £141.00 |
*price indicative
- RS Stock No.:
- 167-5094
- Mfr. Part No.:
- FW50A10R0JA
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Resistance | 10Ω | |
| Product Type | Resistor | |
| Resistor Type | Wirewound | |
| Power Rating | 5W | |
| Tolerance ± | 5% | |
| Packaging | Ammo Pack | |
| Axial/Radial | Axial | |
| Voltage | 240V | |
| Technology | Wirewound | |
| Series | FW | |
| Automotive Standard | No | |
| Package/Case | 500 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| Diameter | 9.5mm | |
| Standards/Approvals | UL, RoHS | |
| Height | 38mm | |
| Length | 26mm | |
| Temperature Coefficient | +200 ppm/°C | |
| Lead Diameter | 0.75mm | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Resistance 10Ω | ||
Product Type Resistor | ||
Resistor Type Wirewound | ||
Power Rating 5W | ||
Tolerance ± 5% | ||
Packaging Ammo Pack | ||
Axial/Radial Axial | ||
Voltage 240V | ||
Technology Wirewound | ||
Series FW | ||
Automotive Standard No | ||
Package/Case 500 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Diameter 9.5mm | ||
Standards/Approvals UL, RoHS | ||
Height 38mm | ||
Length 26mm | ||
Temperature Coefficient +200 ppm/°C | ||
Lead Diameter 0.75mm | ||
- COO (Country of Origin):
- CN

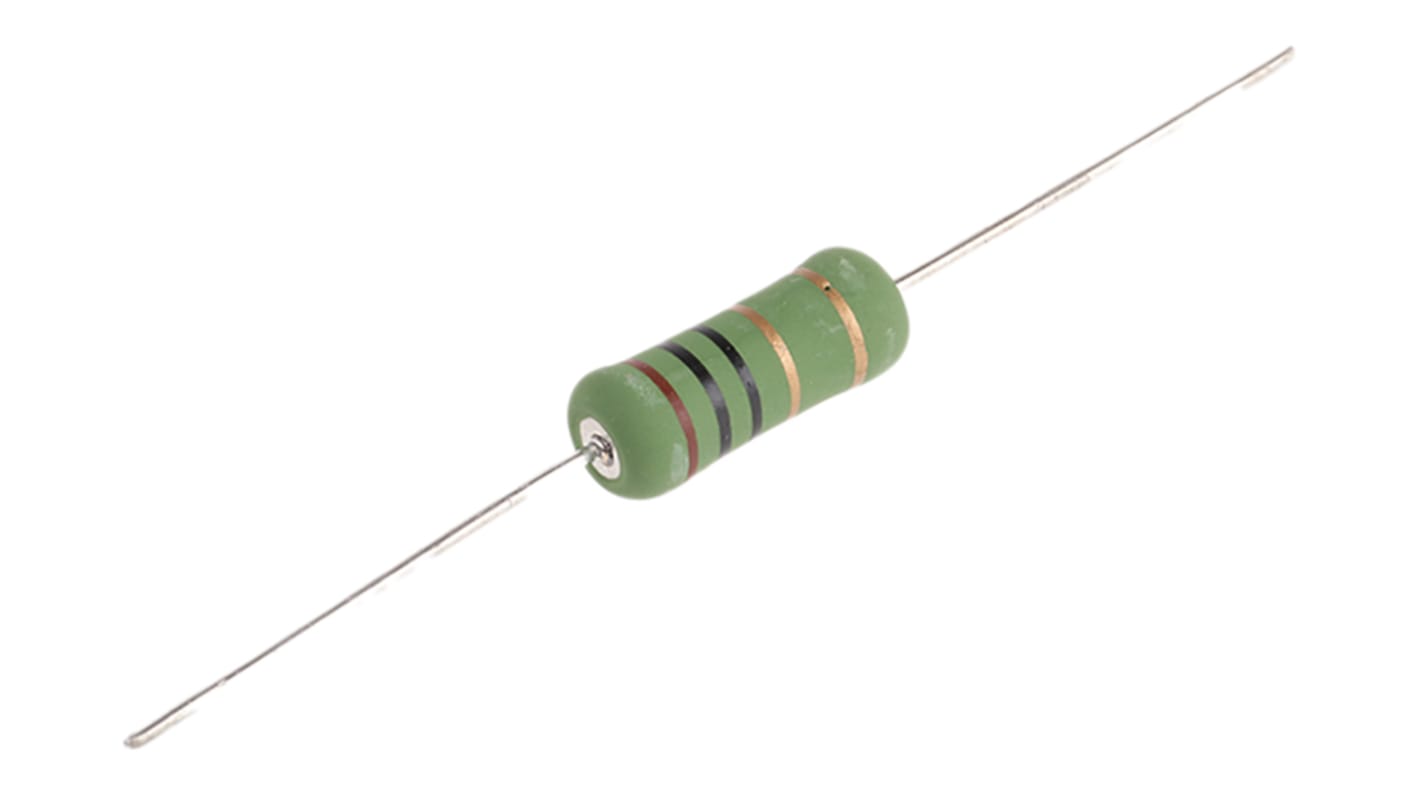

FW Series Axial Fusible Power Resistors
Axial leaded wirewound power resistors designed to fuse under abnormal conditions such as surges in voltage or circuit malfunction. These resistors will fuse upon application of 120 or 240V with the exception of the 7W version which will only fuse on application of 240Vac. Designed for use in white goods, invertors, lighting and metering.
Approvals
UL E349323
