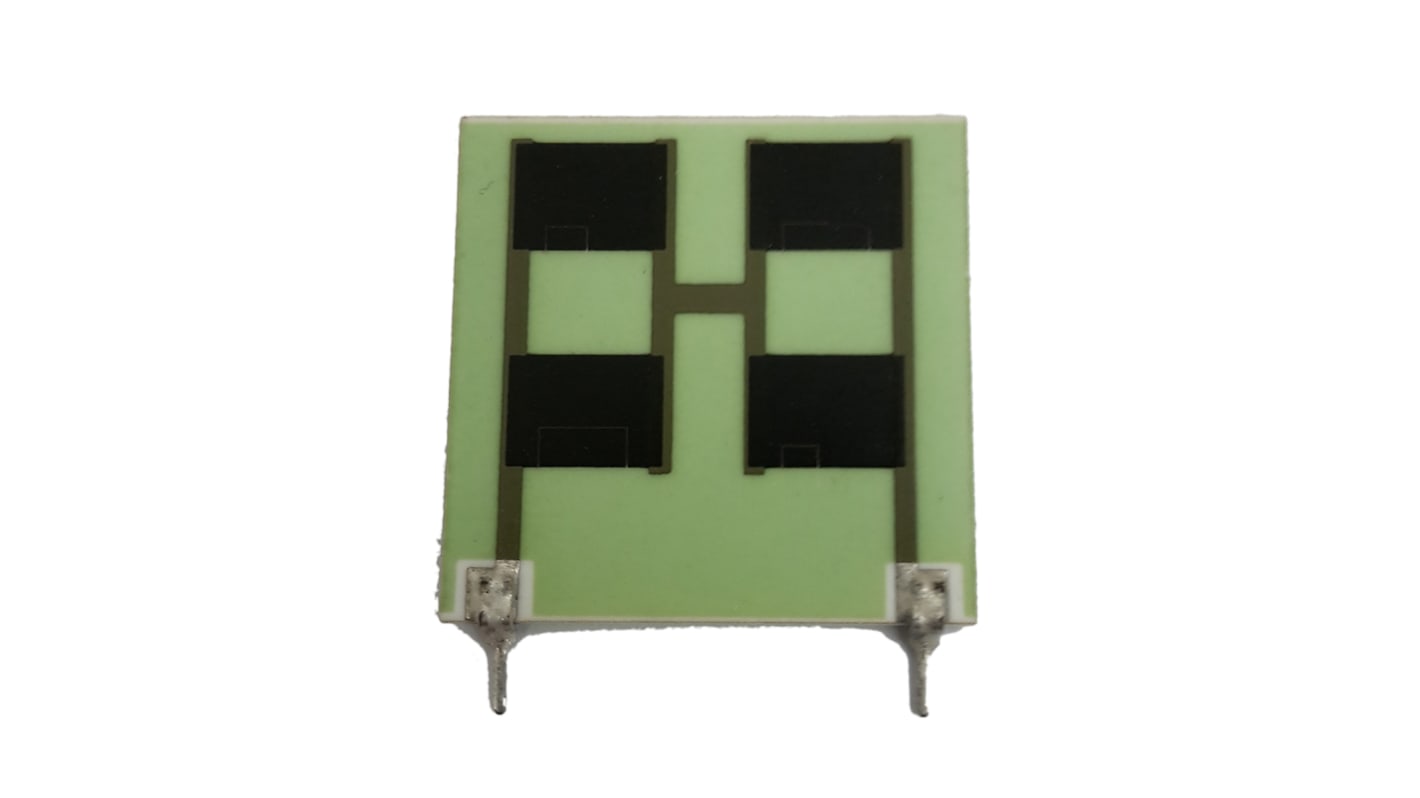

Arcol 330Ω Thick Film Resistor 10W ±5% FCR10 330R J
- RS Stock No.:
- 166-4824
- Mfr. Part No.:
- FCR10 330R J
- Brand:
- Arcol
Subtotal (1 box of 100 units)*
£469.00
(exc. VAT)
£563.00
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 200 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £4.69 | £469.00 |
*price indicative
- RS Stock No.:
- 166-4824
- Mfr. Part No.:
- FCR10 330R J
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 330Ω | |
| Power Rating | 10W | |
| Tolerance | ±5% | |
| Technology | Thick Film | |
| Series | FCR10 | |
| Maximum Operating Temperature | +180°C | |
| Temperature Coefficient | ±50ppm/°C | |
| Lead Pitch | 20.32mm | |
Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 330Ω | ||
Power Rating 10W | ||
Tolerance ±5% | ||
Technology Thick Film | ||
Series FCR10 | ||
Maximum Operating Temperature +180°C | ||
Temperature Coefficient ±50ppm/°C | ||
Lead Pitch 20.32mm | ||
- COO (Country of Origin):
- MX
10W Thick Film Power Resistors, FCR Series
Arcol FCR power resistors require less board space than other radial packages but yield greater power densities. This series of power resistors use thick film technology on an alumina substrate.
High operating temperature
High power density
Wide resistance range
RoHS compliant
High power density
Wide resistance range
RoHS compliant
Metal Film Radial
