Arcol 10kΩ Thick Film Resistor 35W ±5% AP836 10K J 100PPM
- RS Stock No.:
- 166-4588
- Mfr. Part No.:
- AP836 10K J 100PPM
- Brand:
- Arcol
Available to back order for despatch when stock is available
Added
Price Each (In a Tray of 50)
£4.07
(exc. VAT)
£4.88
(inc. VAT)
| Units | Per unit | Per Tray* |
| 50 + | £4.07 | £203.50 |
| *price indicative | ||
- RS Stock No.:
- 166-4588
- Mfr. Part No.:
- AP836 10K J 100PPM
- Brand:
- Arcol
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

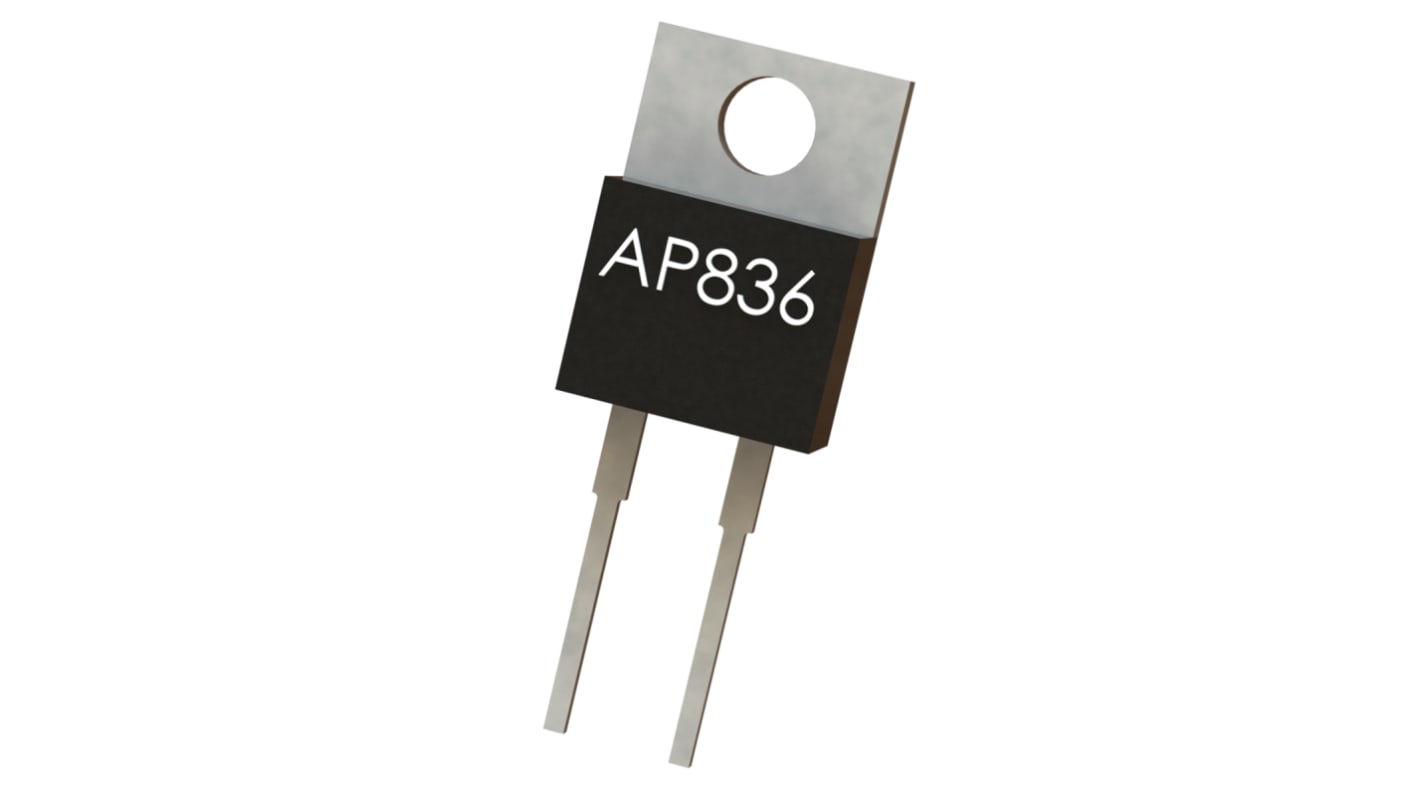

AP836 Series 35 Watts TO-220 High Power Resistors
The AP836 series Non-inductive 35 Watt high power T0220 resistor pack with a very low thermal resistance. Applications for the AP836 series include:- High frequency emitter circuits in switching power supplies; voltage regulation; low energy pulse loading
35 Watts at 25˚C case temperature on heat sink (Using thermal grease)
Single Moulded case for protection
Easy to mount to heat sink via single screw mounting hole
Electrically isolated case
Single Moulded case for protection
Easy to mount to heat sink via single screw mounting hole
Electrically isolated case
Specifications
Attribute | Value |
|---|---|
| Resistance | 10kΩ |
| Power Rating | 35W |
| Tolerance | ±5% |
| Technology | Thick Film |
| Series | AP836 |
| Package/Case | TO-220 |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -65°C |
| Lead Pitch | 5.33mm |
