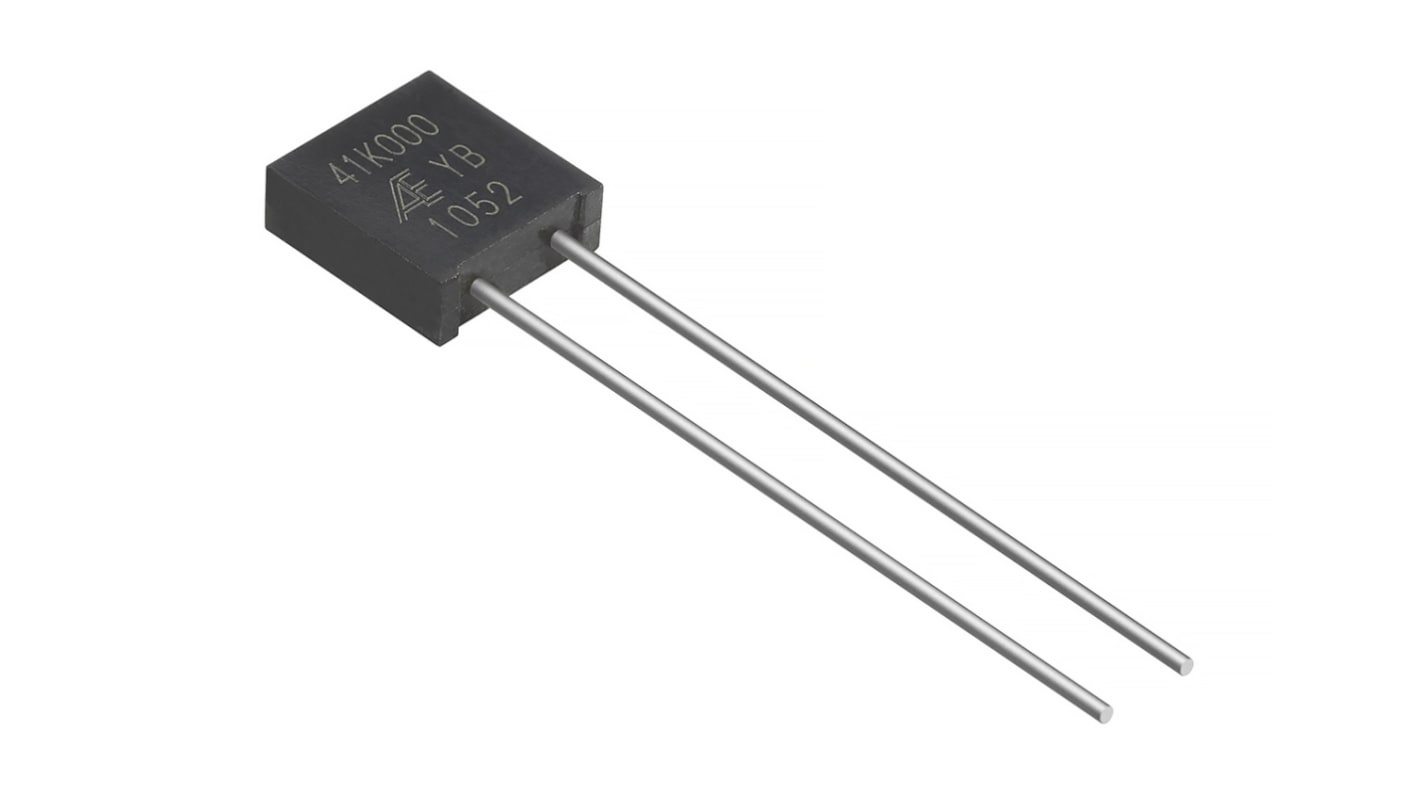

Alpha 1kΩ Metal Foil Resistor 0.3W ±0.01% MAY1K0000T
- RS Stock No.:
- 158-0272
- Mfr. Part No.:
- MAY1K0000T
- Brand:
- Alpha
Save 21% when you buy 20 units
Subtotal (1 unit)*
£19.10
(exc. VAT)
£22.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 10 unit(s) shipping from 01 October 2025
- Plus 4 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £19.10 |
5 - 19 | £15.96 |
20 + | £14.99 |
*price indicative
- RS Stock No.:
- 158-0272
- Mfr. Part No.:
- MAY1K0000T
- Brand:
- Alpha
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha | |
Resistance | 1kΩ | |
Power Rating | 0.3W | |
Tolerance | ±0.01% | |
Technology | Metal Foil | |
Series | MA | |
Temperature Coefficient | 0±2.5ppm/°C | |
Maximum Operating Temperature | +175°C | |
Minimum Operating Temperature | -65°C | |
Lead Pitch | 3.81mm | |
Select all | ||
---|---|---|
Brand Alpha | ||
Resistance 1kΩ | ||
Power Rating 0.3W | ||
Tolerance ±0.01% | ||
Technology Metal Foil | ||
Series MA | ||
Temperature Coefficient 0±2.5ppm/°C | ||
Maximum Operating Temperature +175°C | ||
Minimum Operating Temperature -65°C | ||
Lead Pitch 3.81mm | ||
- COO (Country of Origin):
- JP
Metal foil resistors and current sensors are used in applications requiring a high degree of precision and stability, such as in medical testing equipment, high performance audio equipment, precision measuring instruments, aerospace, and military applications. The resistance stability of Bulk Metal Foil resistors against changes in temperature and over time makes them excellent metrological standard resistors.
