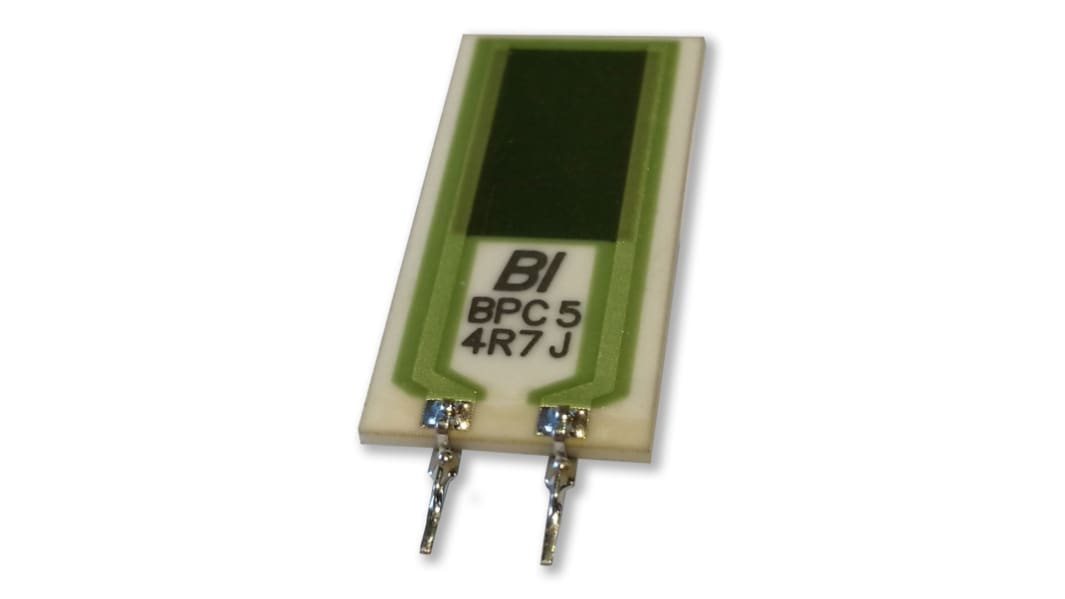

TT ElectronicsBI 4.7Ω Thick Film Resistor 5W ±5% BPC5 4R7J
- RS Stock No.:
- 144-6012
- Mfr. Part No.:
- BPC5 4R7J
- Brand:
- TT Electronics/BI
Bulk discount available
Subtotal (1 tray of 50 units)*
£105.80
(exc. VAT)
£126.95
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 400 unit(s), ready to ship
Units | Per unit | Per Tray* |
---|---|---|
50 - 200 | £2.116 | £105.80 |
250 + | £2.063 | £103.15 |
*price indicative
- RS Stock No.:
- 144-6012
- Mfr. Part No.:
- BPC5 4R7J
- Brand:
- TT Electronics/BI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TT Electronics/BI | |
Resistance | 4.7Ω | |
Power Rating | 5W | |
Tolerance | ±5% | |
Technology | Thick Film | |
Series | BPC5 | |
Temperature Coefficient | ±100ppm/°C | |
Maximum Operating Temperature | +155°C | |
Lead Pitch | 5.08mm | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand TT Electronics/BI | ||
Resistance 4.7Ω | ||
Power Rating 5W | ||
Tolerance ±5% | ||
Technology Thick Film | ||
Series BPC5 | ||
Temperature Coefficient ±100ppm/°C | ||
Maximum Operating Temperature +155°C | ||
Lead Pitch 5.08mm | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- GB
Thick-film on ceramic offers a highly compact resistor technology for surge and overload applications. This Application Note illustrates some of the many applications, which range from PSU inrush suppression to high voltage laser supply current limiting, and the TT electronics products which meet their high surge requirements.
Non-Inductive planar package
High power density.
Thin package for high density PCB installation.
Power dissipated above the board
High power density.
Thin package for high density PCB installation.
Power dissipated above the board
