Schneider Electric Thermostat, 140 °F Max Heating Function, Automatic Reset, 1 NO, DIN Rail
- RS Stock No.:
- 276-1732
- Mfr. Part No.:
- NSYCCOTHCF
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£31.21
(exc. VAT)
£37.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.21 |
*price indicative
- RS Stock No.:
- 276-1732
- Mfr. Part No.:
- NSYCCOTHCF
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Thermostat | |
| Minimum Operating Temperature | 32°F | |
| Maximum Operating Temperature | 140°F | |
| Contact Configuration | 1 NO | |
| Contact AC Voltage | 250V ac | |
| Terminal Type | Clamp | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL | |
| Series | ClimaSys | |
| Mount Type | DIN Rail | |
| Reset Type | Automatic | |
| Switch Function | Heating Function | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Thermostat | ||
Minimum Operating Temperature 32°F | ||
Maximum Operating Temperature 140°F | ||
Contact Configuration 1 NO | ||
Contact AC Voltage 250V ac | ||
Terminal Type Clamp | ||
Hazardous Area Certification No | ||
Standards/Approvals UL | ||
Series ClimaSys | ||
Mount Type DIN Rail | ||
Reset Type Automatic | ||
Switch Function Heating Function | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

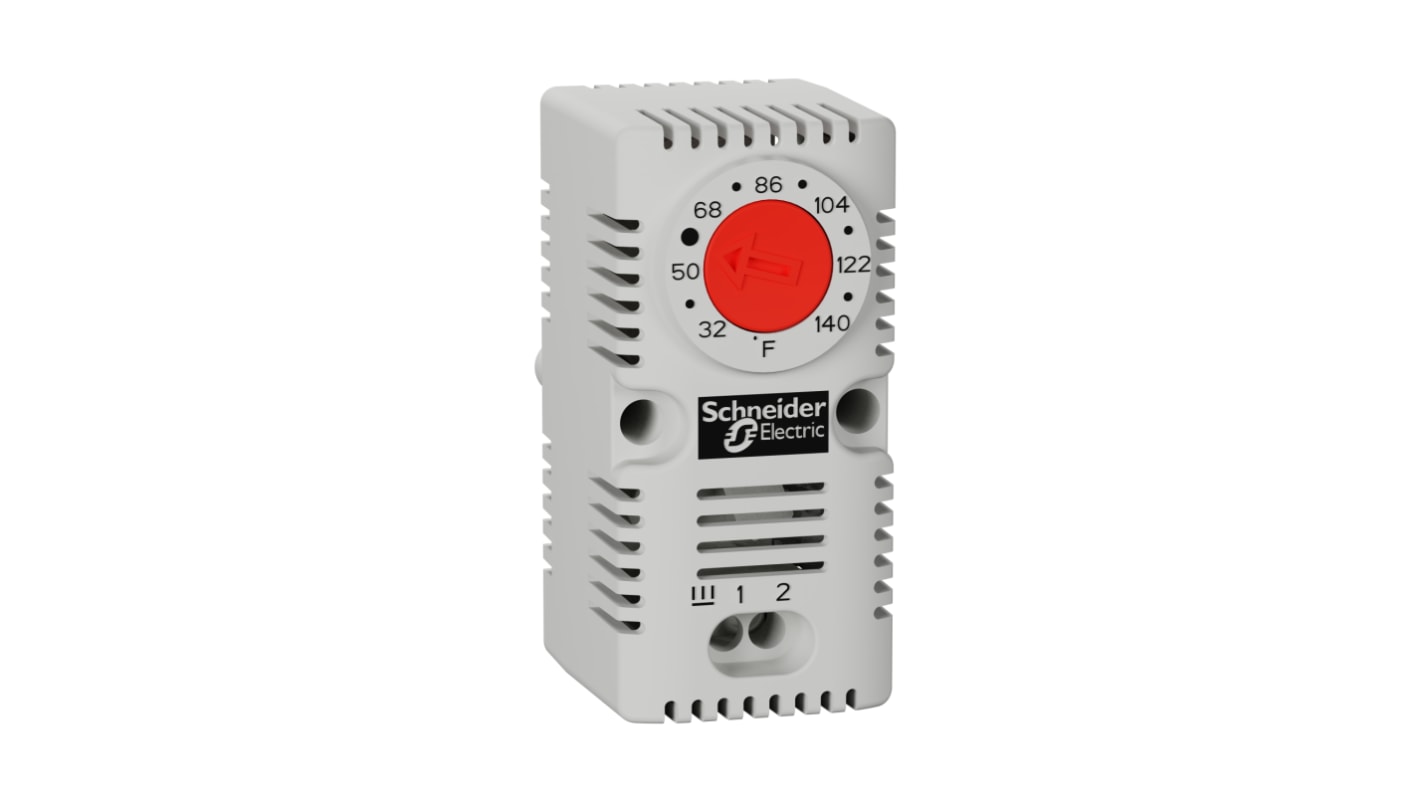

The Schneider Electric Simple Thermostat offers precise temperature control within the range of 0 to 60 degree Celsius and displays temperature information in Fahrenheit. It is equipped with a bimetal sensor and features a normally closed contact composition. With a robust design, this thermostat ensures a long service life of up to 100,000 cycles. The device has a versatile mounting capability, making it suitable for various installation scenarios, including mounting on a plate, 35 mm DIN rail, cross rails, or a Spacial upright.
Mercury free
RoHS compliance
Green Premium product
IP20 degree of protection
